BR05 Chuck with Blank DN
Image may not correspond to reality
  • BR05 Chuck with Blank DN

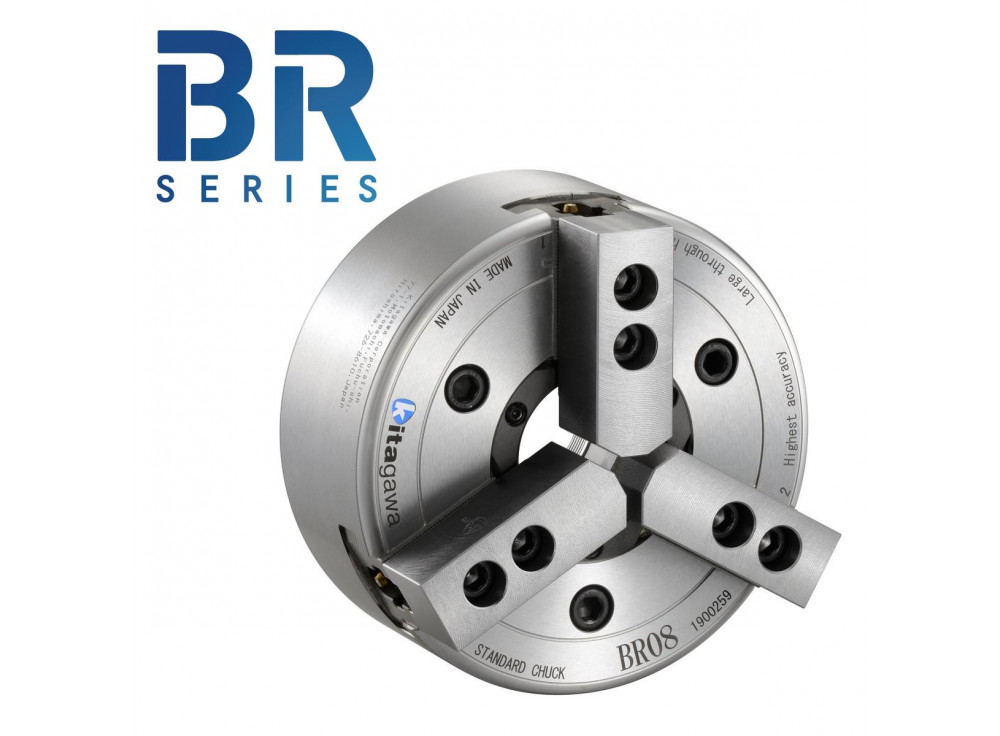

BR05 Chuck with Blank DN

5" (135mm), 3 jaws, 110mm recess, Bore 33mm
BR05
Kitagawa Europe
€2,343.30

€2,343.30 tax incl.

Shipping price and delivery time on request
Please contact us by email at eshop@toolbox.sk
in stock at the supplier

Description

Parameter BR05 BR06 BR08 BR10 BR12
Bore Diameter (mm) 33 53 66 81 106
Clamping Range - Max. (mm) 135 170 210 254 315
Clamping Range - Min. (mm) 7 16 22 31 44
Jaw Stroke (diameter) (mm) 5.4 5.5 7.4 8.8 10.6
Piston Stroke (mm) 10 12 16 19 23
Max. Actuating Force - OD Clamping (kN) 16.6 23 35 49 60
Max. Actuating Force - ID Clamping (kN) 8.3 11.5 17.5 24.5 30
Max. Static Clamping Force - OD Clamping (kN) 36 58.5 90 123 156
Max. Static Clamping Force - ID Clamping (kN) 18 29.3 45 61.5 78
Max. Speed (min⁻¹) 8000 6000 5000 4500 3500
Dynamic Clamping Force at Max. Speed - OD Clamping (kN) 15.5 22.5 36 44 53
Moment of Inertia (kg·m²) 0.015 0.052 0.14 0.32 0.80
Net Weight (kg) (with soft jaws) 6.2 12.8 22.2 35.8 57.0
Compatible Cylinder F0933H SR1453C, SS1453K SR1566C, SS1666K SR1781C, SS1881K SS2110K
Compatible Soft Jaws Standard, Extra High, Small Diameter
Compatible Hard Jaws HB04N1 HB06A1, HB06B1 HB08B1, HB08N1 HB10AA1 HB12N1
Tnut-Plus (Optional) TN05PLUS TN06PLUS TN08PLUS TN10PLUS TN12PLUS
