C5-LC2050-53040M
Image may not correspond to reality
  • C5-LC2050-53040M
  • C5-LC2050-53040M

C5-LC2050-53040M

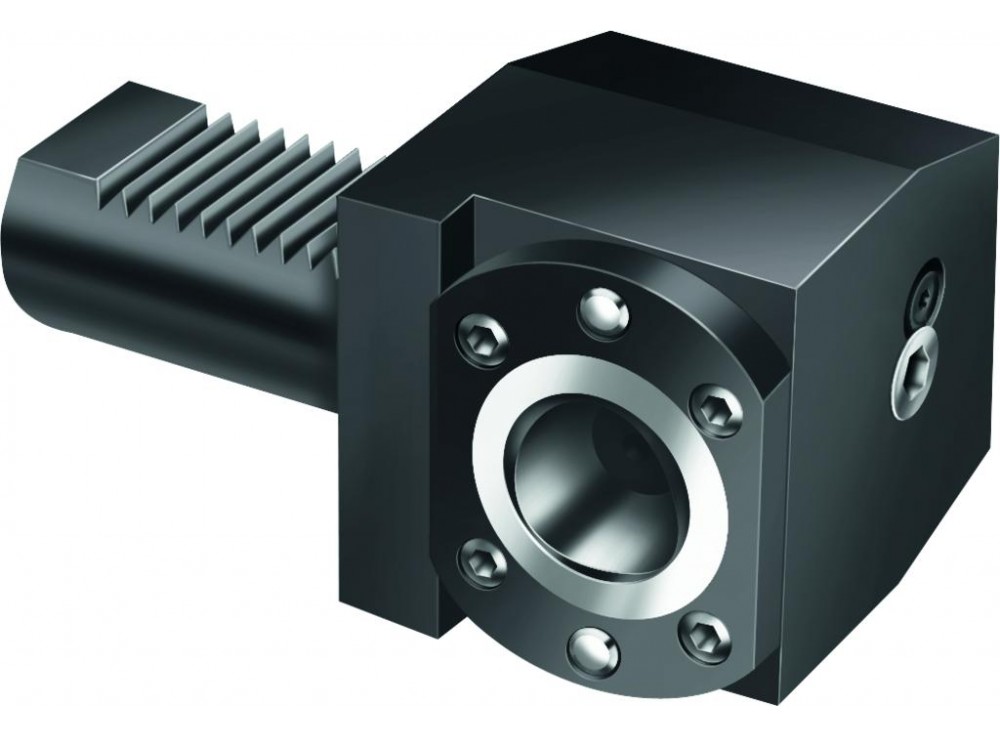

VDI DIN 69880 clamping units TYP 2030 / 2040 / 2050 / 2060
C5-LC2050-53040M
Walter AG
€1,384.25

€1,384.25 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

VDI DIN 69880 clamping units TYP 2030 / 2040 / 2050 / 2060 • VDI DIN 69880 • metric • Left • C5

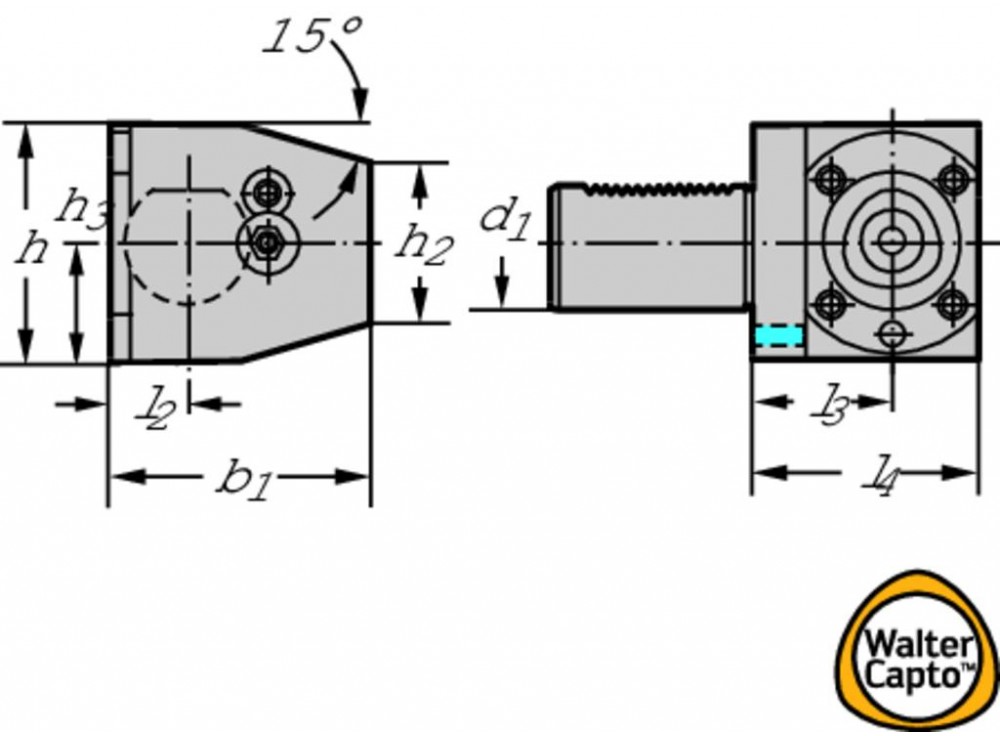

Product Details

Size
C5
Projection length [l 2]
40 mm
Width [b 1]
99 mm
Height [h]
86 mm
Useable length [l 3]
53 mm
Height [h 2]
65 mm
Functional length [l 4]
85 mm
Height [h 3]
43 mm
Connection size code [d 1]
VDI50
Weight
6.038 kg
