TC685-M16-A1D-WB10RC

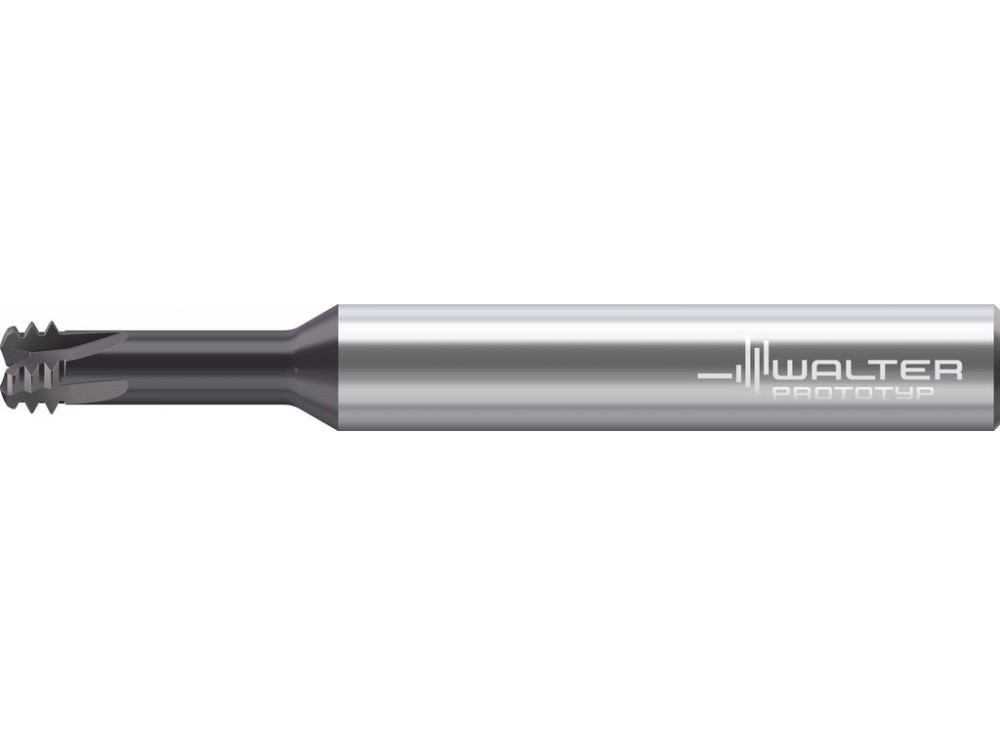

Orbital thread mill drill

Supreme

TC685-M16-A1D-WB10RC
4042446297794
Walter AG
€319.02

€319.02 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Orbital drill thread milling cutters for hardened materials
  • Chamfer, core hole and thread in one operation

Orbital thread mill drill TC685 • Supreme • M60 • WB10RC • ≤2xD • DIN 6535 HA shank • coolant exit style code: axial concentric exit • P=2mm • Dc=11,2mm

Product Details

Main application
ISO H
Additional application
ISO K
ISO P
ISO S

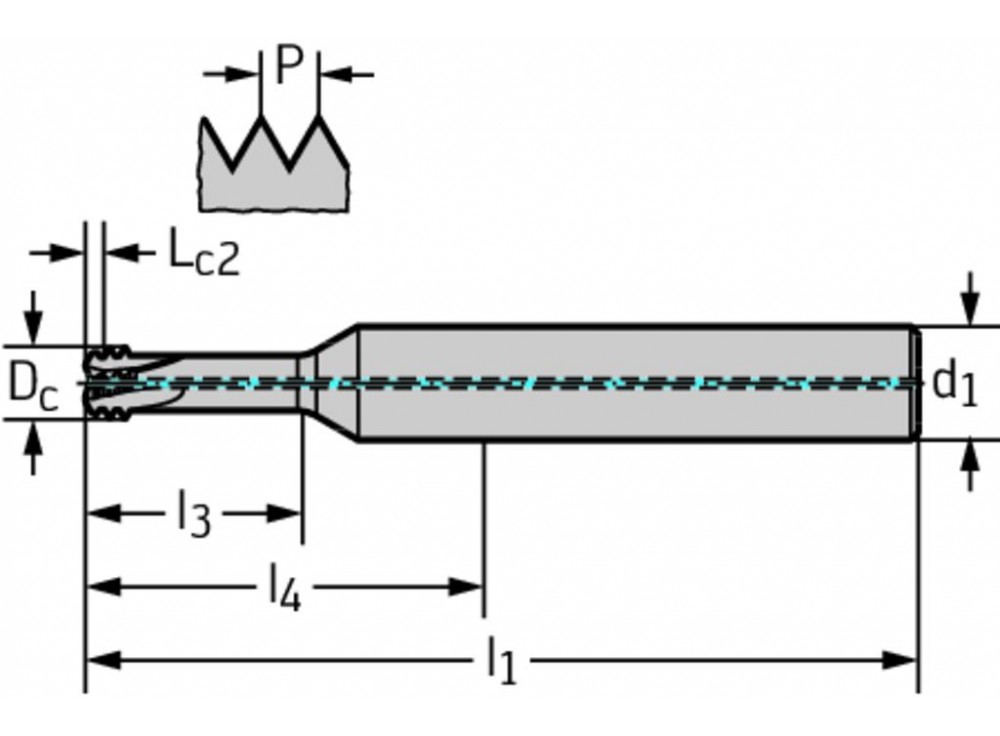

Thread size [D N]
M 16
Thread pitch [P]
2 mm
Cutting edge diameter [D c]
12,5 mm
Shank diameter length [L c2]
2,28 mm
Overall length [l 1]
92 mm
Useable length [l 3]
35 mm
Functional length [l 4]
44 mm
Connection diameter [d 1]
16 mm
Number of teeth [Z]
4
Weight
0.208 kg
