TC610-UNF10-W0-WJ30RC
Image may not correspond to reality
  • TC610-UNF10-W0-WJ30RC
  • TC610-UNF10-W0-WJ30RC

TC610-UNF10-W0-WJ30RC

Solid carbide thread milling cutters

Supreme

TC610-UNF10-W0-WJ30RC
4042446256869
Walter AG
€155.22

€155.22 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Universal thread milling cutters

Solid carbide thread milling cutters TC610 • Supreme • UN60 • WJ30RC • ≤1,5xD • DIN 6535 HB shank • threads per inch=32 • Dc=3,6mm

Product Details

Main application
ISO K
ISO M
ISO N
ISO P
ISO S
Additional application
ISO O

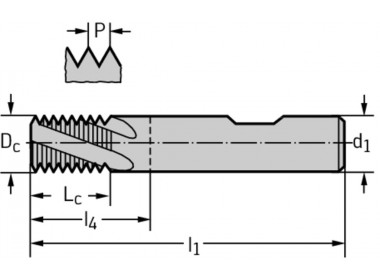

Thread size [D N]
UNF #10-32
Thread pitch [P]
32 ThreadPerInch
Cutting edge diameter [D c]
0,142 inch
Cutting edge length [L c]
0,313 inch
Overall length [l 1]
2,244 inch
Functional length [l 4]
0,827 inch
Connection diameter [d 1]
0,236 inch
Number of teeth [Z]
3
Weight
0.022 kg
