TC420.UNC1/4-C2-WW60AD
Image may not correspond to reality
  • TC420.UNC1/4-C2-WW60AD
  • TC420.UNC1/4-C2-WW60AD

TC420.UNC1/4-C2-WW60AD

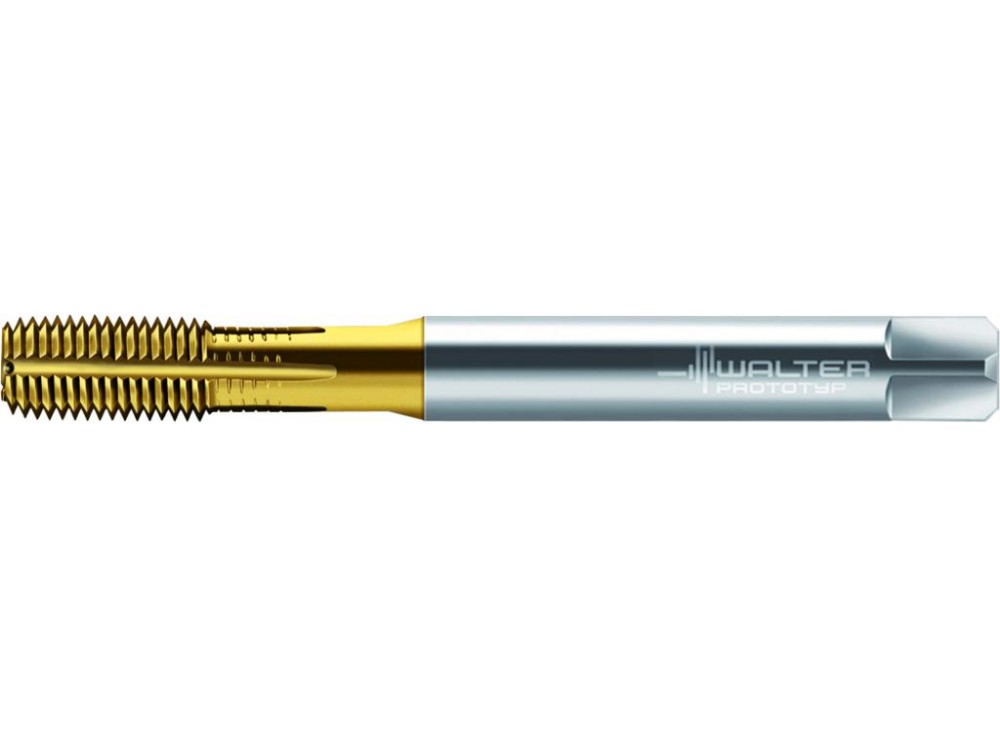

HSS-E-PM machine thread formers TC420

Supreme

TC420.UNC1/4-C2-WW60AD
4042446300913
Walter AG
€78.78

€78.78 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Universal high-performance form tap
  • With lubrication grooves

HSS-E-PM machine thread formers TC420 • Supreme • ≤3,5xD • UNC/2BX • DIN/ANSI° • Suitable for blind hole • Suitable for through hole • WW60AD • UNC 1/4-20 • P=20

Product Details

Main application
ISO N
ISO P
Additional application
ISO K
ISO M
ISO S

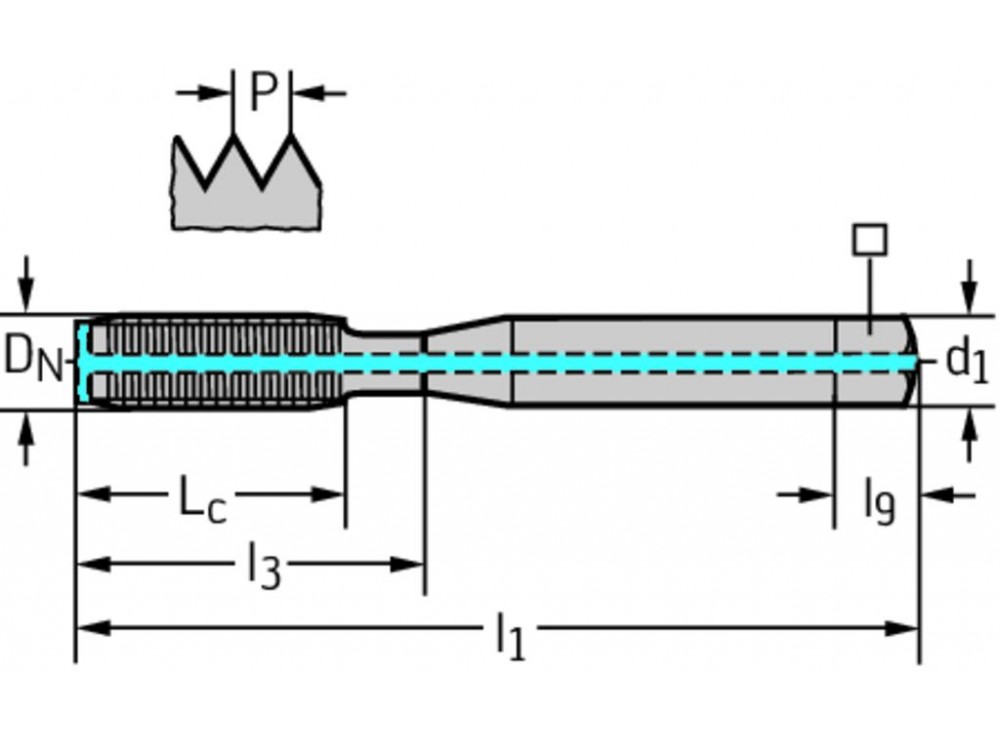

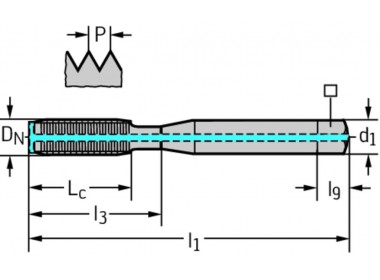

Thread size [DNN-P]
UNC 1/4-20
Thread size [D N]
0,25 inch
Functional length [l 1]
3,15 inch
Cutting edge length [L c]
0,394 inch
Clamping width
0,191 inch
Useable length [l 3]
1,181 inch
Driving square length [l 9]
0,313 inch
Number of grooves [N]
5
Connection diameter [d 1]
0,255 inch
Weight
0.018 kg
