TC410-UNF1/2-L6-WY80AD
Image may not correspond to reality
  • TC410-UNF1/2-L6-WY80AD
  • TC410-UNF1/2-L6-WY80AD

TC410-UNF1/2-L6-WY80AD

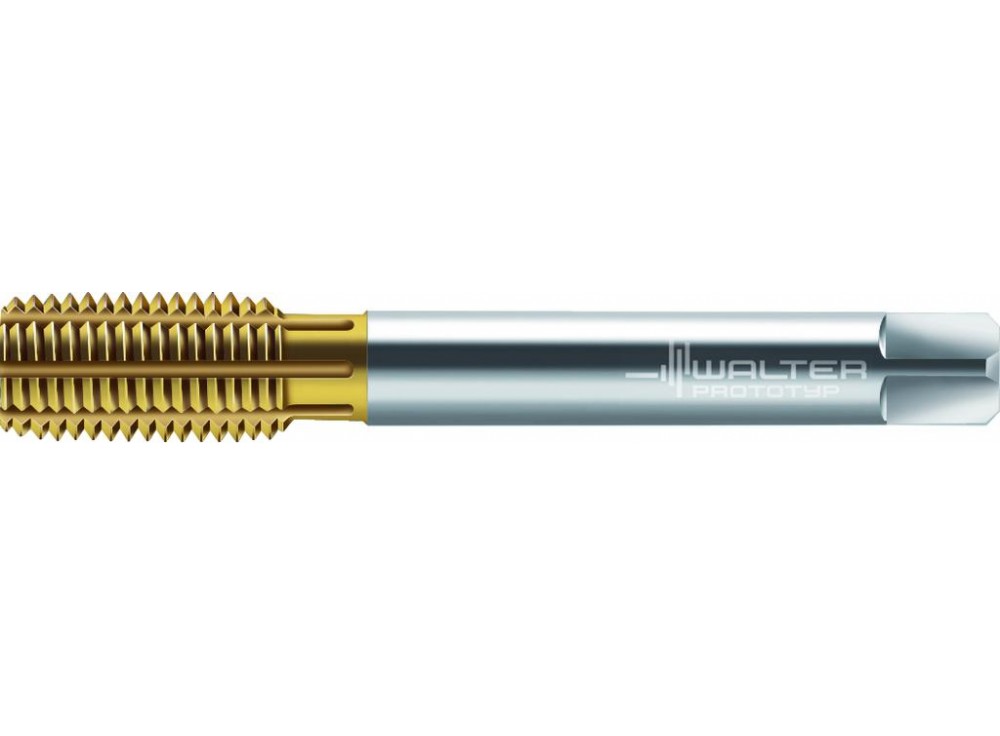

HSS-E machine thread formers

Advance

TC410-UNF1/2-L6-WY80AD
4042446290603
Walter AG
€99.06

€99.06 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E machine thread formers TC410 • Advance • ≤3,5xD • UNF/2BX • DIN 2184-1° • Suitable for blind hole • Suitable for through hole • WY80AD • UNF 1/2-20 • P=20

Product Details

Main application
ISO M
ISO N
ISO P
Additional application
ISO K
ISO S

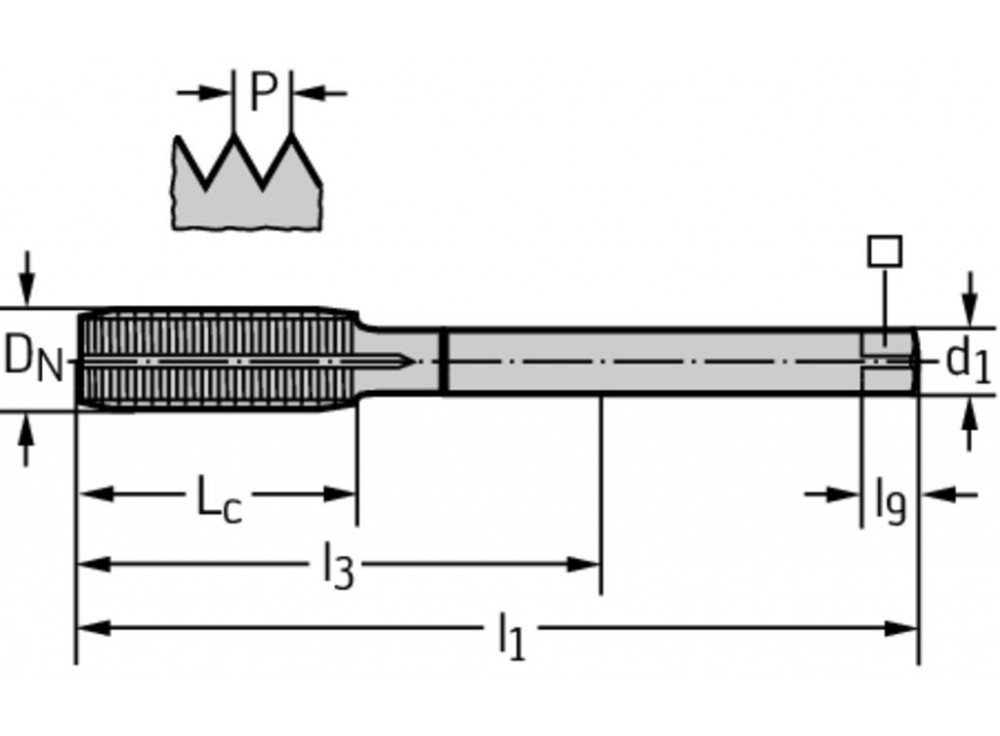

Thread size [DNN-P]
UNF 1/2-20
Thread size [D N]
12,7 mm
Functional length [l 1]
100 mm
Cutting edge length [L c]
21 mm
Clamping width
7 mm
Useable length [l 3]
73 mm
Driving square length [l 9]
10 mm
Number of grooves [N]
6
Connection diameter [d 1]
9 mm
Weight
0.062 kg
