TC410.UNF10-C6-WY80AD
Image may not correspond to reality
  • TC410.UNF10-C6-WY80AD
  • TC410.UNF10-C6-WY80AD

TC410.UNF10-C6-WY80AD

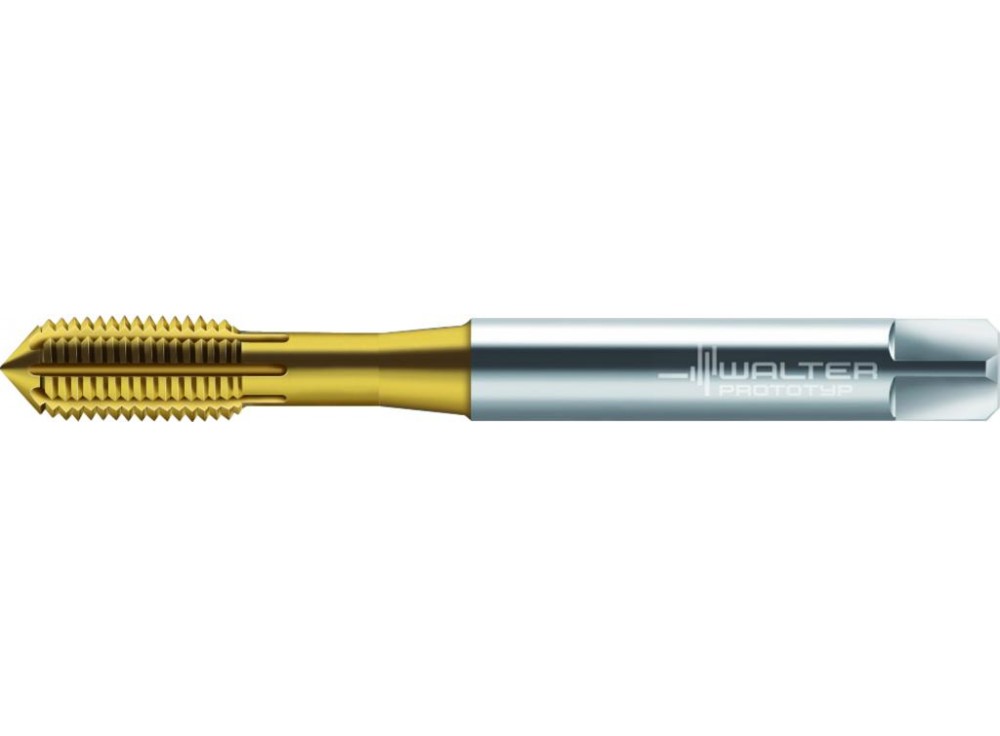

HSS-E machine thread formers TC410

Advance

TC410.UNF10-C6-WY80AD
4042446290894
Walter AG
€48.28

€48.28 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Universal form tap
  • With lubrication grooves

HSS-E machine thread formers TC410 • Advance • ≤3,5xD • UNF/2BX • DIN/ANSI° • Suitable for blind hole • Suitable for through hole • WY80AD • UNF #10-32 • P=32

Product Details

Main application
ISO M
ISO N
ISO P
Additional application
ISO K
ISO S

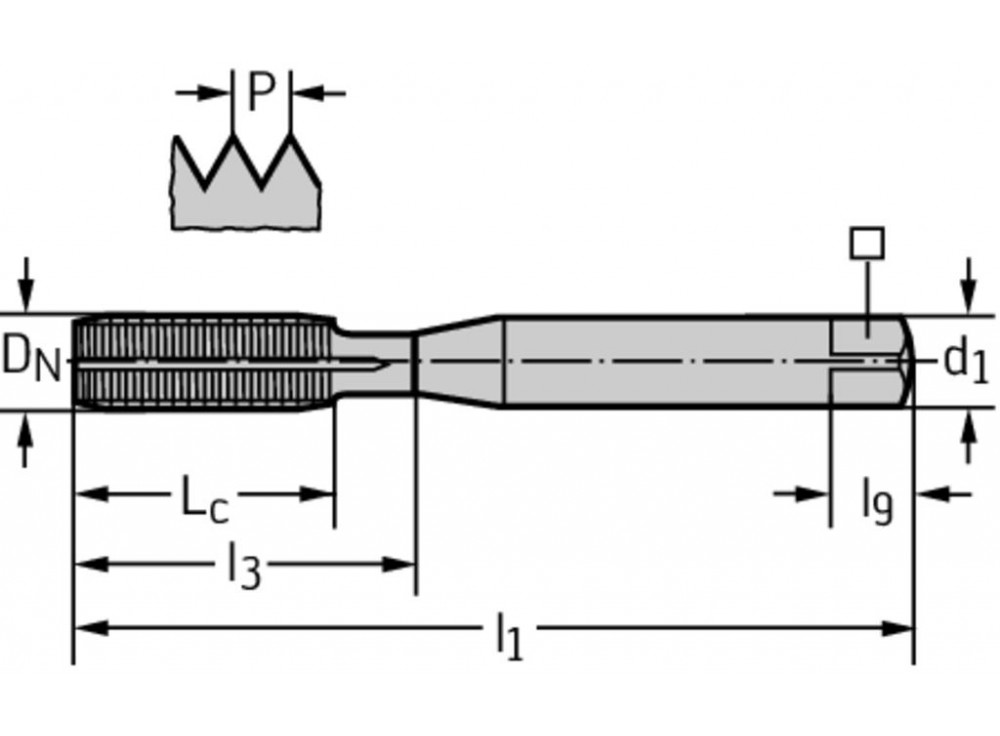

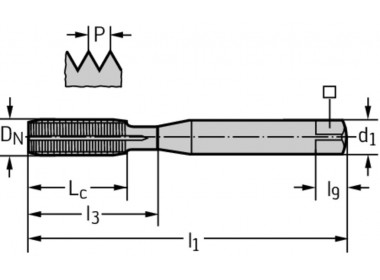

Thread size [DNN-P]
UNF #10-32
Thread size [D N]
0,19 inch
Functional length [l 1]
2,756 inch
Cutting edge length [L c]
0,709 inch
Clamping width
0,152 inch
Useable length [l 3]
0,984 inch
Driving square length [l 9]
0,25 inch
Number of grooves [N]
5
Connection diameter [d 1]
0,194 inch
Weight
0.011 kg
