TC122-M16-L1-WW60BC
Image may not correspond to reality
  • TC122-M16-L1-WW60BC
  • TC122-M16-L1-WW60BC

TC122-M16-L1-WW60BC

HSS-E PM machine taps

Supreme

TC122-M16-L1-WW60BC
4042446283476
Walter AG
€184.45

€184.45 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E PM machine taps TC122 • Supreme • ≤2,5xD • M/6HX • DIN 376 • right hand flute 15° • Suitable for blind hole • WW60BC • M 16 • P=2mm

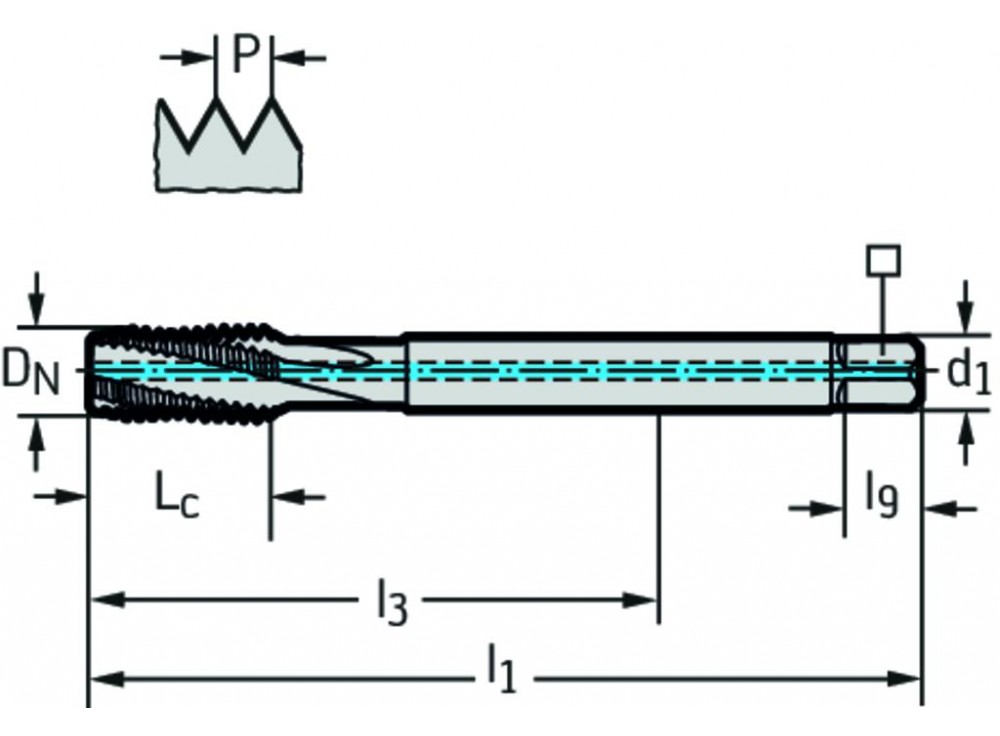

Product Details

Main application
ISO P
Additional application
ISO K
Thread size [D N]
M 16
Thread pitch [P]
2 mm
Functional length [l 1]
110 mm
Cutting edge length [L c]
25 mm
Clamping width
9 mm
Useable length [l 3]
68 mm
Driving square length [l 9]
12 mm
Number of grooves [N]
4
Connection diameter [d 1]
12 mm
Weight
0.093 kg
