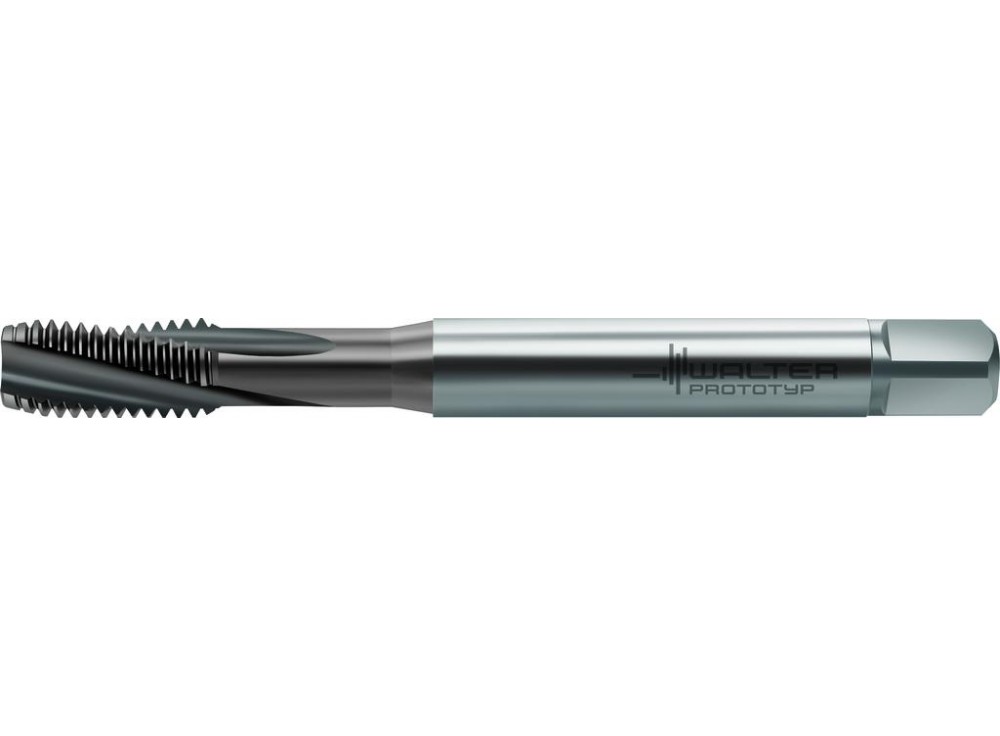

TC122-M5-C0-WW60BC
Image may not correspond to reality
  • TC122-M5-C0-WW60BC
  • TC122-M5-C0-WW60BC

TC122-M5-C0-WW60BC

HSS-E PM machine taps

Supreme

TC122-M5-C0-WW60BC
4042446283339
Walter AG
€49.35

€49.35 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E PM machine taps TC122 • Supreme • ≤1,5xD • M/6HX • DIN 371 • right hand flute 15° • Suitable for blind hole • WW60BC • M 5 • P=0,8mm

Product Details

Main application
ISO P
Additional application
ISO K

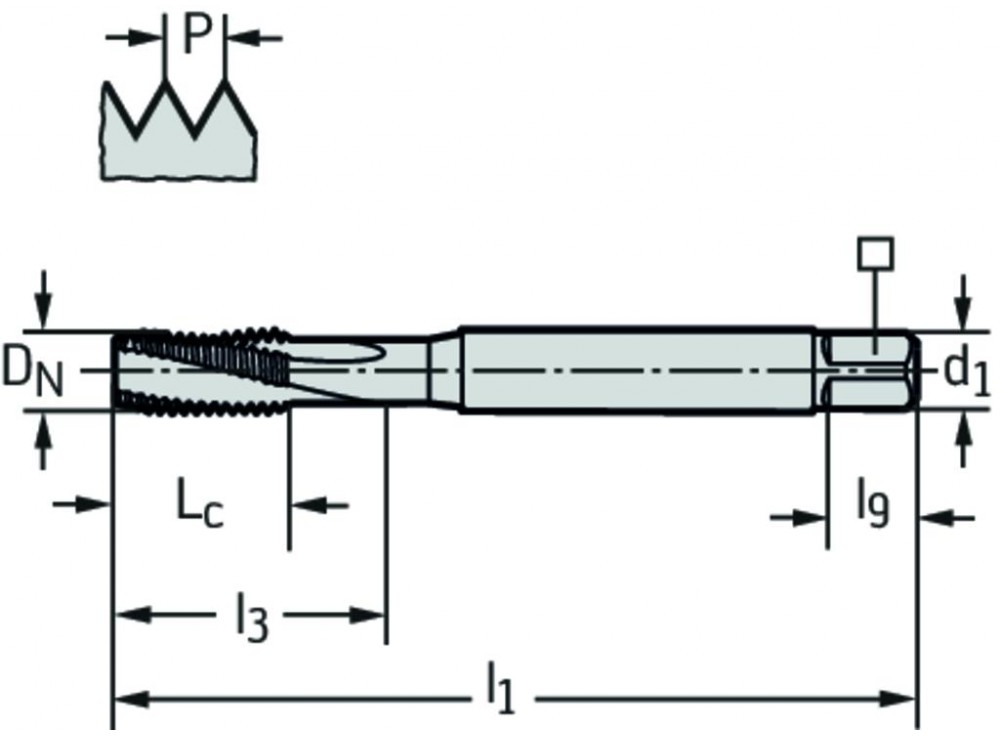

Thread size [D N]
M 5
Thread pitch [P]
0,8 mm
Functional length [l 1]
70 mm
Cutting edge length [L c]
16 mm
Clamping width
4,9 mm
Useable length [l 3]
16 mm
Driving square length [l 9]
8 mm
Number of grooves [N]
3
Connection diameter [d 1]
6 mm
Weight
0.015 kg
