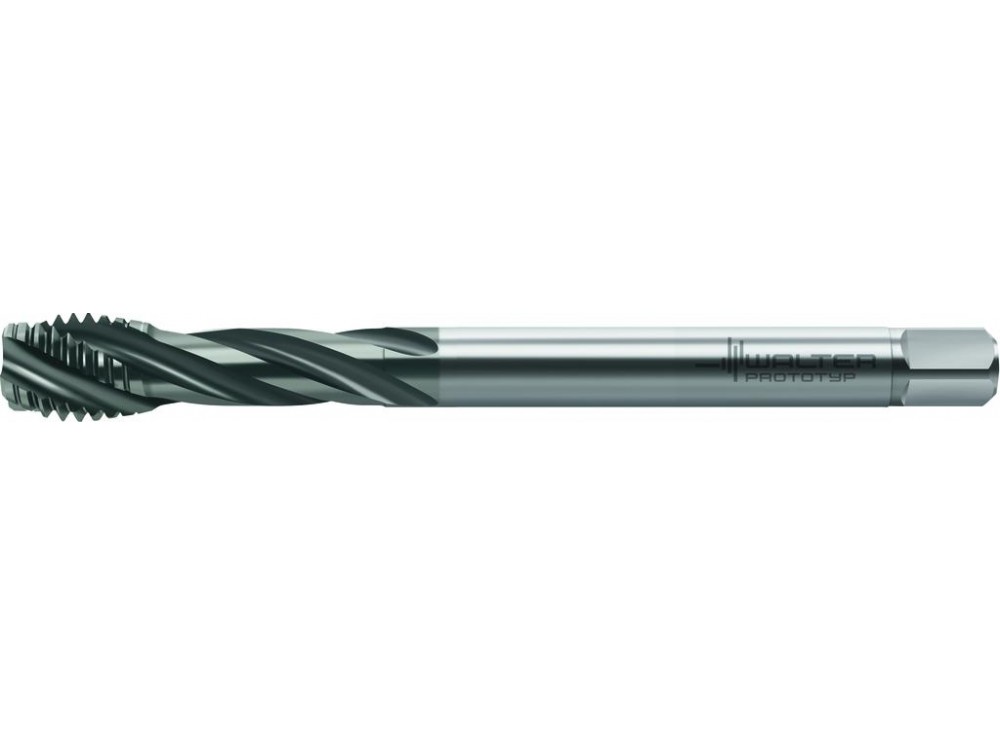

TC121-M12-L0-WW60RG
Image may not correspond to reality
  • TC121-M12-L0-WW60RG
  • TC121-M12-L0-WW60RG

TC121-M12-L0-WW60RG

HSS-E (-PM) machine taps

Supreme

TC121-M12-L0-WW60RG
4042446280390
Walter AG
€103.84

€103.84 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • WW60RG = HSS-E-PM + TiALN
  • WY80BD = HSS-E + TiCN

HSS-E (-PM) machine taps TC121 • Supreme • ≤2,5xD • M/6HX • DIN 376 • right hand flute 40° • Suitable for blind hole • WW60RG • M 12 • P=1,75mm

Product Details

Main application
ISO P
Additional application
ISO K
ISO M
ISO N

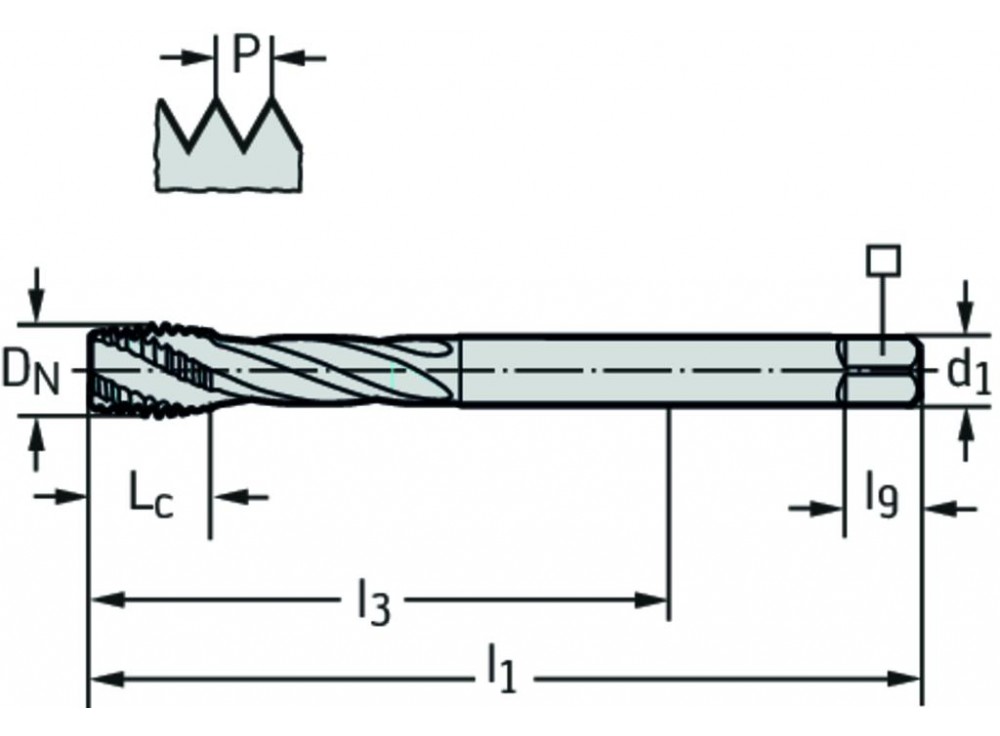

Thread size [D N]
M 12
Thread pitch [P]
1,75 mm
Functional length [l 1]
110 mm
Cutting edge length [L c]
16 mm
Clamping width
7 mm
Useable length [l 3]
83 mm
Driving square length [l 9]
10 mm
Number of grooves [N]
4
Connection diameter [d 1]
9 mm
Weight
0.057 kg
