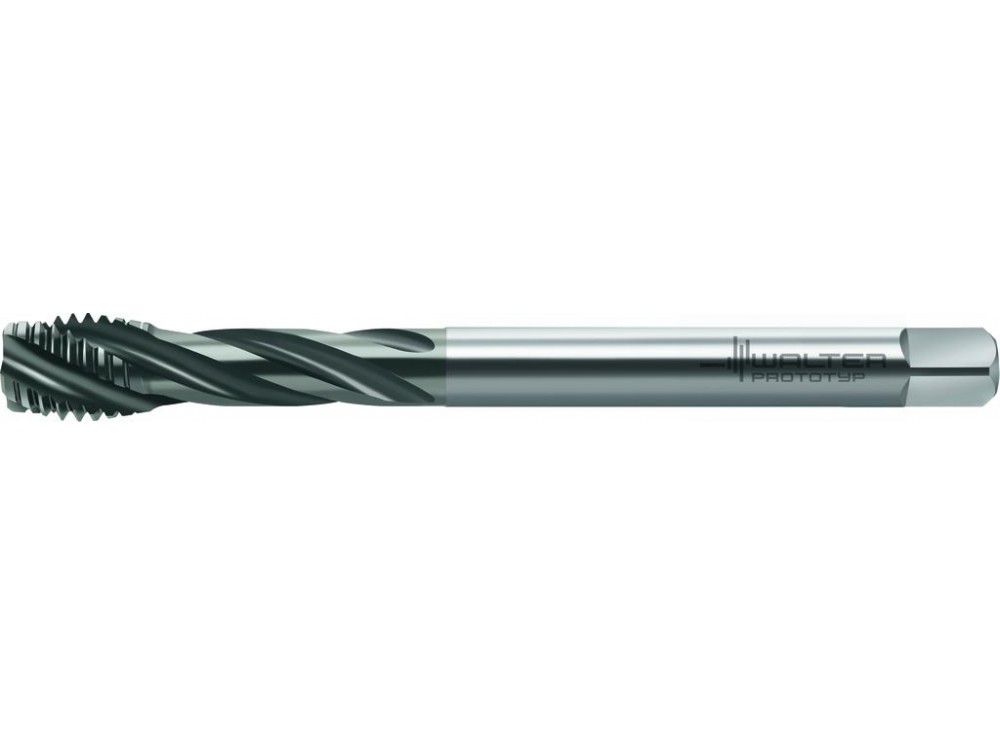

TC121-M14-L1-WW60RG
Image may not correspond to reality
  • TC121-M14-L1-WW60RG
  • TC121-M14-L1-WW60RG

TC121-M14-L1-WW60RG

HSS-E (-PM) machine taps

Supreme

TC121-M14-L1-WW60RG
4042446280598
Walter AG
€153.76

€153.76 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E (-PM) machine taps TC121 • Supreme • ≤2,5xD • M/6HX • DIN 376 • right hand flute 40° • Suitable for blind hole • WW60RG • M 14 • P=2mm

Product Details

Main application
ISO P
Additional application
ISO K
ISO M
ISO N

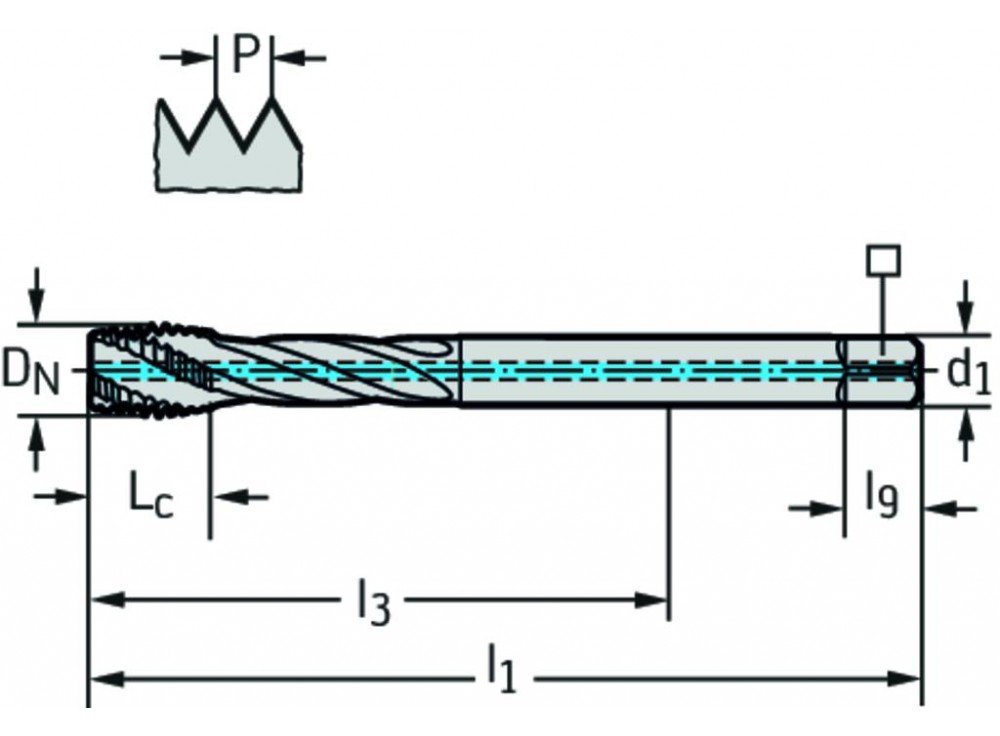

Thread size [D N]
M 14
Thread pitch [P]
2 mm
Functional length [l 1]
110 mm
Cutting edge length [L c]
20 mm
Clamping width
9 mm
Useable length [l 3]
81 mm
Driving square length [l 9]
12 mm
Number of grooves [N]
4
Connection diameter [d 1]
11 mm
Weight
0.071 kg
