TC121-M6-C1-WW60RG
Image may not correspond to reality
  • TC121-M6-C1-WW60RG
  • TC121-M6-C1-WW60RG

TC121-M6-C1-WW60RG

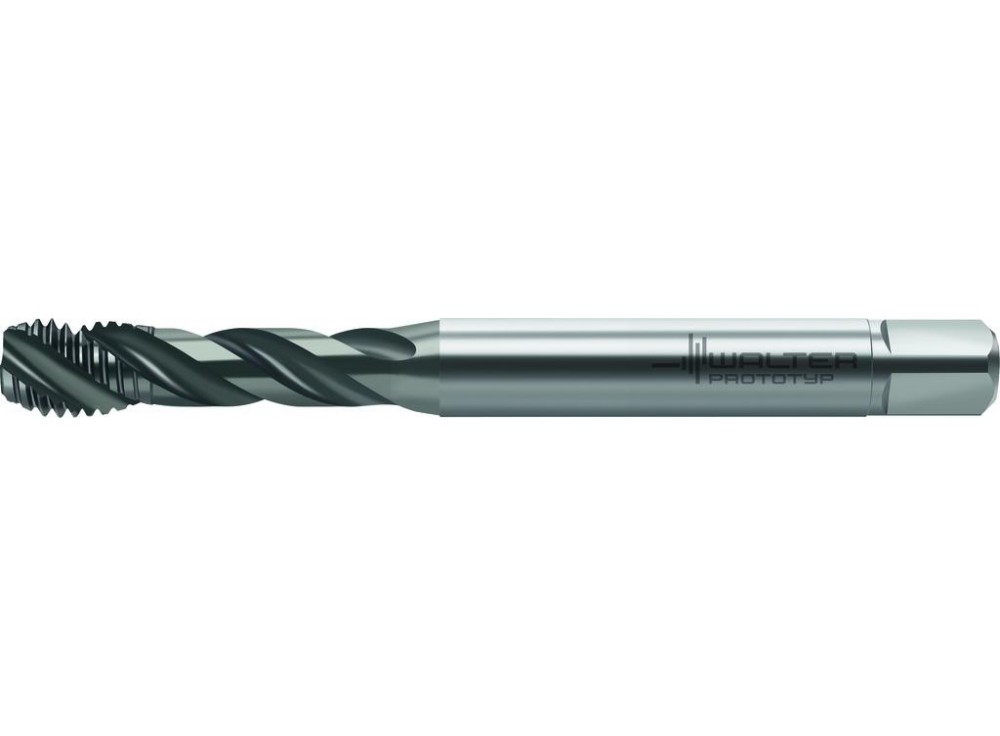

HSS-E (-PM) machine taps

Supreme

TC121-M6-C1-WW60RG
4042446280550
Walter AG
€73.34

€73.34 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E (-PM) machine taps TC121 • Supreme • ≤2,5xD • M/6HX • DIN 371 • right hand flute 40° • Suitable for blind hole • WW60RG • M 6 • P=1mm

Product Details

Main application
ISO P
Additional application
ISO K
ISO M
ISO N

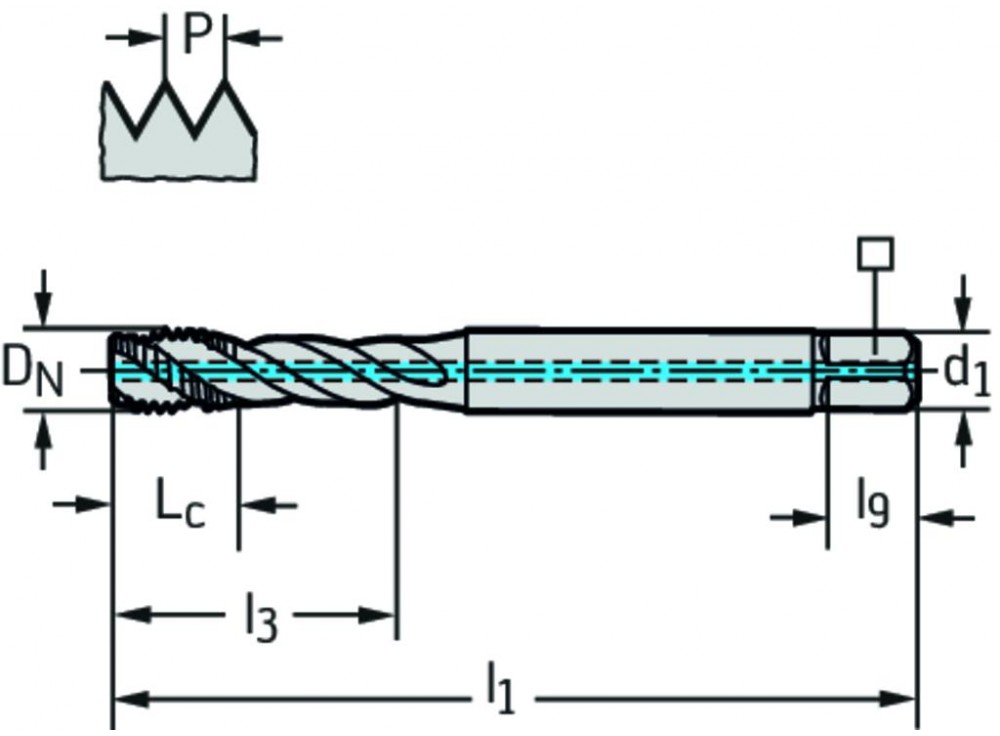

Thread size [D N]
M 6
Thread pitch [P]
1 mm
Functional length [l 1]
80 mm
Cutting edge length [L c]
10 mm
Clamping width
4,9 mm
Useable length [l 3]
25 mm
Driving square length [l 9]
8 mm
Number of grooves [N]
3
Connection diameter [d 1]
6 mm
Weight
0.017 kg
