A320M.0.63.180.48
Image may not correspond to reality
  • A320M.0.63.180.48
  • A320M.0.63.180.48

A320M.0.63.180.48

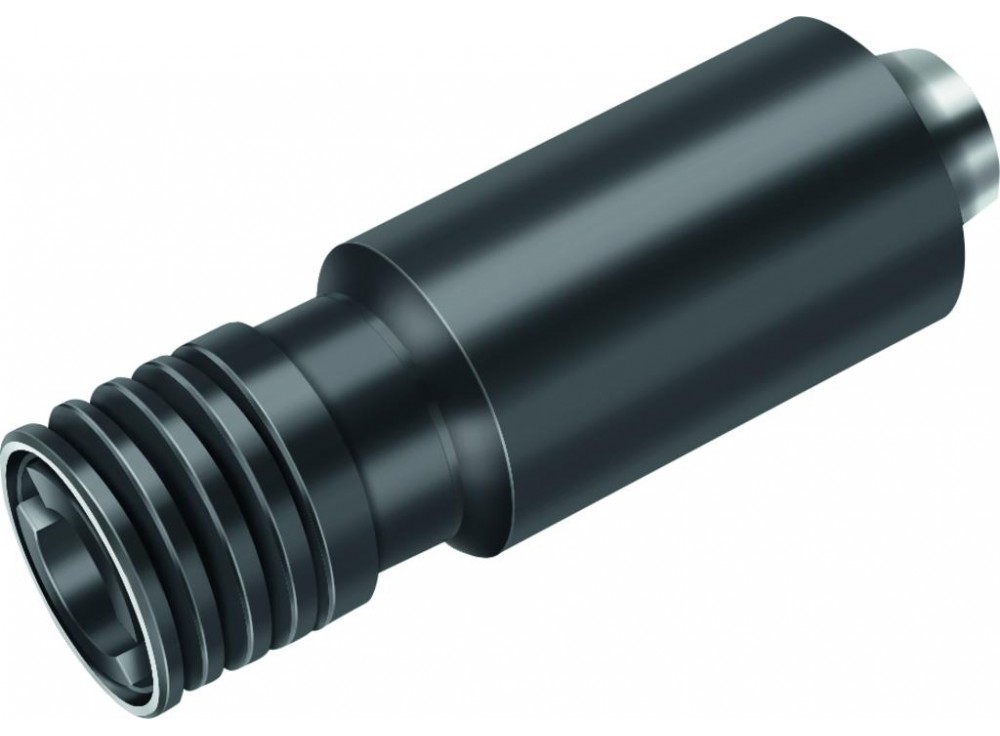

Tap quick-change chuck A320M
A320M.0.63.180.48
Walter AG
€1,126.12

€1,126.12 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • With elastic length compensation for compression and extension

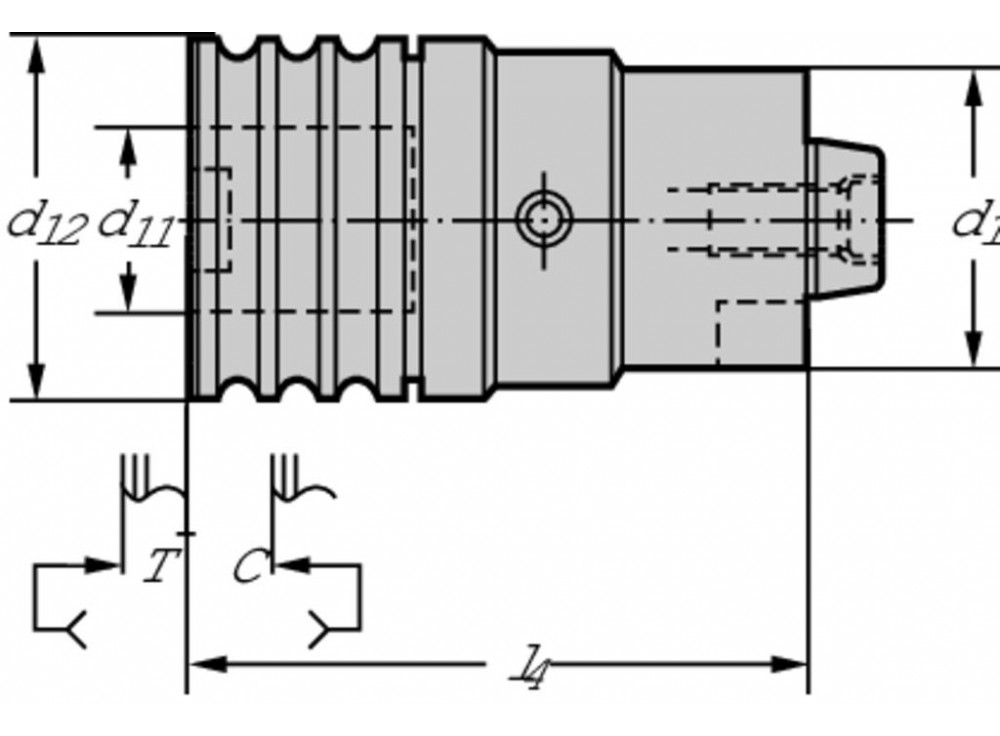

Tap quick-change chuck A320M • metric • d1=63mm • d11=48mm • for thread diameter size=M14-M33

Product Details

Connection diameter [d 11]
48 mm
Body diameter [d 12]
78 mm
Length adjustment C
20
Length adjustment T
20
Collet size
4
For taps
M14-M33
Maximum projection length [l 4]
180 mm
Connection size code [d 1]
NCT 63
Weight
4.43 kg
