A320M.0.50.136.31
Image may not correspond to reality
  • A320M.0.50.136.31
  • A320M.0.50.136.31

A320M.0.50.136.31

Tap quick-change chuck A320M
A320M.0.50.136.31
Walter AG
€912.62

€912.62 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • With elastic length compensation for compression and extension

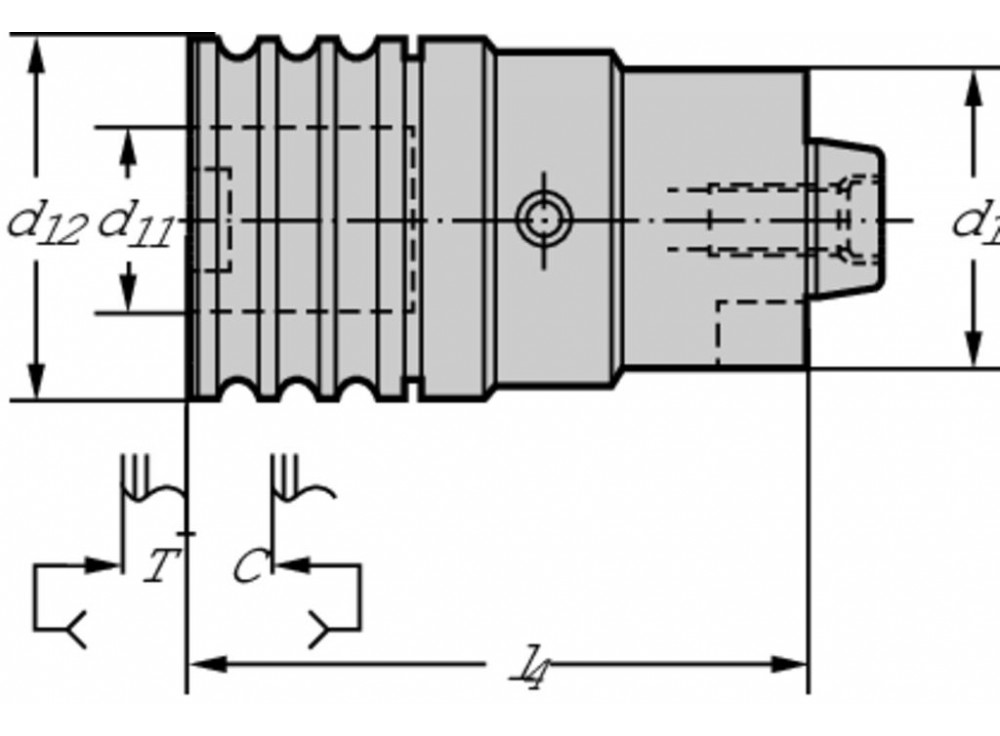

Tap quick-change chuck A320M • metric • d1=50mm • d11=31mm • for thread diameter size=M8-M20

Product Details

Connection diameter [d 11]
31 mm
Body diameter [d 12]
53 mm
Length adjustment C
12,5
Length adjustment T
12,5
Collet size
3
For taps
M8-M20
Maximum projection length [l 4]
136 mm
Connection size code [d 1]
NCT 50
Weight
1.817 kg
