9224-213

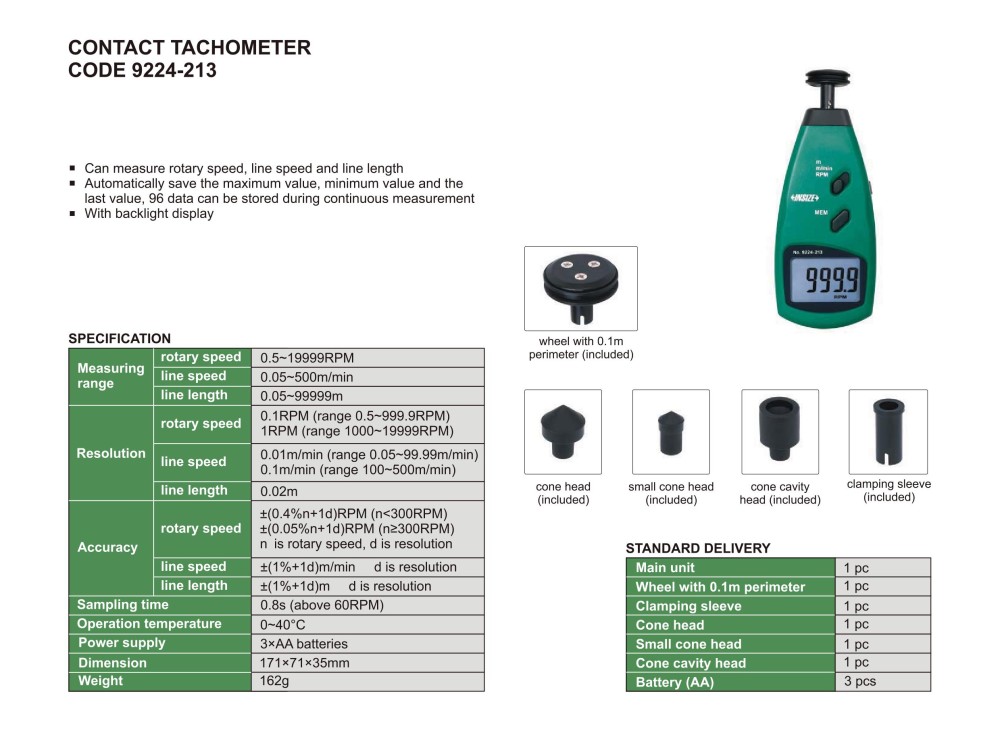

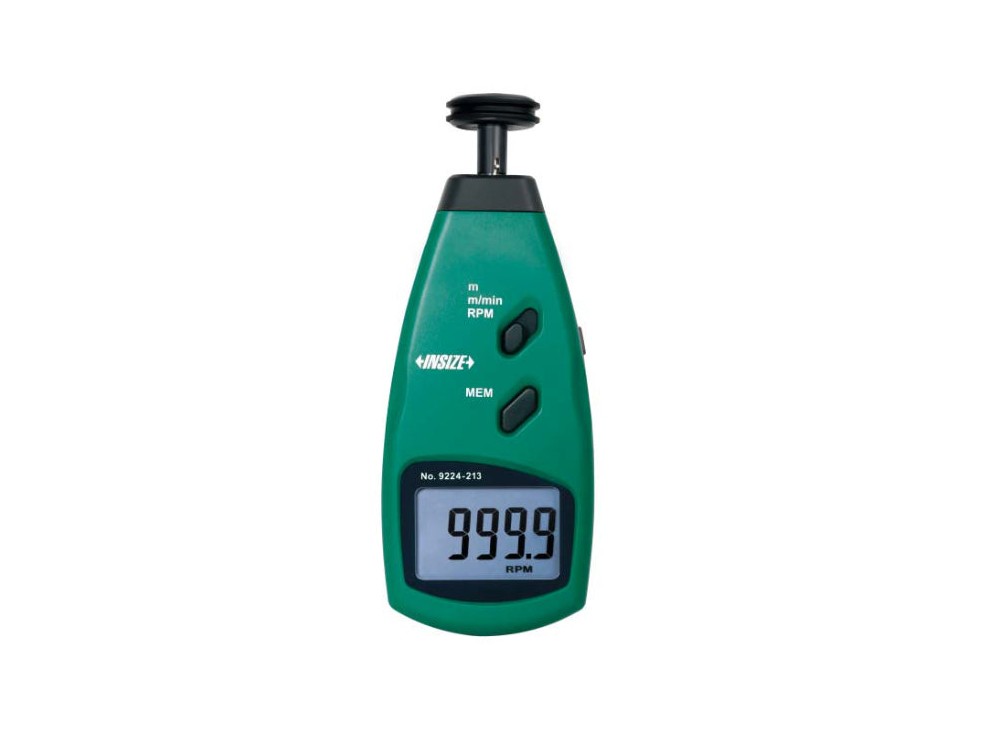

Contact tachometer code 9224-213

Can measure rotary speed, line speed and line length, automatically save the maximum value, minimum value and the last value, 96 data can be stored during continuous measurement, with backlight display

Specification

• Measuring range
  • Rotary speed: 0.5~19999 RPM
  • Line speed: 0.05~500 m/min
  • Line length: 0.05~99999 m
• Resolution
  • Rotary speed 0.1 RPM (range 0.5~999.9 RPM), 1 RPM (range 1000~19999 RPM)
  • Line speed: 0.01 m/min (range 0.05~99.99 m/min)
  • Line length: 0.02 m
• Accuracy
  • Rotary speed: ± (0.4%n+1d) RPM (n<300 RPM), ± (0.05%n+1d) RPM (n≥300 RPM), n is rotary speed, d is resolution
  • Line speed: ±(1% + 1d) m/min, d is resolution
  • Line length: ±(1% + 1d) m, d is resolution
• Sampling time: 0.8s (above 60 RPM)
• Operation temperature: 0~40°C
• Power supply: 3ˣAA batteries
• Dimension: 171ˣ71ˣ35 mm
• Weight: 162 g

Standard delivery

• Main unit: 1 pc
• Wheel with 0.1m perimeter: 1 pc
• Clamping sleeve: 1 pc
• Cone head: 1 pc
• Small cone head: 1 pc
• Cone cavity head: 1 pc
• Battery (AA): 3 pcs
