9223-120

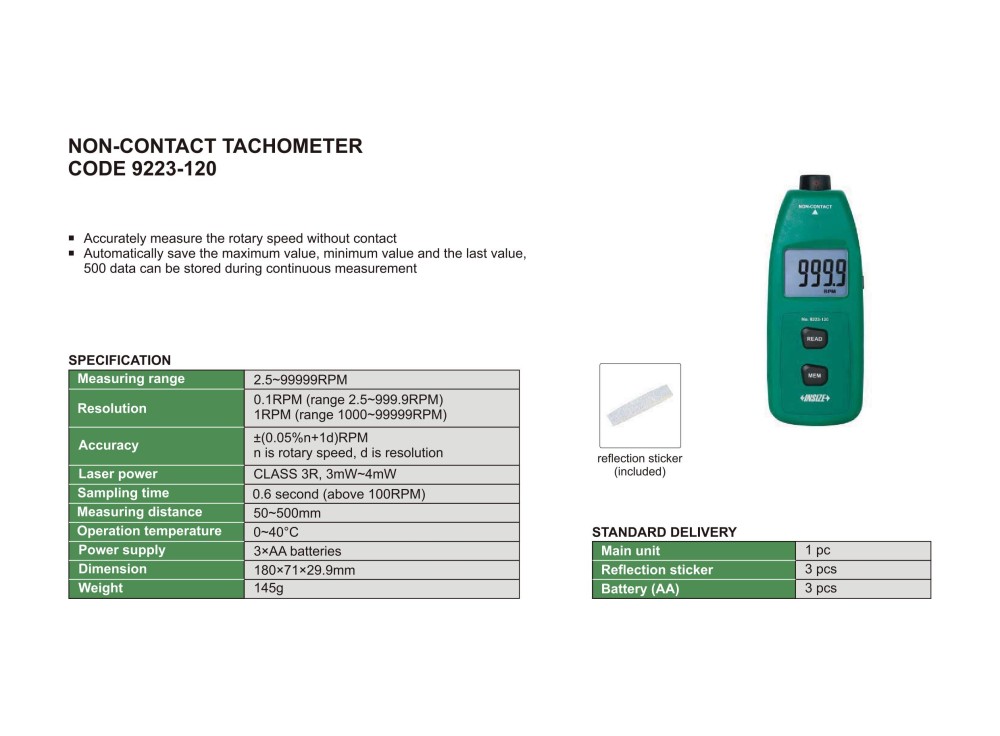

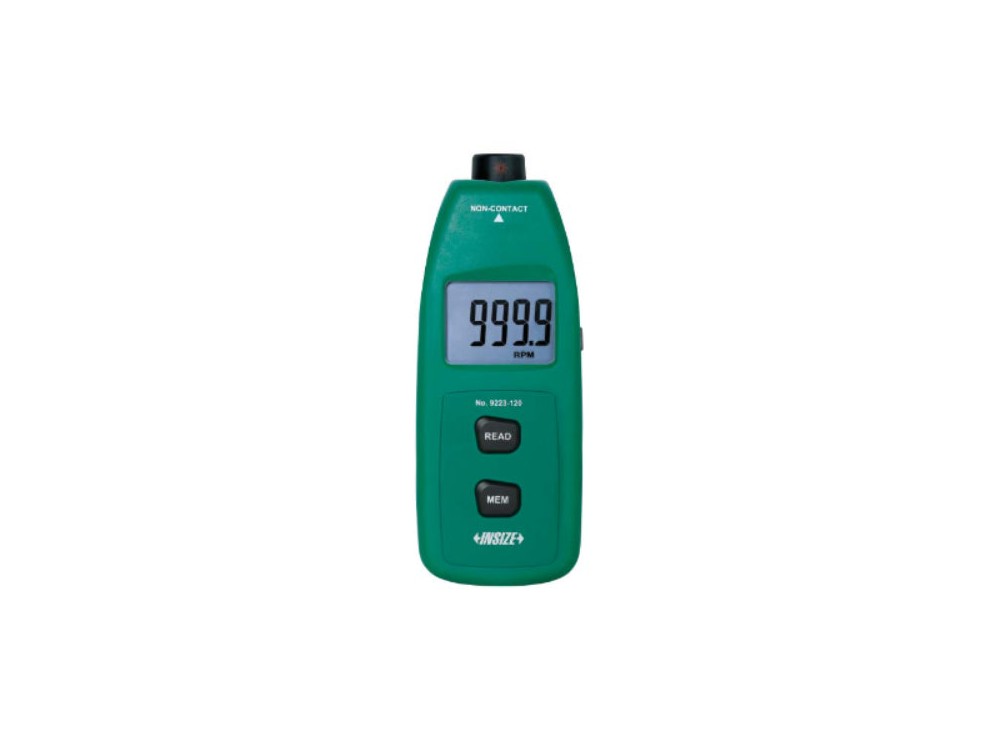

Non-contact tachometer code 9223-120

Accurately measure the rotary speed without contact, automatically save the maximum value, minimum value and the last value, 500 data can be stored during continuous measurement

Specification

• Measuring range: 2.5~99999 RPM
• Resolution: 0.1 RPM (range 2.5~999.9 RPM), 1 RPM (range 1000~99999 RPM)
• Accuracy: ± (0.05%n+1d) RPM, n is rotary speed, d is resolution
• Laser power: CLASS 3R, 3mW~4mW
• Sampling time: 0.6 second (above 100 RPM)
• Measuring distance: 50~500 mm
• Operation temperature: 0~40°C
• Power supply: 3ˣAA batteries
• Dimension: 180ˣ71ˣ29.9 mm
• Weight: 145 g

Standard delivery

• Main unit: 1 pc
• Reflection sticker: 3 pcs
• Battery (AA): 3 pcs
