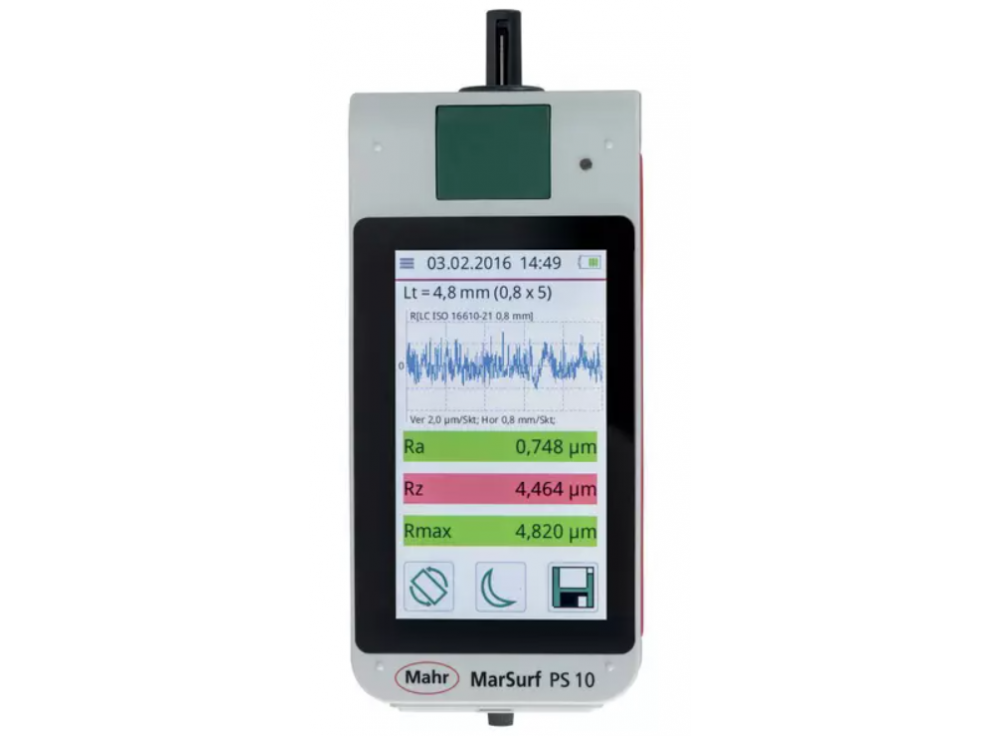

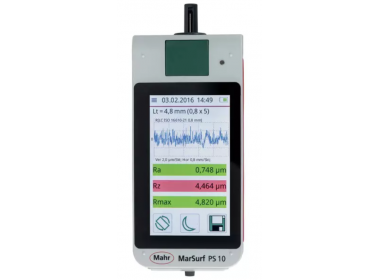

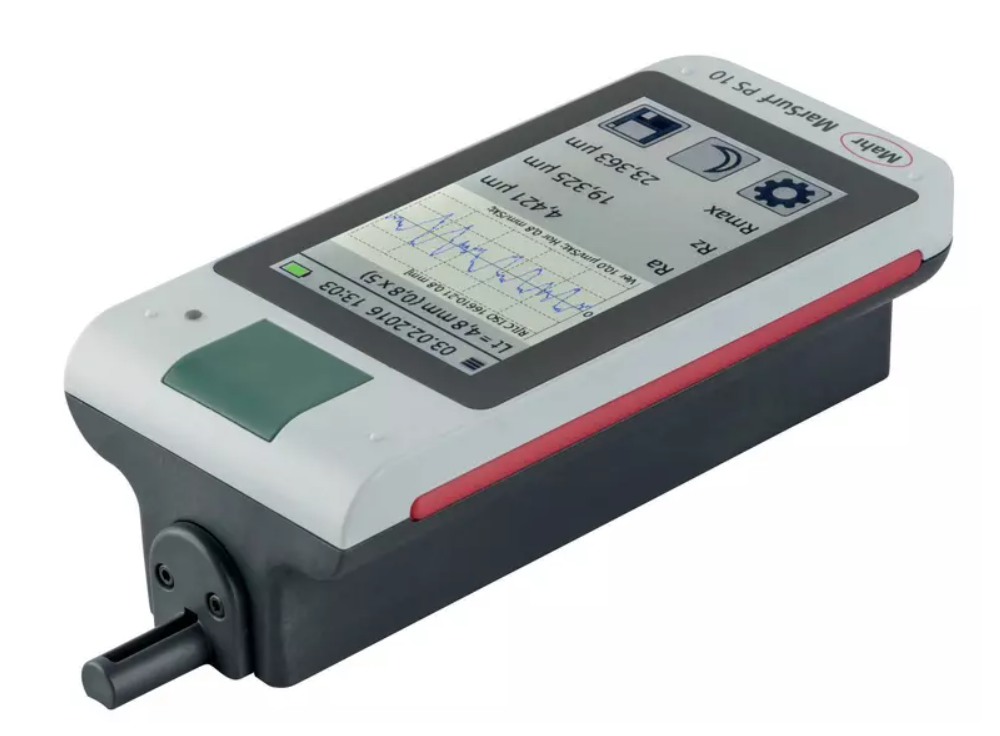

Mahr MarSurf PS 10

Surface Roughness Tester

Discover a revolution in device control with our new instrument. With an intuitive interface as easy to use as a smartphone, anyone can operate it effortlessly.

Equipped with a large, backlit 4.3" TFT touchscreen display, which can be adjusted to suit your needs, it provides high comfort even during extended use. Its compact size and lightweight design (approx. 500 g) ensure easy portability, so you always have the device at hand.

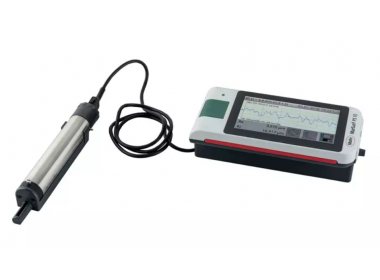

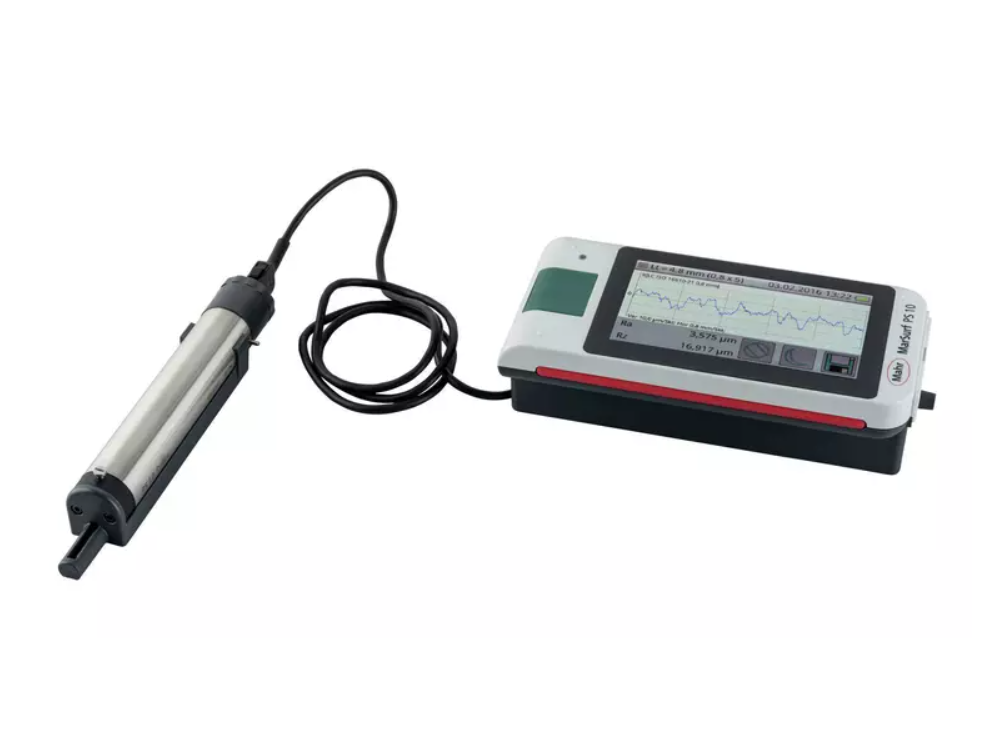

Flexibility is another key advantage – the detachable drive unit allows you to tailor the device to your specific requirements. With 31 parameters covering the same range of functions as laboratory devices, you get power and precision in a compact and mobile package.

Technical Specifications

• Traversing Length (Lt): Up to 15 mm
• Dimensions (mm): 160 mm x 77 mm x 50 mm
• Measuring Principle: Stylus method
• Measuring Force (N): 0.00075
• Probe Tip Radius: 2 µm
• Filter (ISO/JIS): Gaussian filter (ISO 16610-21, previously ISO 11562), special filter (DIN EN ISO 13565-1), lambda filter (DIN EN ISO 3274, can be disabled)
• Cutoff Ic (ISO/JIS): 0.25 mm, 0.8 mm, 2.5 mm, automatic filter detection
• Power Supply: Built-in rechargeable battery (min. 1200 measurements) or via charging unit
• Data Interface: USB, Duplex, Micro SD slot for SD / SDHC cards up to 32 GB
• Languages: German, English, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Polish, Czech, Japanese, Chinese, Korean, Hungarian, Turkish, Romanian
• Storage Capacity: Min. 3,900 profiles, min. 500,000 results, min. 1,500 PDF records, expandable up to 32 GB with a Micro SD card
• Calibration Function: Dynamic; Ra, Rz, Rsm
• IP Protection Rating: IP 40
• Weight (Gross): 1.85 kg
• Traversing Length (ISO 12085 – MOTIF): 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm
• Stylus: 5 µm
• Rechargeable Battery: Lithium-ion, min. 1200 measurements
• Wide Power Supply Range: 100 to 264 V
• Measuring Range (mm): 0.350
• Profile Resolution: 8 nm
• Traversing Length Lt (ISO/JIS): 1.5 mm, 4.8 mm, 15 mm, N x Lc, variable, automatic

Versatile High-Performance Measuring Instrument – MarSurf PS 10

• Data Backup Formats: TXT, X3P, CSV, and PDF
• Direct PDF Report Generation within the Measuring Device
• Customized Comments for PDF Reports Can Be Entered Directly on the MarSurf PS 10
• Standalone Operation: More than 1,200 measurements without recharging
• Error-Free Operation: Integrated detachable roughness standard for precise measurements
• Quick Access to Functions: Favorite features stored on the display for fast selection

Various Product Applications

• For Large Machines – Capable of handling high loads and suitable for demanding industrial applications.
• For Large Workpieces – A reliable solution for efficient machining of large parts.
• For Milled and Turned Parts – Ensures precise and high-quality surface finishing.
• For Ground and Honed Workpieces – Ideal for achieving the required surface roughness and quality.
• On the Production Line or Directly on the Machine – Enables fast surface roughness testing for effective quality control in manufacturing.
