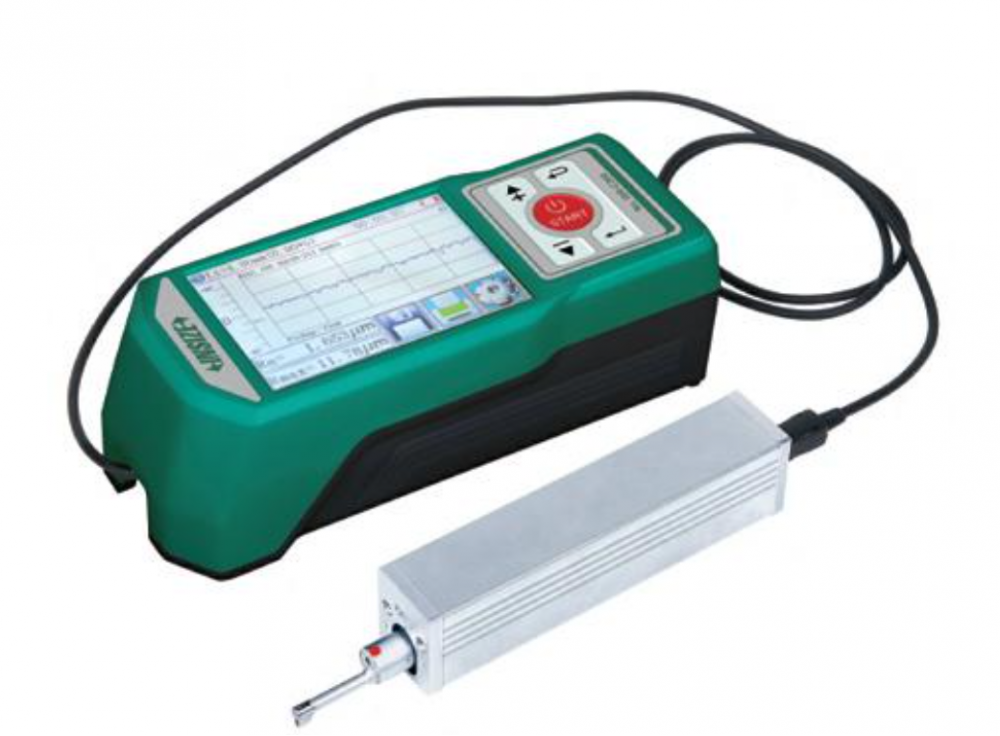

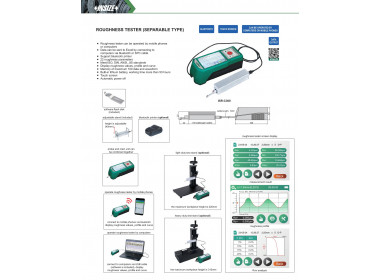

Roughness tester ISR-C300

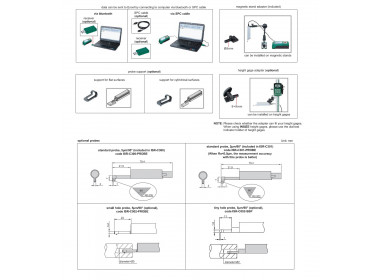

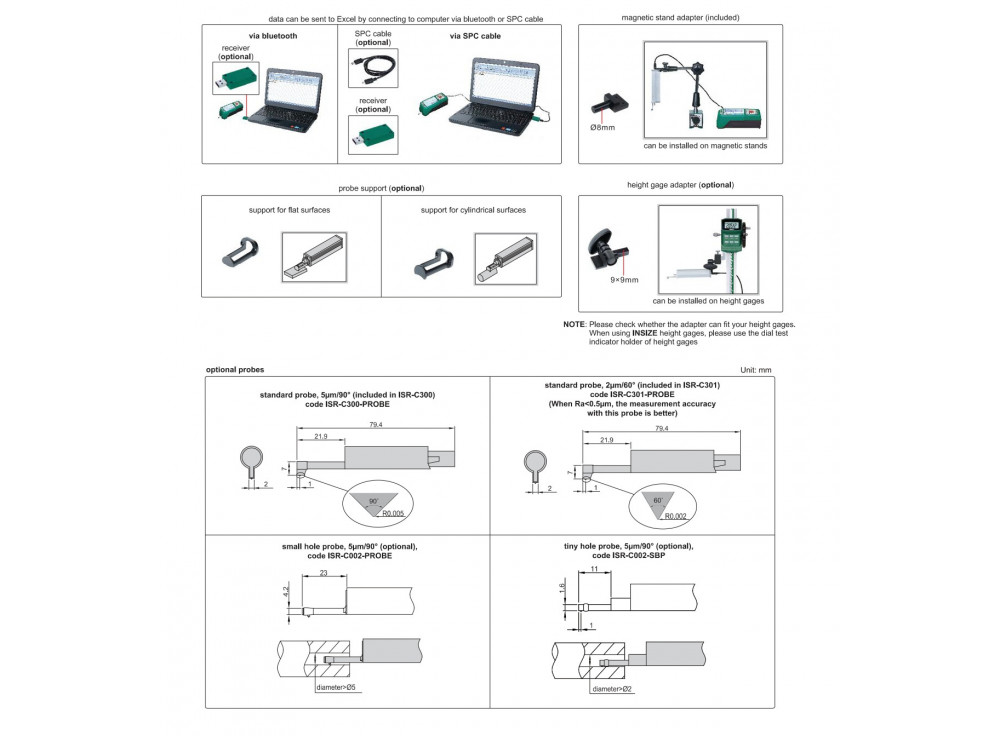

A roughness tester is a modern device for measuring surface roughness, offering easy operation via mobile phones or computers. Thanks to Bluetooth or SPC cable connectivity, data can be transferred to Excel for further processing and analysis.

Key Features of the Roughness Tester:

• Supports Bluetooth printers for quick measurement result printing.
• Measures up to 22 roughness parameters.
• Compliant with ISO, DIN, ANSI, and JIS standards.
• Displays roughness values, profiles, and curves.
• Memory capacity for up to 100 stored data points and waveforms.
• Built-in lithium battery with a runtime of over 50 hours.
• Touchscreen display for convenient operation.

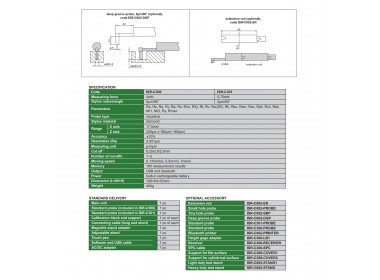

Technical Specifications of the Roughness Tester:

Roughness Parameters:
Ra, RQ, Rt, Rz, Rc, Rv, Rp, Rs, R3z, R3y, Rz (JIS), Rk, Rku, Rpk, RVK, RSK, MR1, Mr2, Ry, Rmax, RSM, RPC

Measurement Speed:
0.135 mm/s, 0.5 mm/s, 1 mm/s

Measuring Force:
4 mN

Accuracy:
± 10%

Axis Ranges:

• X-axis: 17.5 mm
• Z-axis: 320 µm (range: -160 µm ~ 160 µm)

Resolution:
0.001 µm

Probe:

• Type: Inductive
• Radius/Angle: 5 µm / 90°
• Material: Diamond
• Cut-off Wavelength: 0.25 mm, 0.8 mm, 2.5 mm (1 ~ 5 segments)

Measurement Unit:
µm / μin

Memory Capacity:
Up to 100 measurements

Outputs:
USB, Bluetooth
