P23210-UNF2
Image may not correspond to reality
  • P23210-UNF2
  • P23210-UNF2

P23210-UNF2

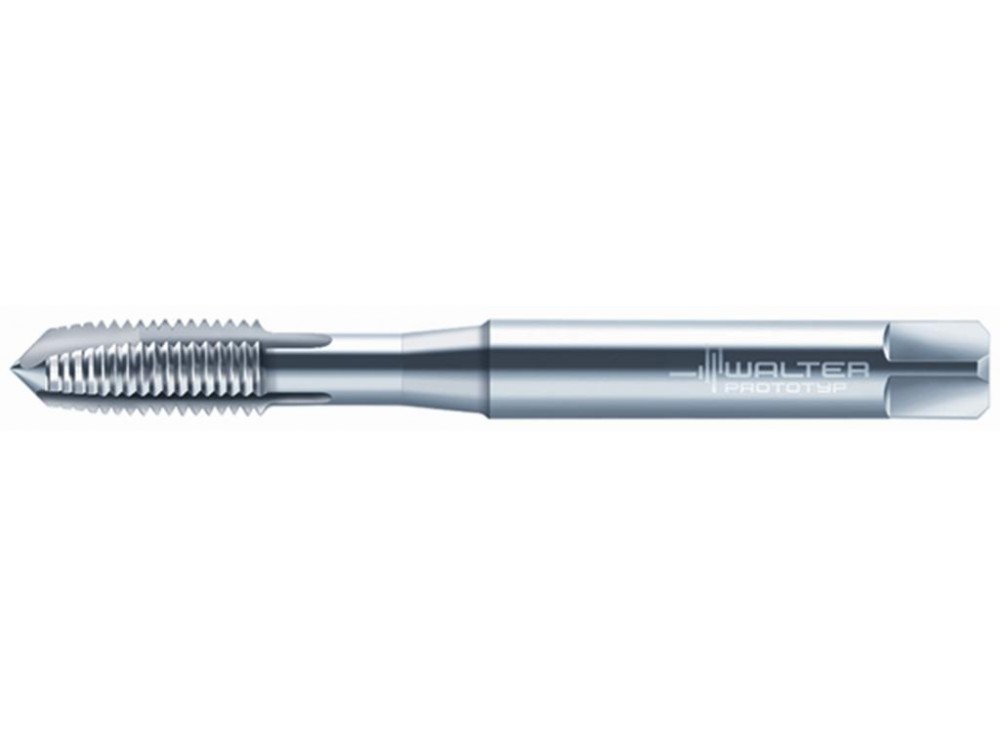

HSS-E machine taps
P23210-UNF2
4042446228026
Walter AG
€30.21

€30.21 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E machine taps • Prototex Xpert P • ≤3xD • UNF/2B • DIN 2184-1 • Suitable for through hole • UNF #2-64 • P=64

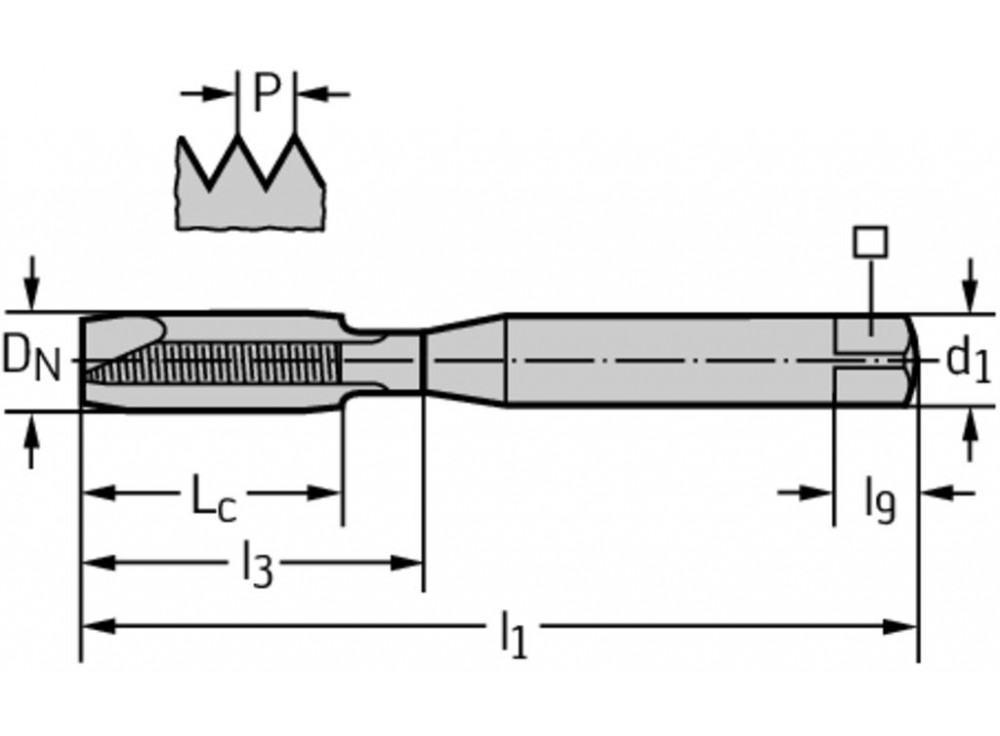

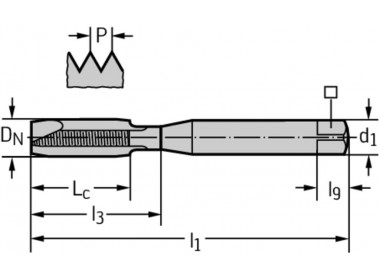

Product Details

Thread size [DNN-P]
UNF #2-64
Thread size [D N]
2,184 mm
Cutting edge length [L c]
7 mm
Shank diameter [d 1]
2,8 mm
Clamping width
2,1 mm
Overall length [l 1]
45 mm
Useable length [l 3]
12 mm
Driving square length [l 9]
5 mm
Number of grooves [N]
2
Weight
0.004 kg
