P23360-UNF7/16
Image may not correspond to reality
  • P23360-UNF7/16
  • P23360-UNF7/16

P23360-UNF7/16

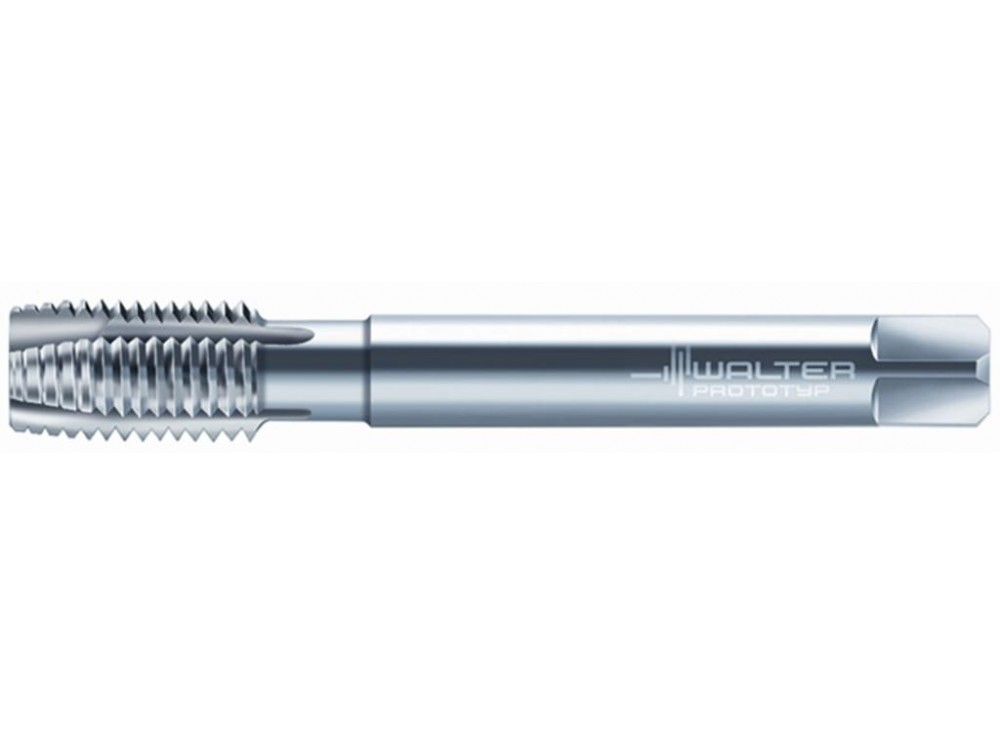

HSS-E machine taps
P23360-UNF7/16
4042446228255
Walter AG
€48.66

€48.66 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E machine taps • Prototex Xpert P • ≤3xD • UNF/2B • DIN 2184-1 • Suitable for through hole • UNF 7/16-20 • P=20

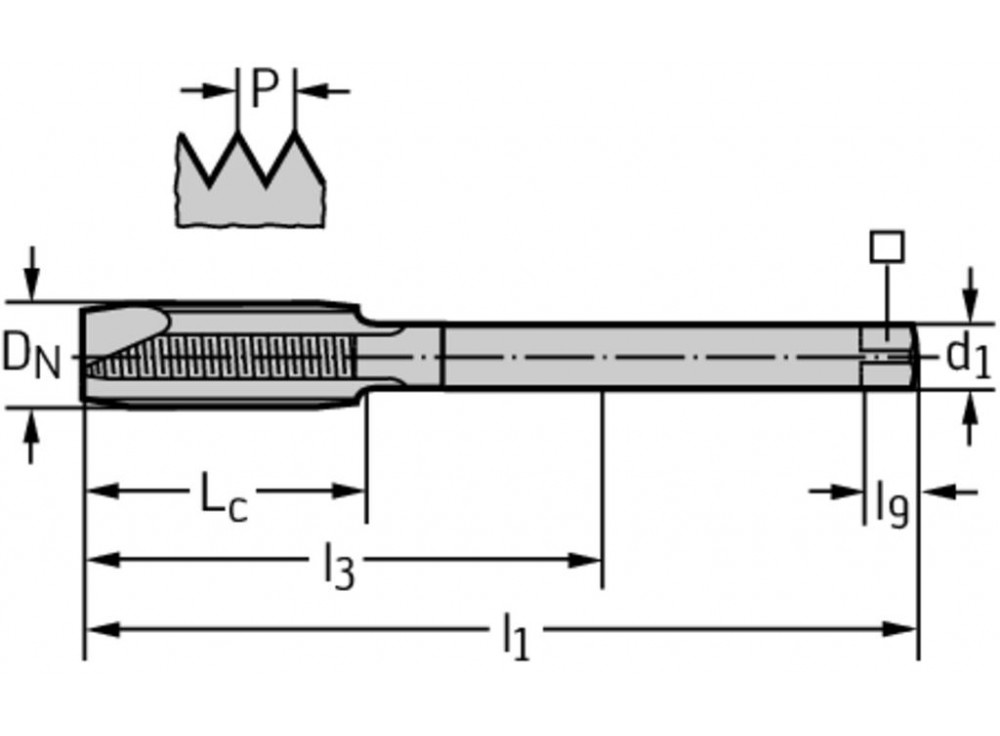

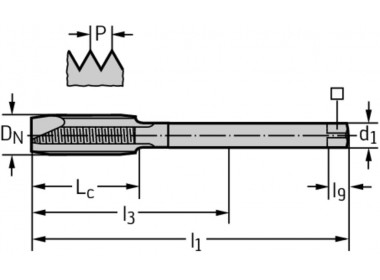

Product Details

Thread size [DNN-P]
UNF 7/16-20
Thread size [D N]
11,113 mm
Cutting edge length [L c]
20 mm
Shank diameter [d 1]
8 mm
Clamping width
6,2 mm
Overall length [l 1]
100 mm
Driving square length [l 9]
9 mm
Number of grooves [N]
3
Weight
0.047 kg
