M22213-UNC1/4
Image may not correspond to reality
  • M22213-UNC1/4
  • M22213-UNC1/4

M22213-UNC1/4

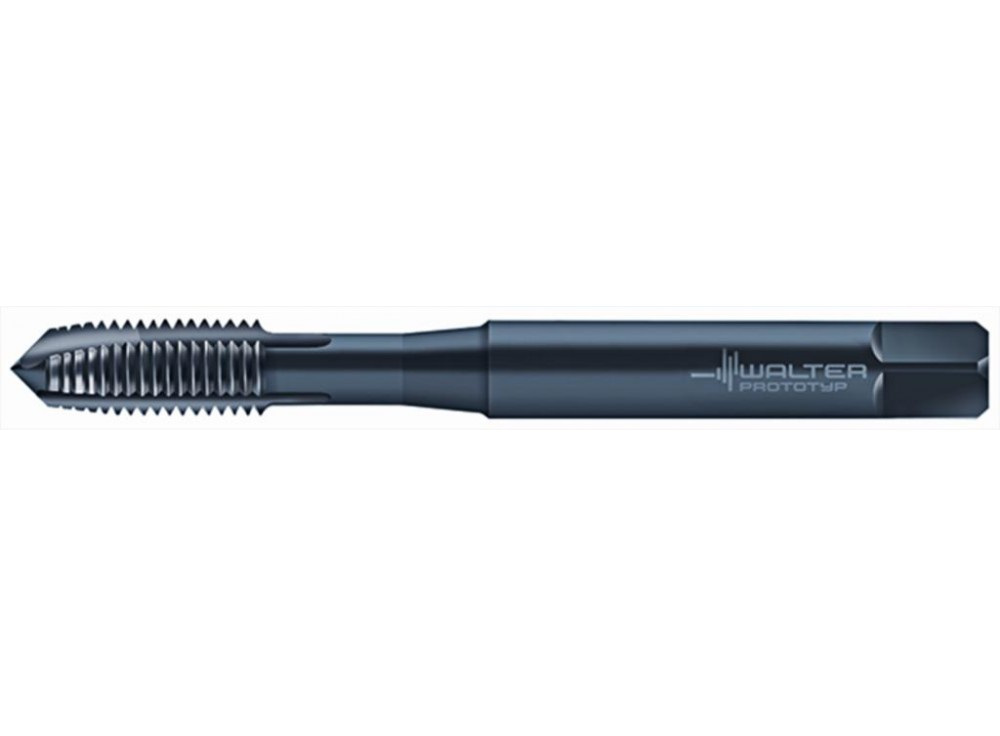

HSS-E machine taps
M22213-UNC1/4
4042446231378
Walter AG
€30.58

€30.58 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E machine taps • Prototex Xpert M • ≤3xD • UNC/2B • DIN 2184-1 • VAP • Suitable for through hole • UNC 1/4-20 • P=20

Product Details

Main application
ISO M
Additional application
ISO P

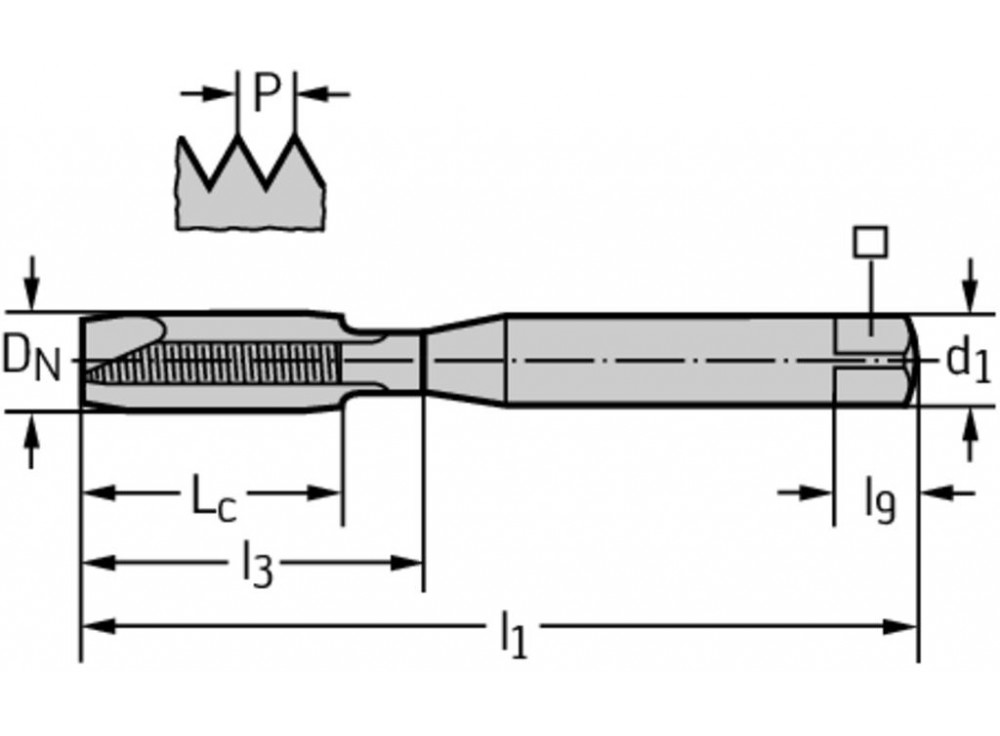

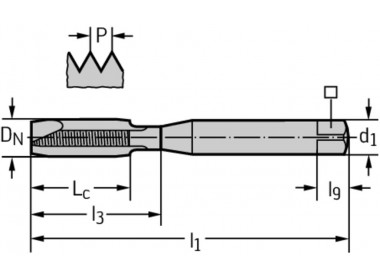

Thread size [DNN-P]
UNC 1/4-20
Thread size [D N]
6,35 mm
Cutting edge length [L c]
15 mm
Shank diameter [d 1]
7 mm
Clamping width
5,5 mm
Overall length [l 1]
80 mm
Useable length [l 3]
30 mm
Driving square length [l 9]
8 mm
Number of grooves [N]
3
Weight
0.023 kg
