2021616-M6
Image may not correspond to reality
  • 2021616-M6
  • 2021616-M6

2021616-M6

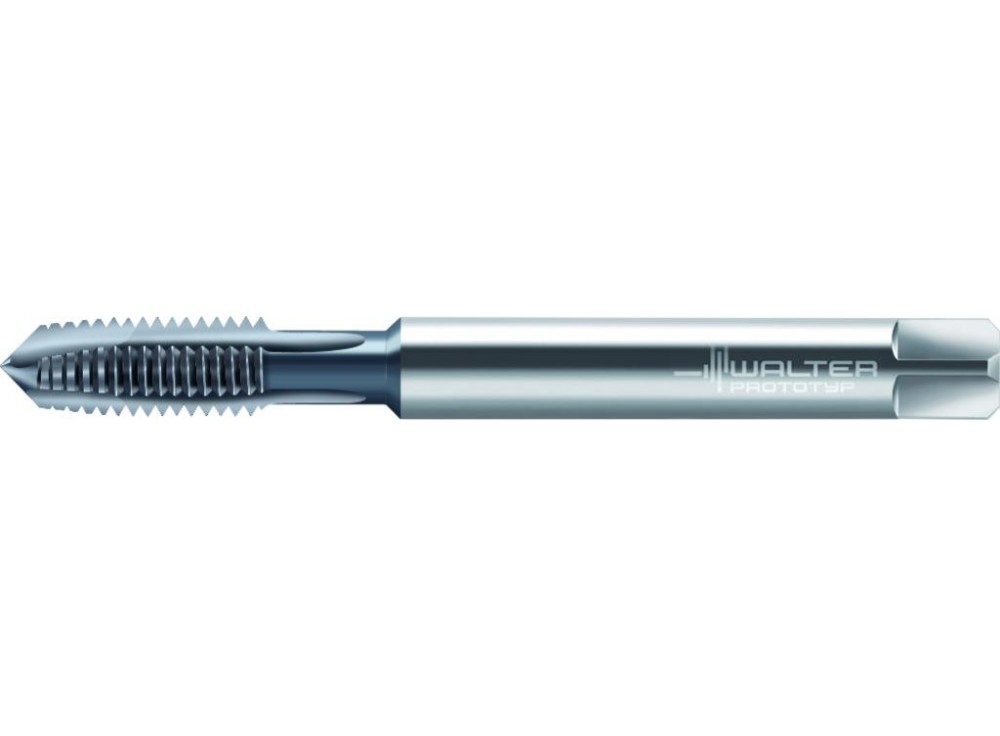

HSS-E PM machine taps
2021616-M6
4042446113162
Walter AG
€47.42

€47.42 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Recommended with oil
  • For long-chipping materials

HSS-E PM machine taps • Prototex TiNi • ≤2xD • M/6HX • ~DIN 371 • TICN • Suitable for through hole • M 6 • P=1mm

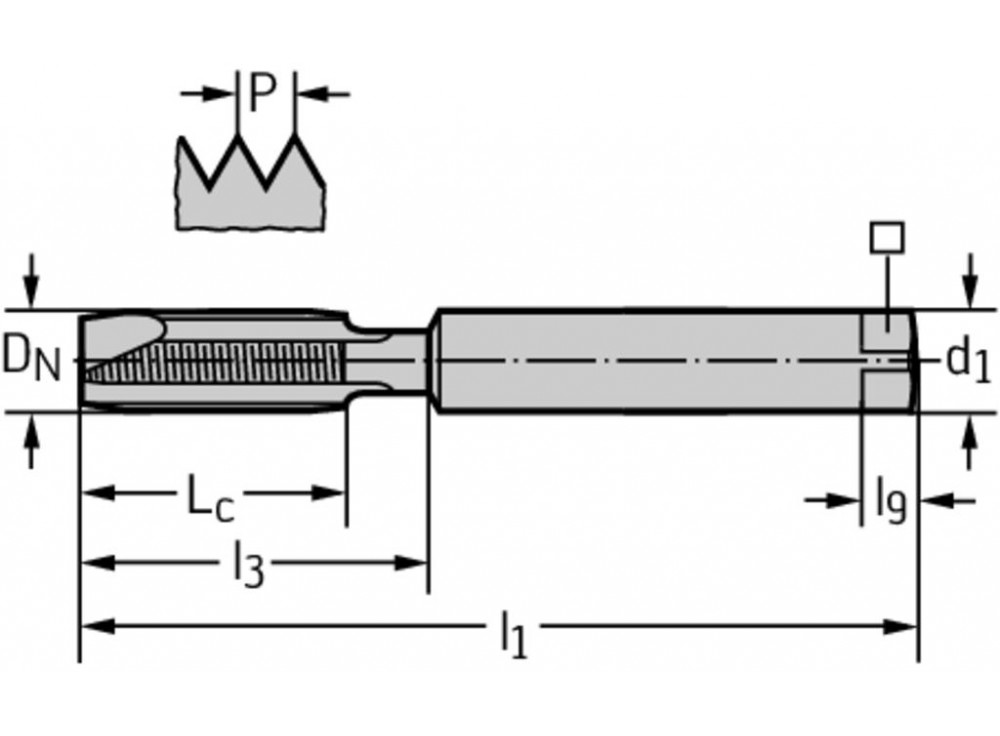

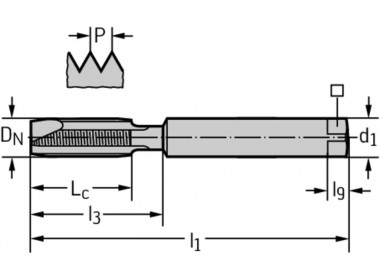

Product Details

Main application
ISO M
ISO P
ISO S
Additional application
ISO N
Thread size [D N]
M 6
Thread pitch [P]
1 mm
Cutting edge length [L c]
15 mm
Shank diameter [d 1]
6 mm
Clamping width
4,9 mm
Overall length [l 1]
80 mm
Useable length [l 3]
23 mm
Driving square length [l 9]
8 mm
Number of grooves [N]
3
Weight
0.018 kg
