2226706-UNC9/16
Image may not correspond to reality
  • 2226706-UNC9/16
  • 2226706-UNC9/16

2226706-UNC9/16

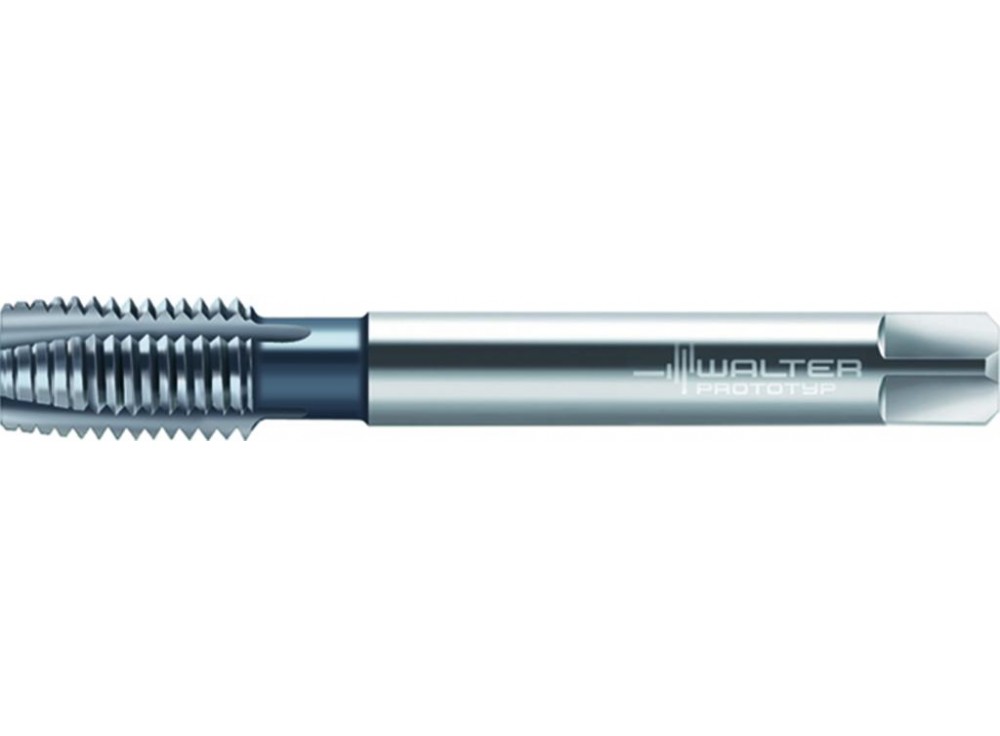

HSS-E PM machine taps
2226706-UNC9/16
4042446294243
Walter AG
€148.20

€148.20 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Recommended with oil
  • For long-chipping materials

HSS-E PM machine taps • Prototex TiNi • ≤2xD • UNC/2B • DIN 2184-1 • TICN • Suitable for through hole • UNC 9/16-12 • P=12

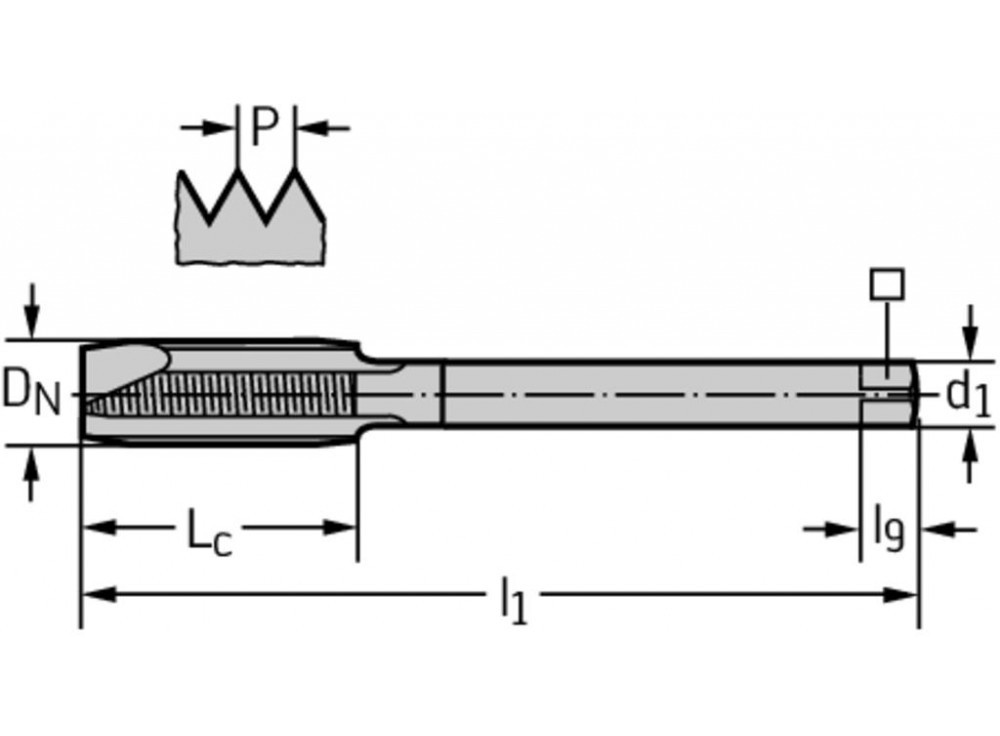

Product Details

Main application
ISO M
ISO P
ISO S
Additional application
ISO N
Thread size [DNN-P]
UNC 9/16-12
Thread size [D N]
14,288 mm
Cutting edge length [L c]
25 mm
Shank diameter [d 1]
11 mm
Clamping width
9 mm
Overall length [l 1]
110 mm
Useable length [l 3]
81 mm
Driving square length [l 9]
12 mm
Number of grooves [N]
4
Weight
0.083 kg
