22267-UNC9/16
Image may not correspond to reality
  • 22267-UNC9/16
  • 22267-UNC9/16

22267-UNC9/16

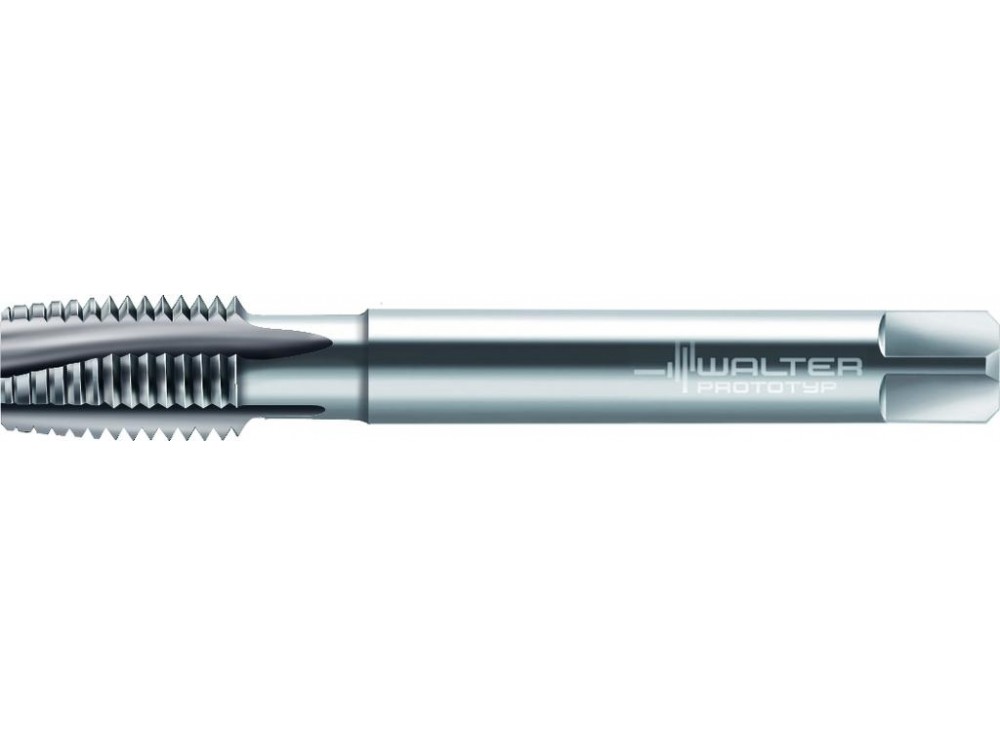

HSS-E PM machine taps
22267-UNC9/16
4042446025465
Walter AG
€107.92

€107.92 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Recommended with oil
  • For long-chipping materials

HSS-E PM machine taps • Prototex TiNi • ≤2xD • UNC/2B • DIN 2184-1 • Suitable for through hole • UNC 9/16-12 • P=12

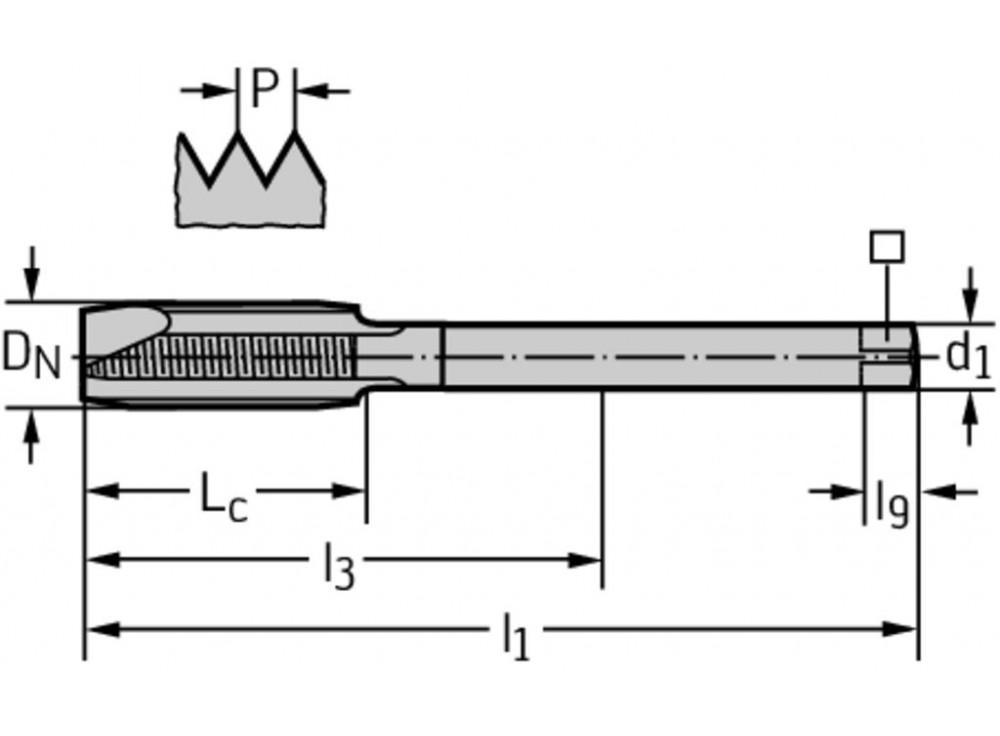

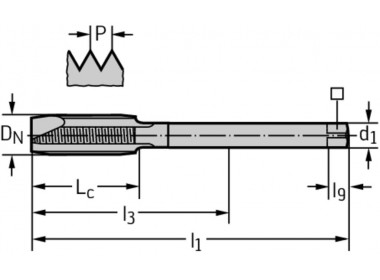

Product Details

Thread size [DNN-P]
UNC 9/16-12
Thread size [D N]
14,288 mm
Cutting edge length [L c]
25 mm
Shank diameter [d 1]
11 mm
Clamping width
9 mm
Overall length [l 1]
110 mm
Useable length [l 3]
81 mm
Driving square length [l 9]
12 mm
Number of grooves [N]
4
Weight
0.083 kg
