8126006-M16X1.5
Image may not correspond to reality
  • 8126006-M16X1.5
  • 8126006-M16X1.5

8126006-M16X1.5

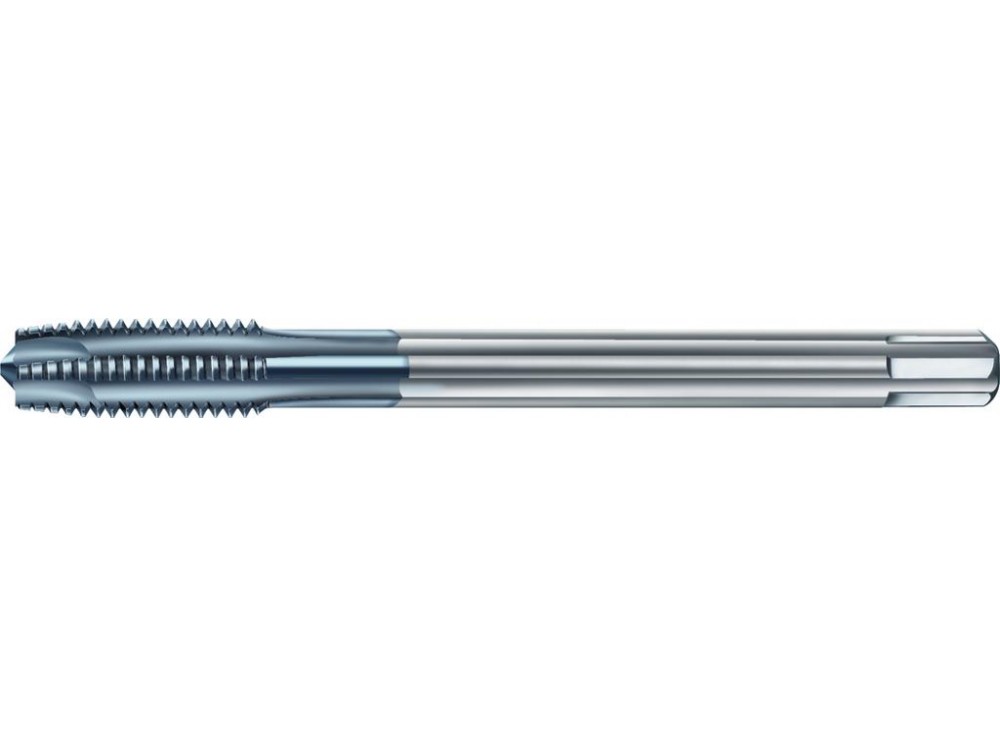

Solid carbide machine taps
8126006-M16X1.5
4042446177768
Walter AG
€507.00

€507.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials
  • Cooling grooves on the shank

Solid carbide machine taps • Prototex HSC • ≤2xD • MF/6HX • DIN 374 • TICN • Suitable for through hole • MF 16x1.5 • P=1,5mm

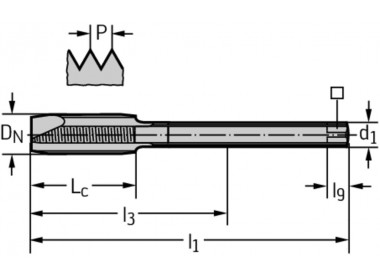

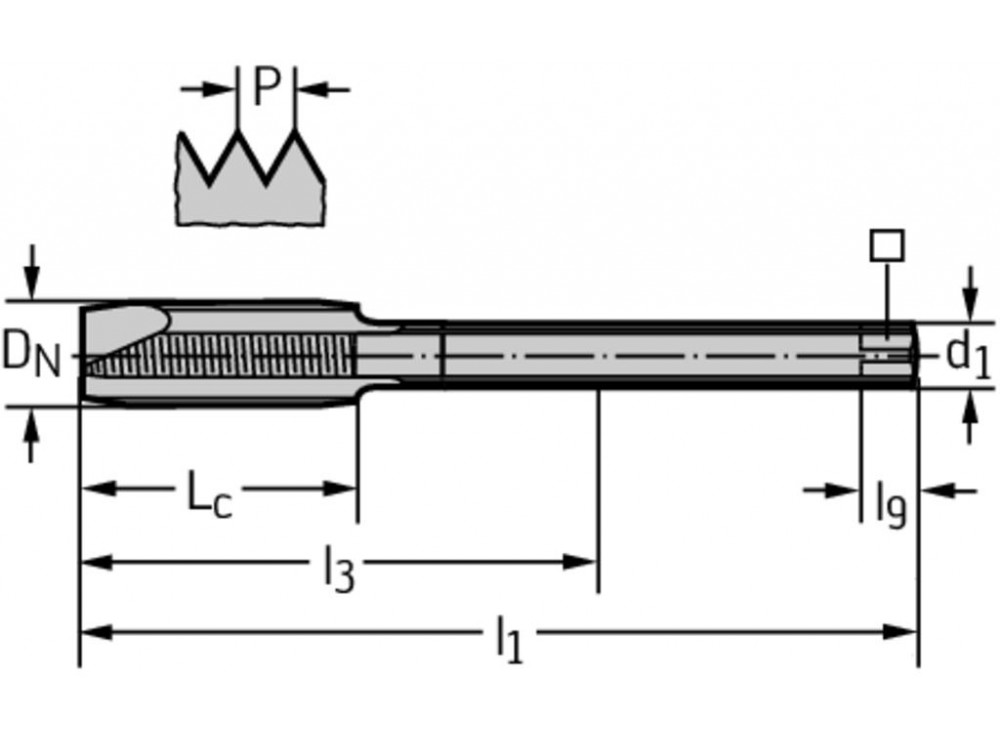

Product Details

Main application
ISO K
ISO P
Thread size [D N]
MF 16x1.5
Thread pitch [P]
1,5 mm
Cutting edge length [L c]
21 mm
Shank diameter [d 1]
12 mm
Clamping width
9 mm
Overall length [l 1]
100 mm
Useable length [l 3]
58 mm
Driving square length [l 9]
12 mm
Number of grooves [N]
5
Weight
0.157 kg
