EP2426302-G5/8
Image may not correspond to reality
  • EP2426302-G5/8
  • EP2426302-G5/8

EP2426302-G5/8

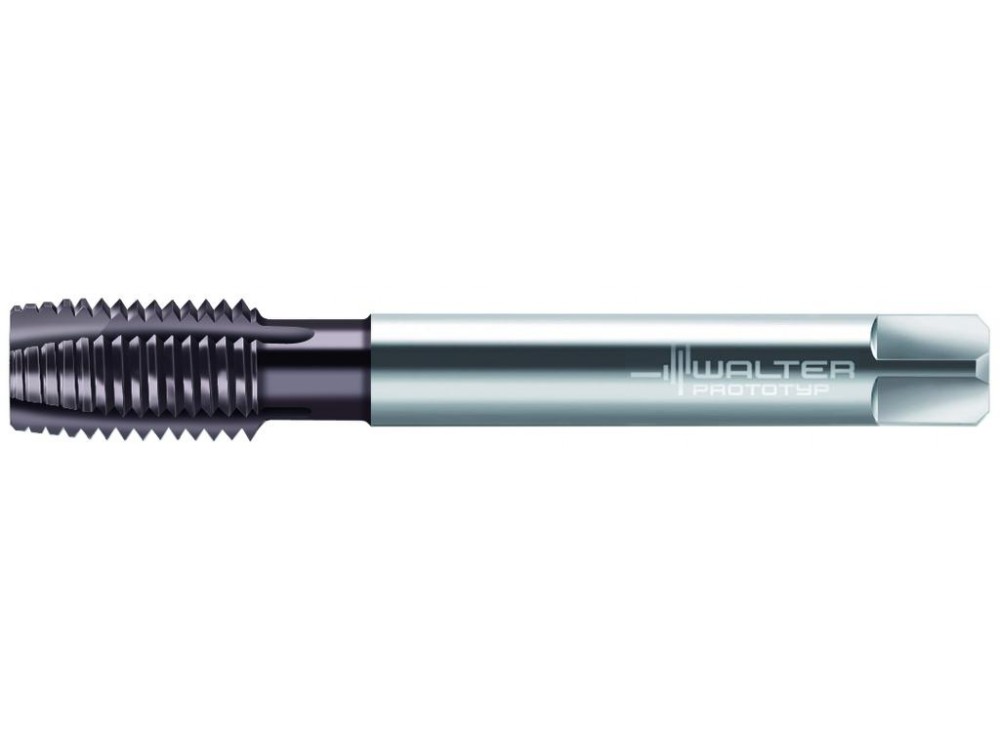

HSS-E PM machine taps
EP2426302-G5/8
4042446246655
Walter AG
€155.04

€155.04 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E PM machine taps • Prototex Eco Plus • ≤3,5xD • G/NORMAL • DIN 5156 • THL • Suitable for through hole • G 5/8-14 • P=14

Product Details

Main application
ISO K
ISO M
ISO N
ISO P

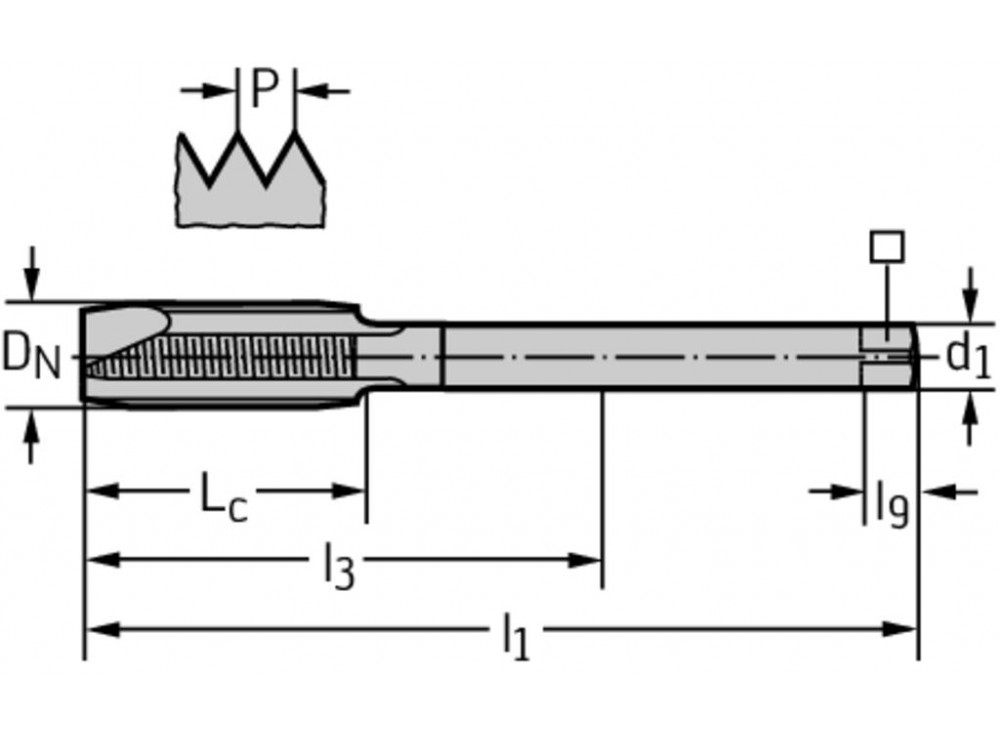

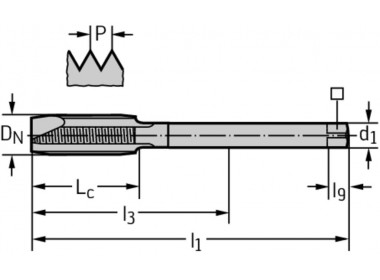

Thread size [DNN-P]
G 5/8-14
Thread size [D N]
22,911 mm
Threads per inch
14
Cutting edge length [L c]
24 mm
Shank diameter [d 1]
18 mm
Clamping width
14,5 mm
Overall length [l 1]
125 mm
Useable length [l 3]
78 mm
Driving square length [l 9]
17 mm
Number of grooves [N]
4
Weight
0.255 kg
