H8E11118-E20-20
Image may not correspond to reality
  • H8E11118-E20-20
  • H8E11118-E20-20

H8E11118-E20-20

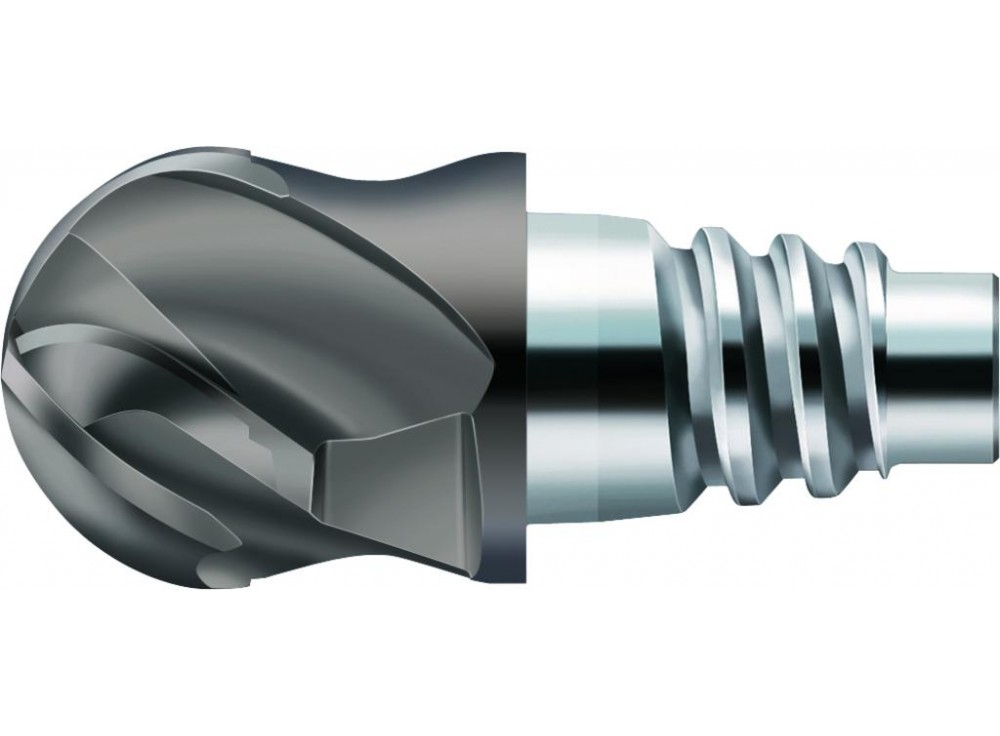

Solid carbide ball-nose copy milling cutters
H8E11118-E20-20
4042446190019
Walter AG
€125.60

€125.60 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Type N 40

Solid carbide ball-nose copy milling cutters H8E11118 • Protostar • ConeFit • TAX • metric • flute helix angle 40° • Dc=20mm • R=10mm • Z=4

Product Details

Main application
ISO M
ISO P
Additional application
ISO K
ISO N

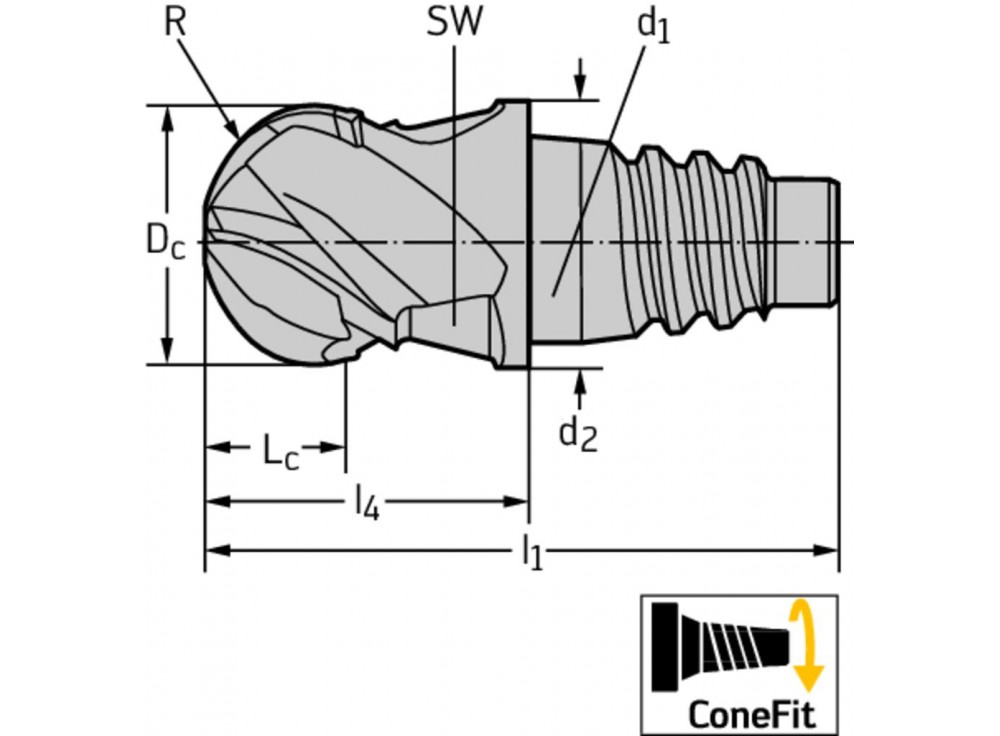

Cutting edge diameter [D c]
20 mm
Neck diameter [d 2]
19,3 mm
Cutting edge length [L c]
11 mm
Corner radius [r]
10 mm
Overall length [l 1]
40,8 mm
Functional length [l 4]
21,3 mm
Wrench size [SW]
16 mm
Connection size code [d 1]
E20 mm
Number of teeth [Z]
4
Weight
0.113 kg
