H3E68118-E20-20-6
Image may not correspond to reality
  • H3E68118-E20-20-6
  • H3E68118-E20-20-6

H3E68118-E20-20-6

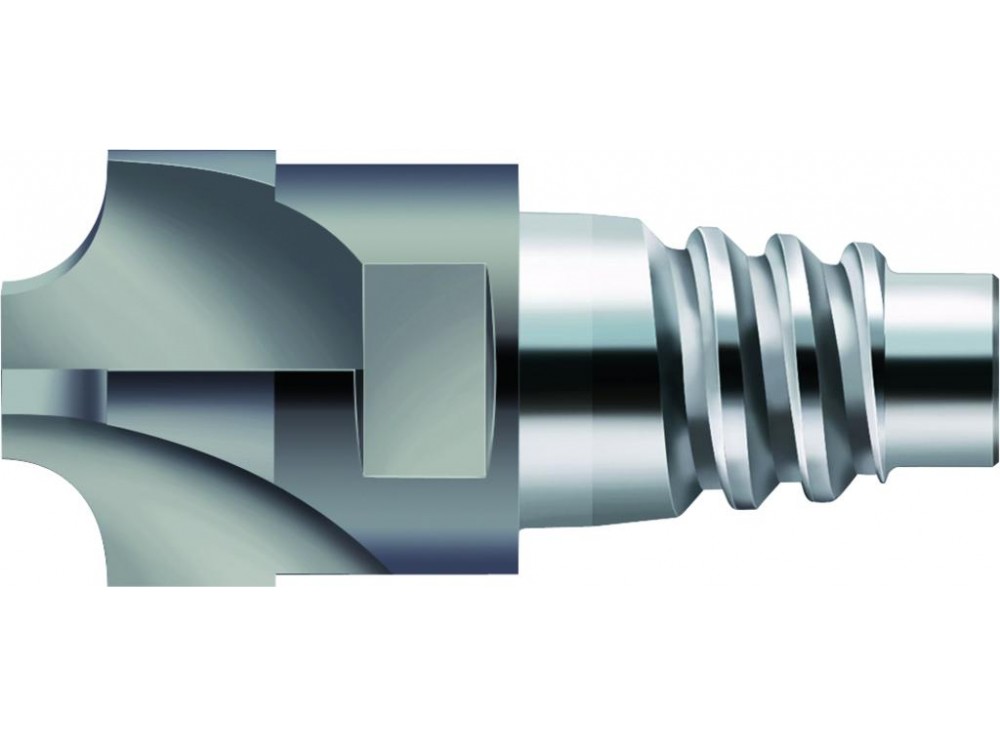

Solid carbide quarter-round profile mill
H3E68118-E20-20-6
4042446190415
Walter AG
€125.60

€125.60 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

Solid carbide quarter-round profile mill H3E68118 • Protostar • ConeFit • metric • flute helix angle 0° • R=6mm • Dc=8mm • Da=20mm • Z=4

Product Details

Main application
ISO P
Additional application
ISO K
ISO M
ISO N
ISO S

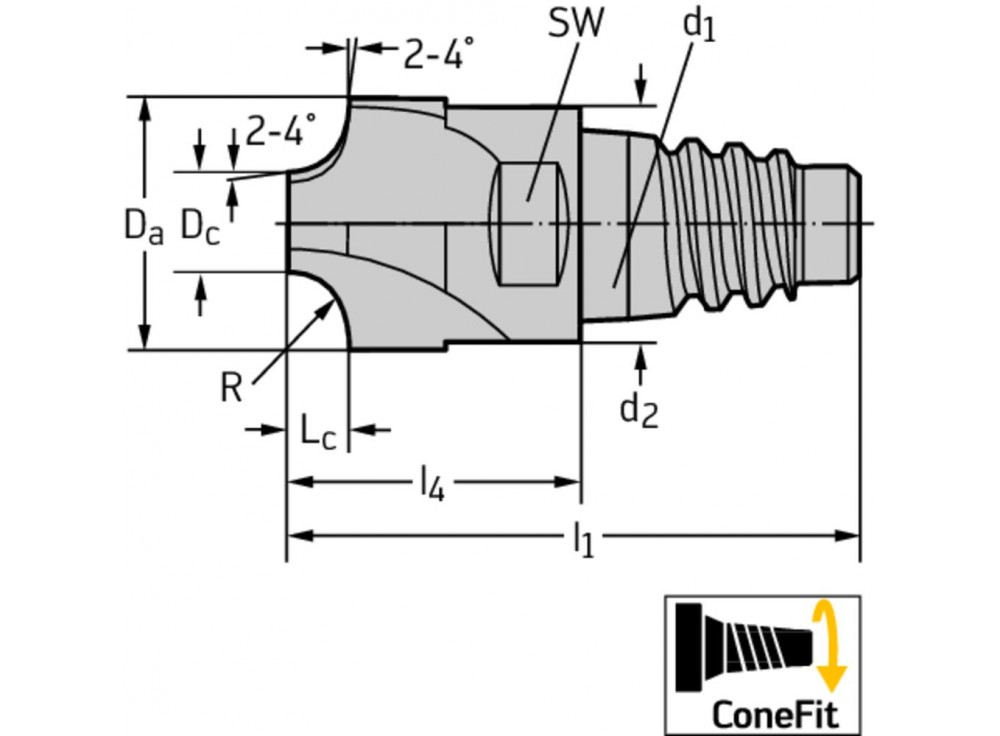

Maximum cutting diameter [D a]
20 mm
Cutting edge diameter [D c]
8 mm
Neck diameter [d 2]
19,3 mm
Cutting edge length [L c]
6 mm
Corner radius [r]
6 mm
Overall length [l 1]
40,8 mm
Wrench size [SW]
16 mm
Maximum projection length [l 4]
21,3 mm
Connection size code [d 1]
E20
Number of teeth [Z]
4
Weight
0.12 kg
