HDT-PB350
Image may not correspond to reality
  • HDT-PB350
  • HDT-PB350

HDT-PB350

Hammer impact brinnel hardness tester
HDT-PB350
6940561966657
INSIZE
€1,185.00

€1,185.00 tax incl.

Delivery time on request
Please contact us by email at eshop@toolbox.sk
info This product is available only for Slovakia
Quantity
in stock at the supplier

Description

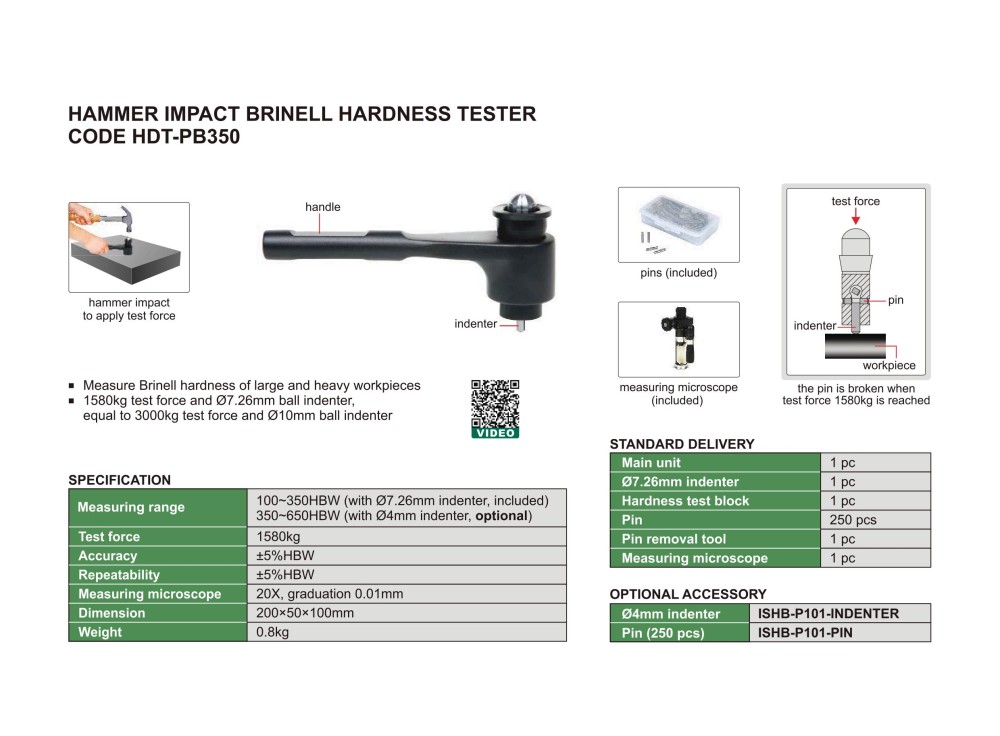

Hammer impact Brinell hardness tester code HDT-PB350

Measure Brinell hardness of large and heavy workpieces, 1580 kg test force and Ø7,26 mm ball indenter, equal to 300 kg test force and Ø10 mm ball indenter

Specification

  • Measuring range: 100~350HBW (with Ø7.26 mm indenter, included), 350~650HBW (with Ø 4 mm indenter, optional)
  • Test force: 1580 kg
  • Accuracy: ±5%HBW
  • Repeatability: ±5%HBW
  • Measuring microscope: 20X, graduation 0,01 mm
  • Dimension: 200ˣ50ˣ100mm
  • Weight: 0,8 kg

Standard delivery

  • Main unit: 1 pc
  • Ø7,26 mm indenter: 1 pc
  • Hardness test block: 1 pc
  • Pin: 250 pcs
  • Pin removal tool: 1 pc
  • Measuring microscope: 1 pc

Optional accessory

  • Ø 4 mm indenter: ISHB-P101-INDENTER
  • Pin (250 pcs): ISHB-P101-PIN
