HDT-L411

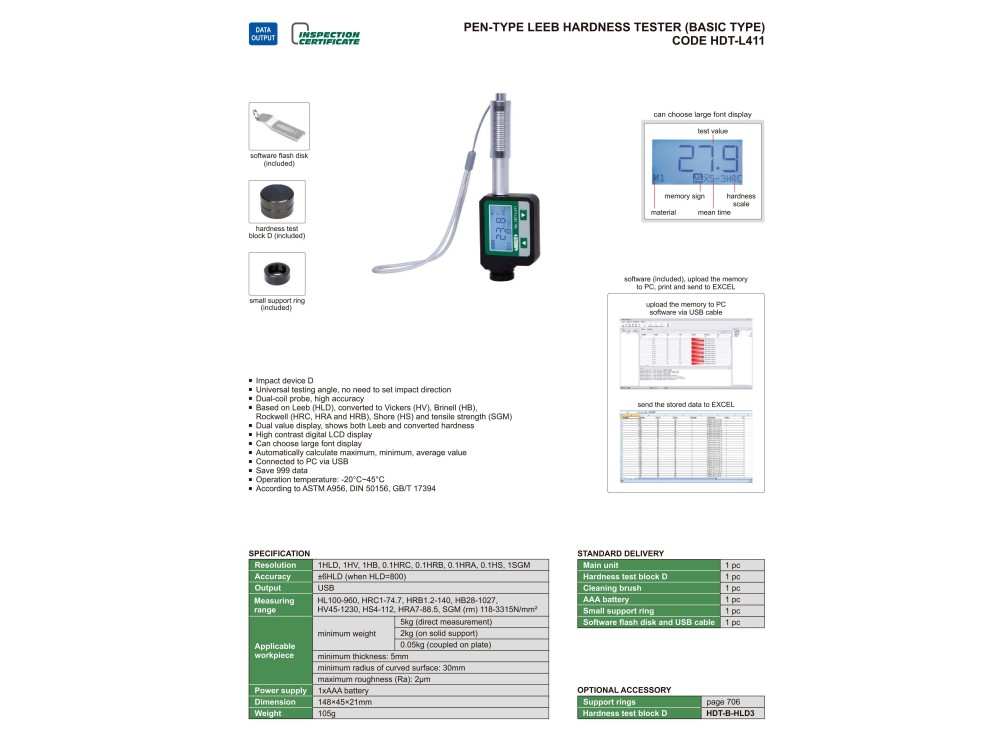

Pen-type Leeb hardness tester (basic type) code HDT-L411

Impact device D, universal testing angle, no need to set impact direction, dual-coil probe, high accuracy, based on Leeb (HLD), converted to Vickers (HV), Brinell (HB),Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (SGM), dual value display, shows both Leeb and converted hardness, high contrast digital LCD display, can choose large font display, automatically calculate maximum, minimum, average value, connected to PC via USB, save 999 data, operation temperature: -20°C~45°C, according to ASTM A956, DIN 50156, GB/T 17394

Specification

• Resolution: 1HLD, 1HV, 1HB, 0,1HRC, 0,1HRB, 0,1HRA, 0,1HS, 1SGM
• Accuracy: ±6HLD (when HLD=800)
• Output: USB
• Measuring range: HL100-960, HRC1-74.7, HRB1,2-140, HB28-1027, HV45-1230, HS4-112, HRA7-88.5, SGM (rm) 118-3315N/mm²

Applicable workpiece

• Minimum weight: 5kg (direct measurement), 2kg (on solid support), 0.05kg (coupled on plate)
• Minimum thickness: 5 mm
• Minimum radius of curved surface: 30 mm
• Maximum roughness (Ra): 2μm
• Power supply: 1xAAA battery
• Dimension: 148ˣ45ˣ21 mm
• Weight: 105 g

Standard delivery

• Main unit: 1 pc
• Hardness test block D: 1 pc
• Cleaning brush: 1 pc
• AAA battery: 1 pc
• Small support ring: 1 pc
• Software flash disk and USB cable: 1 pc

Optional accessory

• Support rings: page 706
• Hardness test block D: HDT-B-HLD3
