HDT-L410

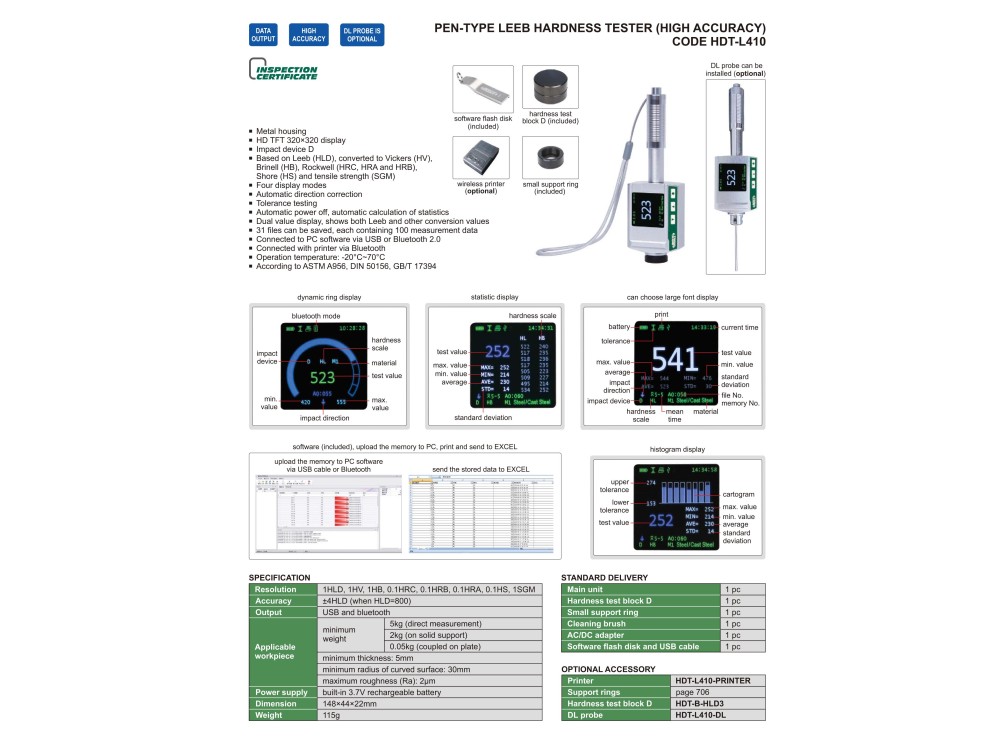

Pen-type leeb hardness tester (high accuracy) code HDT-L410

Metal housing, HD TFT 320x320 display, impact device D, based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (SGM),four display modes, automatic direction correction, tolerance testing, automatic power off, automatic calculation of statistics, dual value display, shows both Leeb and other conversion values, 31 files can be saved, each containing 100 measurement data, connected to PC software via USB or Bluetooth 2.0, connected with printer via Bluetooth, operation temperature: -20°C~70°C, according to ASTM A956, DIN 50156, GB/T 17394

Specification

• Resolution: 1HLD, 1HV, 1HB, 0,1HRC, 0,1HRB, 0,1HRA, 0,1HS, 1SGM
• Accuracy: ±4HLD (when HLD=800)
• Output: USB and bluetooth

Applicable workpiece

• Minimum weight: 5kg (direct measurement), 2kg (on solid support), 0.05kg (coupled on plate)
• Minimum thickness: 5 mm
• Minimum radius of curved surface: 30 mm
• Maximum roughness (Ra): 2μm
• Power supply: built-in 3.7V rechargeable battery
• Dimension: 148ˣ44ˣ22 mm
• Weight: 115 g

Standard delivery

• Main unit: 1 pc
• Hardness test block D: 1 pc
• Small support ring: 1 pc
• Cleaning brush: 1 pc
• AC/DC adapter: 1 pc
• Software flash disk and USB cable: 1 pc

Optional accessory

• Printer: HDT-L410-PRINTER
• Support rings: page 706
• Hardness test block D: HDT-B-HLD3
• DL probe: HDT-L410-DL
