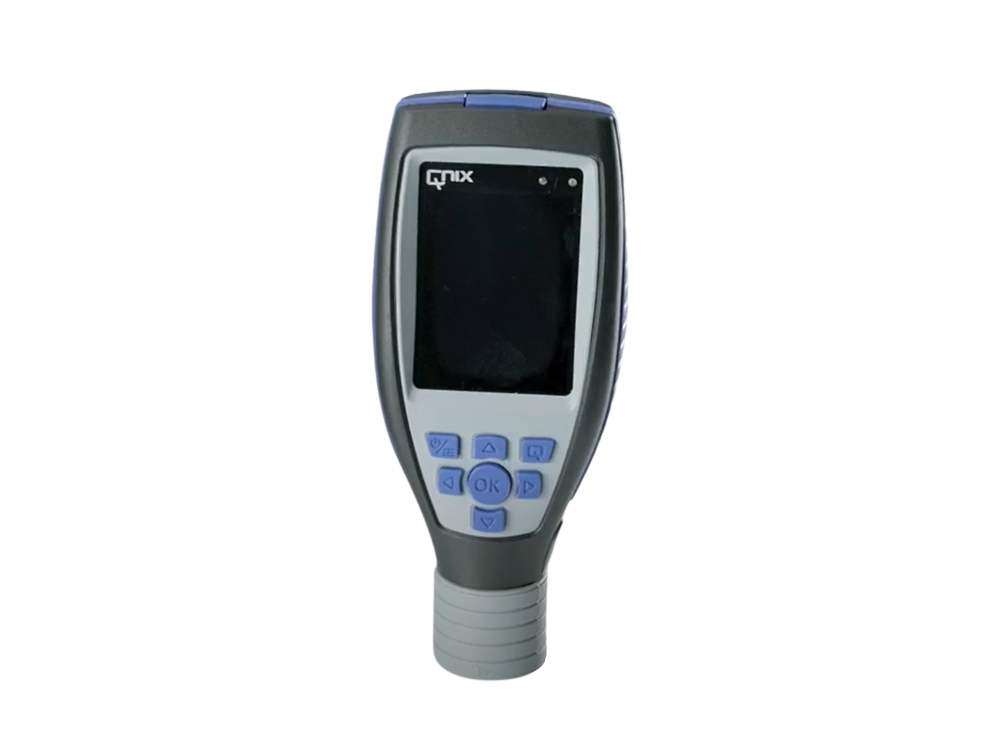

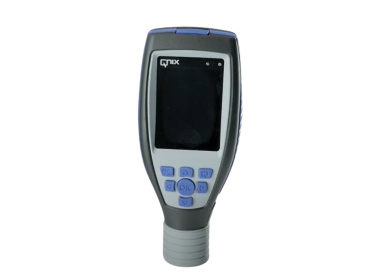

QNix® 9500 Premium+ with cable probe Fe5 mm/NFe 5 mm
The QNix® 9500 is the best choice for measurement applications with requirements for storing measured values, archiving, creating documentation and reports, and device configurations, where simple, user-friendly operation is also desired. The device is a good choice whenever users need to store, archive, or document measured values, easily change device settings on a PC using the QN9 software, or pre-configure multiple devices. In addition, the 9500 offers a wide range of setting options, such as the ability to set limit values. The device indicates during measurement whether the set limit values have been met or not through visual signals.
12910011AA
€1,560.31
€1,560.31 tax incl.
within 1 week
Description

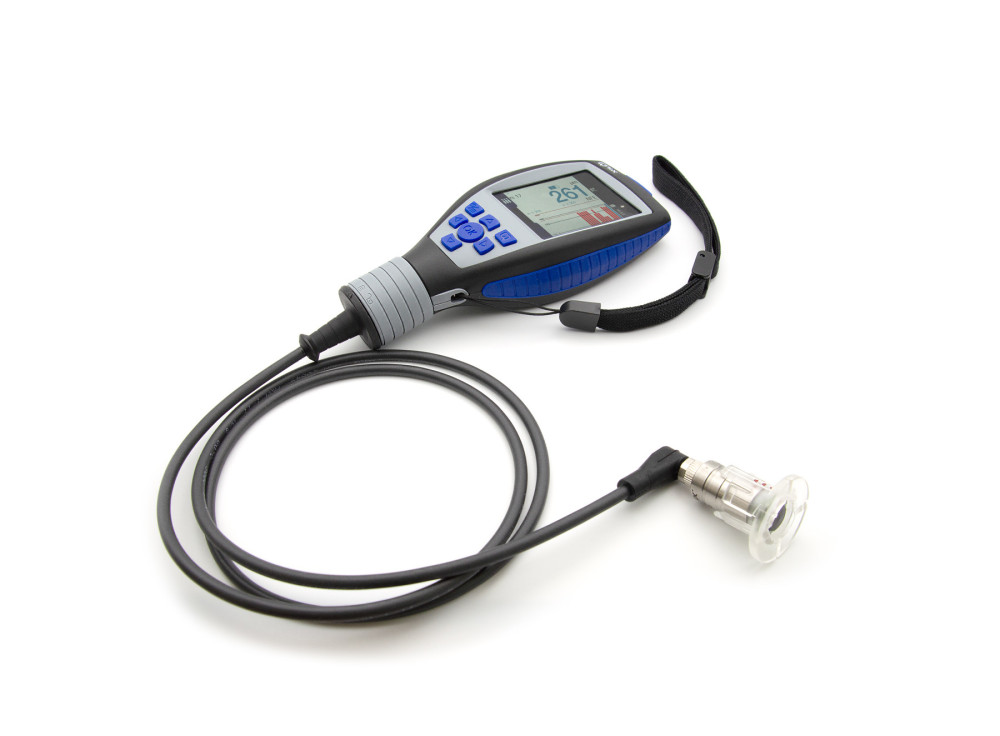

The model with a modular interchangeable probe allows the probe to be used independently – connected to the device via a cable.
Two versions of adapter cables are available:
-
Straight adapter cable (1 m) – for models QNix® 5500 / QNix® 9500
-
Adapter cable with 90° connector (1 m) – for models QNix® 5500 / QNix® 9500
When placing your order, please specify which type of cable you prefer
Safety by precision and trueness
For valid results in quality assurance
- High measuring trueness over the entire range
- Very high repeatability of measured results
- Temperature compensation directly in the sensor
- Precise measurements even on curvatures and small parts
- Easy adjustment on rough, smooth or curved substrates
Robustness and resistance
For long and reliable use, even under harsh conditions
- Fibreglass reinforced, 5 piece casing with IP65 dust and splash water protection
- Three layer protection to absorb shocks
- LCD glass providing resistance against scratches and chemicals (Level H6)
- Operational temperature from -20 °C to +70 °C
- Stainless steel probe with dust protection membrane (IP65)
Time saving by ergonomics
Fast and fatigue proof work even with continuous use
- Direct feedback from limit indicator in display and RGB-LED on the probe
- Luminosity IPS-LCD24°, colour, 600 lm, reading angle 70°
- Optimal readability of display even in direct sunlight, brightness can be adjusted automatically or manually
- Large haptic keypad and low centre of gravity
- Flip display 0°, 90°, 180°, 170°
Flexibility and expandability
Future-proof by changeable probes
- Gauge body suitable for Fe-, NFe- and dual-probes
- Quick change to cable probe
- Integrated probe and cable probe available in one device
- Increased readiness for use by quick change of probes
- Fast adaption to different measuring tasks
Comprehensibility and user-friendlines
Intuitive operation saving time and money
- Easy adjustment
- Intuitive menu guidance for the gauge and software, report by 3 clicks
- Freely assignable key for individual fast access
- Pre-configured standards
