P22559-UNC1/2
Image may not correspond to reality
  • P22559-UNC1/2
  • P22559-UNC1/2

P22559-UNC1/2

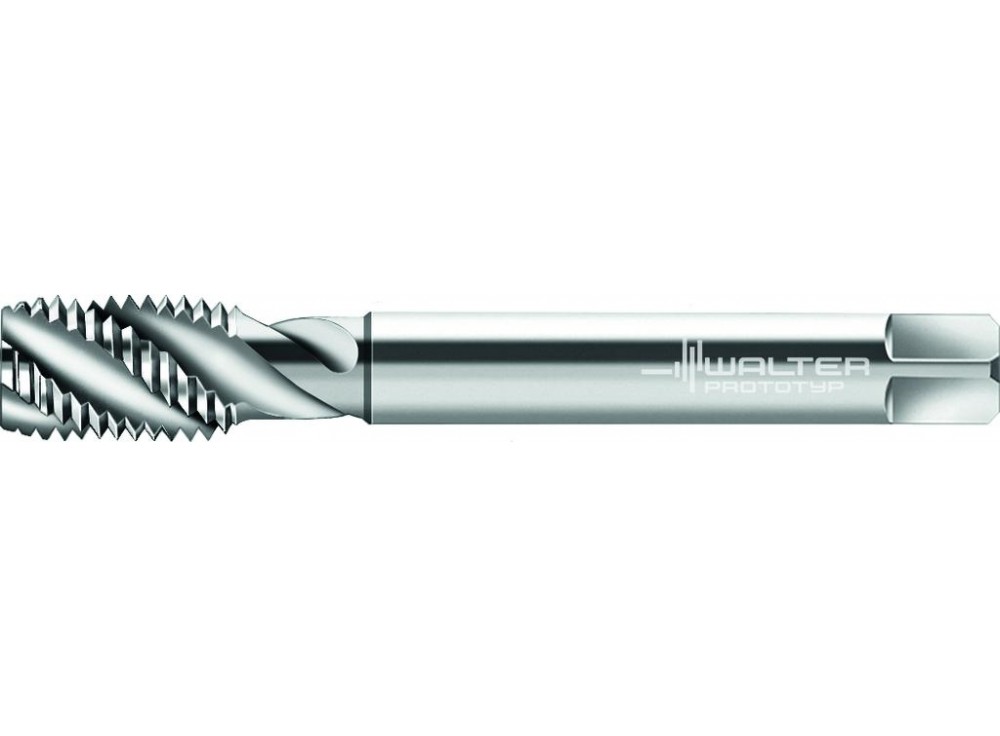

HSS-E machine taps
P22559-UNC1/2
4042446238568
Walter AG
€54.98

€54.98 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E machine taps • Paradur Xpert P • ≤3xD • UNC/3B • DIN 2184-1 • right hand flute 45° • Suitable for blind hole • UNC 1/2-13 • P=13

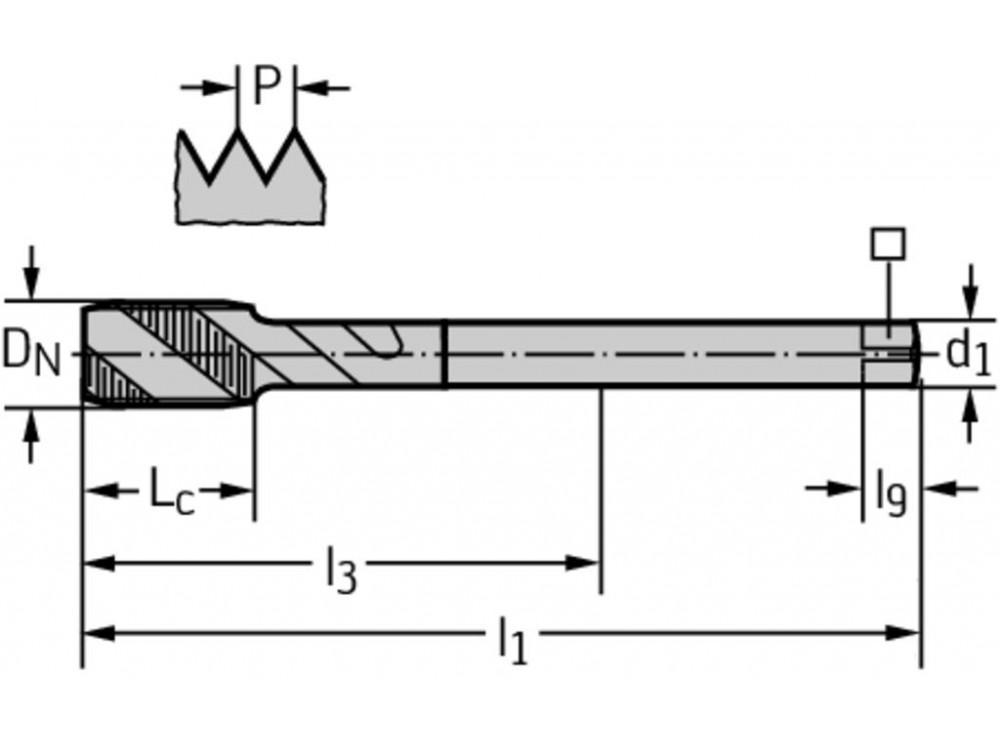

Product Details

Thread size [DNN-P]
UNC 1/2-13
Thread size [D N]
12,7 mm
Functional length [l 1]
110 mm
Cutting edge length [L c]
18 mm
Clamping width
7 mm
Driving square length [l 9]
10 mm
Number of grooves [N]
4
Connection diameter [d 1]
9 mm
Weight
0.057 kg
