P2053905-M5
Image may not correspond to reality
  • P2053905-M5
  • P2053905-M5

P2053905-M5

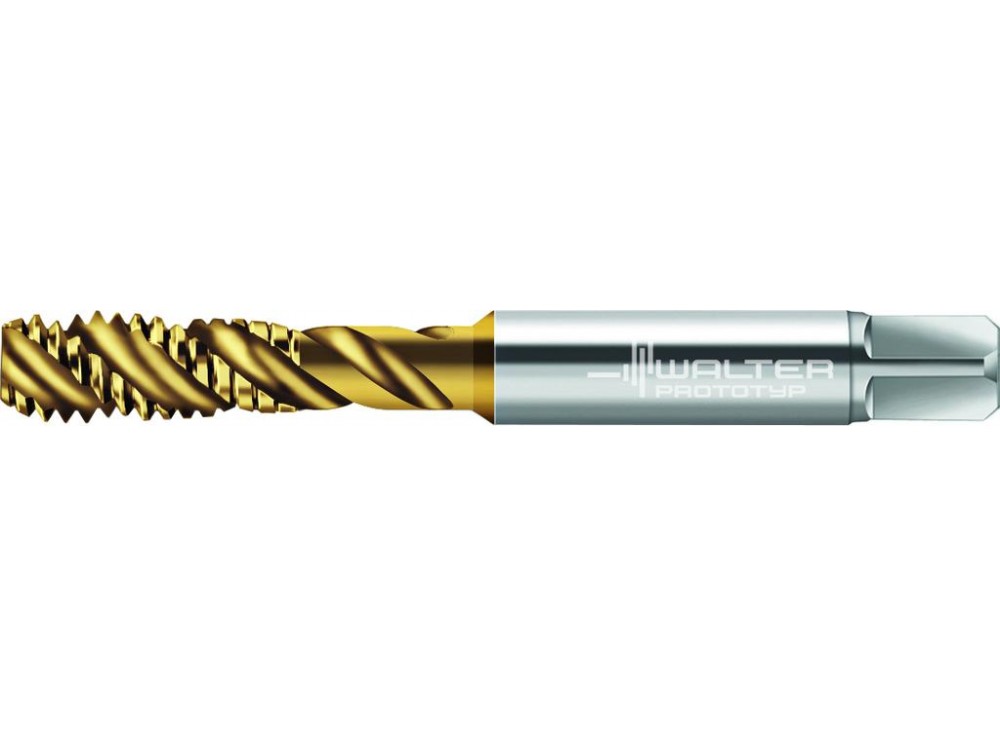

HSS-E machine taps
P2053905-M5
4042446236311
Walter AG
€32.71

€32.71 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E machine taps • Paradur Xpert P • ≤3xD • M/6G • DIN 371 • right hand flute 45° • Suitable for blind hole • TIN • M 5 • P=0,8mm

Product Details

Main application
ISO P
Additional application
ISO N
ISO O

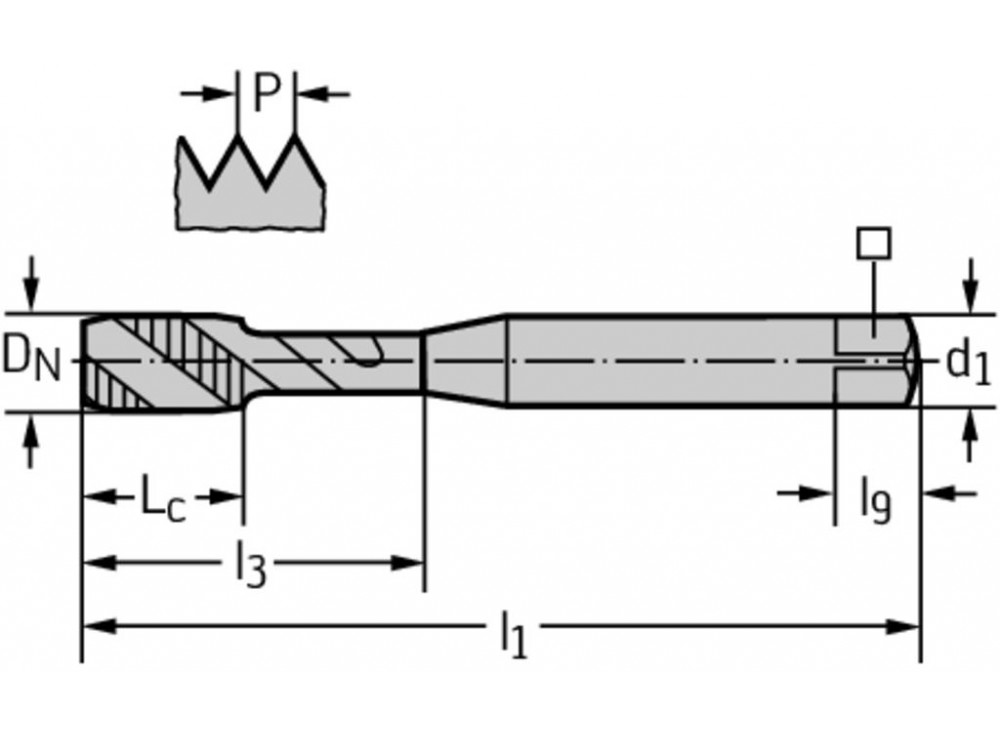

Thread size [D N]
M 5
Thread pitch [P]
0,8 mm
Functional length [l 1]
70 mm
Cutting edge length [L c]
8 mm
Clamping width
4,9 mm
Useable length [l 3]
25 mm
Driving square length [l 9]
8 mm
Number of grooves [N]
3
Connection diameter [d 1]
6 mm
Weight
0.013 kg
