P40569-M12
Image may not correspond to reality
  • P40569-M12
  • P40569-M12

P40569-M12

HSS-E machine taps
P40569-M12
4042446239626
Walter AG
€54.98

€54.98 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials
  • For thin-walled workpieces

HSS-E machine taps • Paradur Xpert P AZ • ≤3xD • M/6H • DIN 376 • right hand flute 45° • Suitable for blind hole • M 12 • P=1,75mm

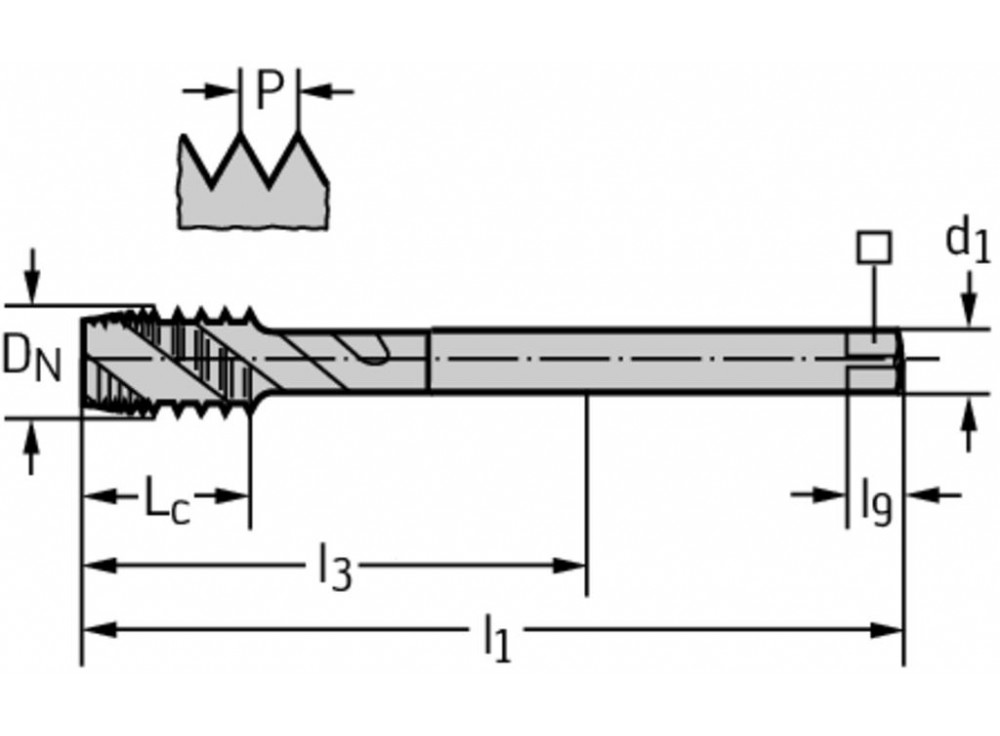

Product Details

Thread size [D N]
M 12
Thread pitch [P]
1,75 mm
Functional length [l 1]
110 mm
Cutting edge length [L c]
16 mm
Clamping width
7 mm
Useable length [l 3]
83 mm
Driving square length [l 9]
10 mm
Number of grooves [N]
3
Connection diameter [d 1]
9 mm
Weight
0.056 kg
