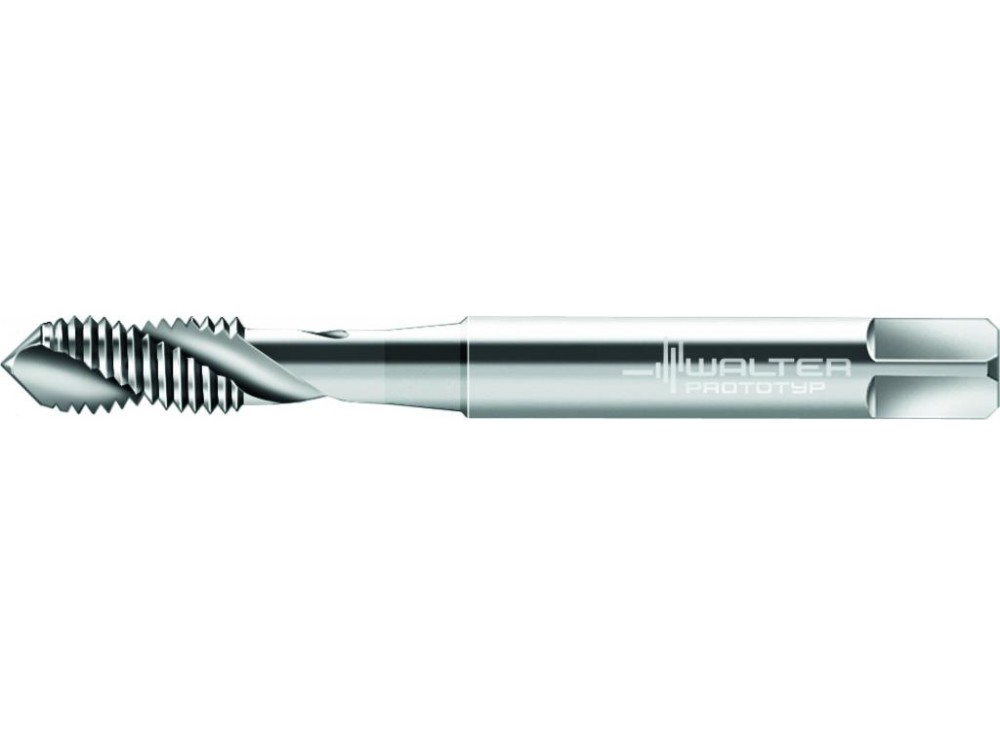

AN22516-UNC10
Image may not correspond to reality
  • AN22516-UNC10
  • AN22516-UNC10

AN22516-UNC10

HSS-E machine taps
AN22516-UNC10
4042446299590
Walter AG
€24.84

€24.84 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping aluminum alloys (Si content less than 7 %)

HSS-E machine taps • Paradur Xpert N • ≤3xD • UNC/2B • DIN/ANSI • right hand flute 35° • Suitable for blind hole • Suitable for through hole • UNC #10-24 • P=24

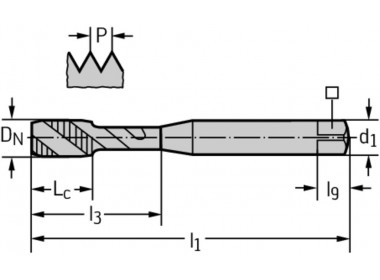

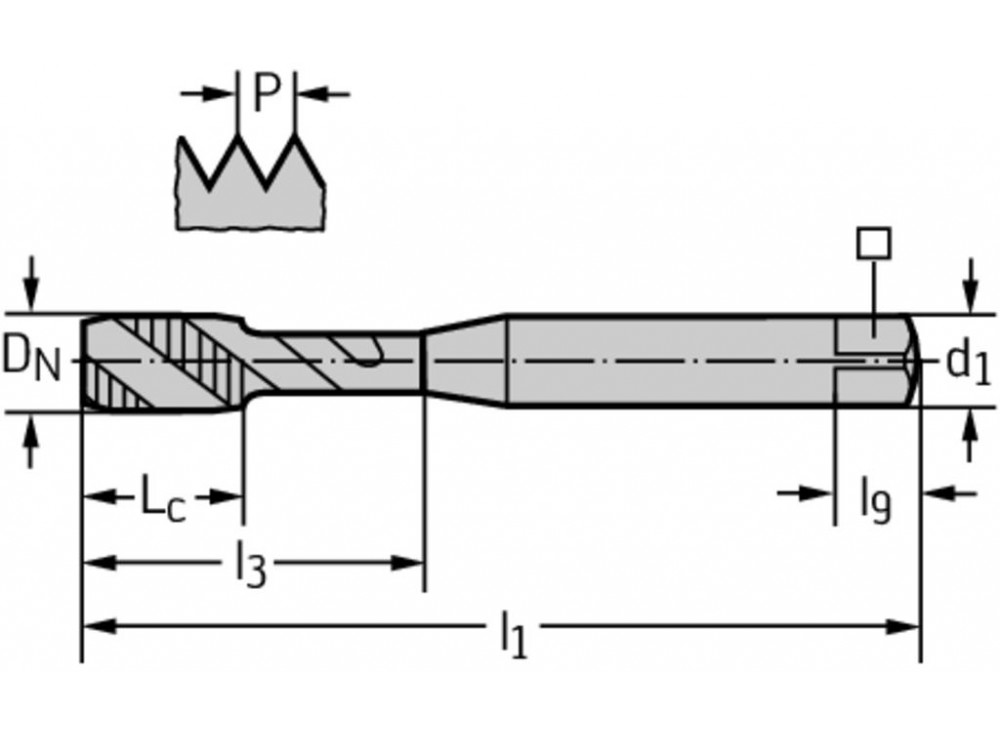

Product Details

Thread size [DNN-P]
UNC #10-24
Thread size [D N]
0,19 inch
Functional length [l 1]
2,756 inch
Cutting edge length [L c]
0,315 inch
Clamping width
0,152 inch
Useable length [l 3]
0,984 inch
Driving square length [l 9]
0,25 inch
Number of grooves [N]
2
Connection diameter [d 1]
0,194 inch
Weight
0.0289 kg
