M20513-M3.5
Image may not correspond to reality
  • M20513-M3.5
  • M20513-M3.5

M20513-M3.5

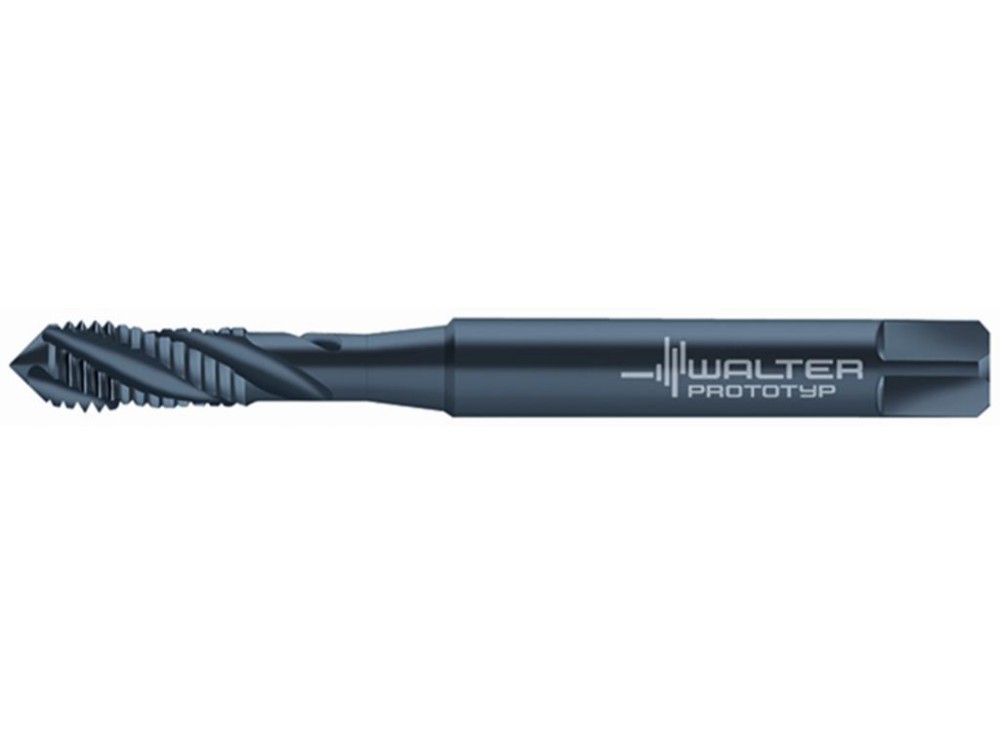

HSS-E machine taps
M20513-M3.5
4042446229825
Walter AG
€28.37

€28.37 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E machine taps • Paradur Xpert M • ≤2,5xD • M/6HX • DIN 371 • right hand flute 40° • Suitable for blind hole • VAP • M 3.5 • P=0,6mm

Product Details

Main application
ISO M
Additional application
ISO P

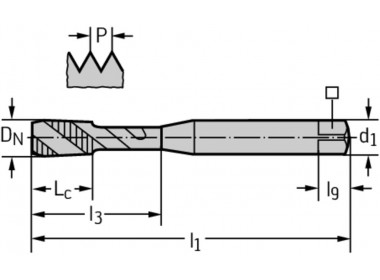

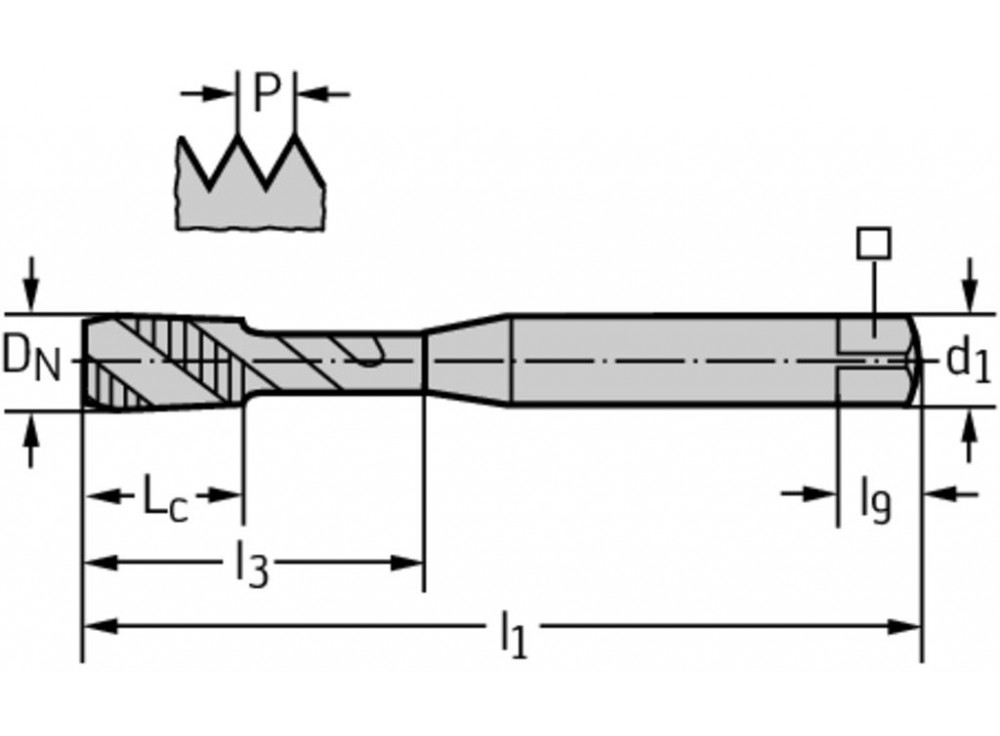

Thread size [D N]
M 3.5
Thread pitch [P]
0,6 mm
Functional length [l 1]
56 mm
Cutting edge length [L c]
6,5 mm
Clamping width
3 mm
Useable length [l 3]
20 mm
Driving square length [l 9]
6 mm
Number of grooves [N]
3
Connection diameter [d 1]
4 mm
Weight
0.006 kg
