23466-UNF5/8
Image may not correspond to reality
  • 23466-UNF5/8
  • 23466-UNF5/8

23466-UNF5/8

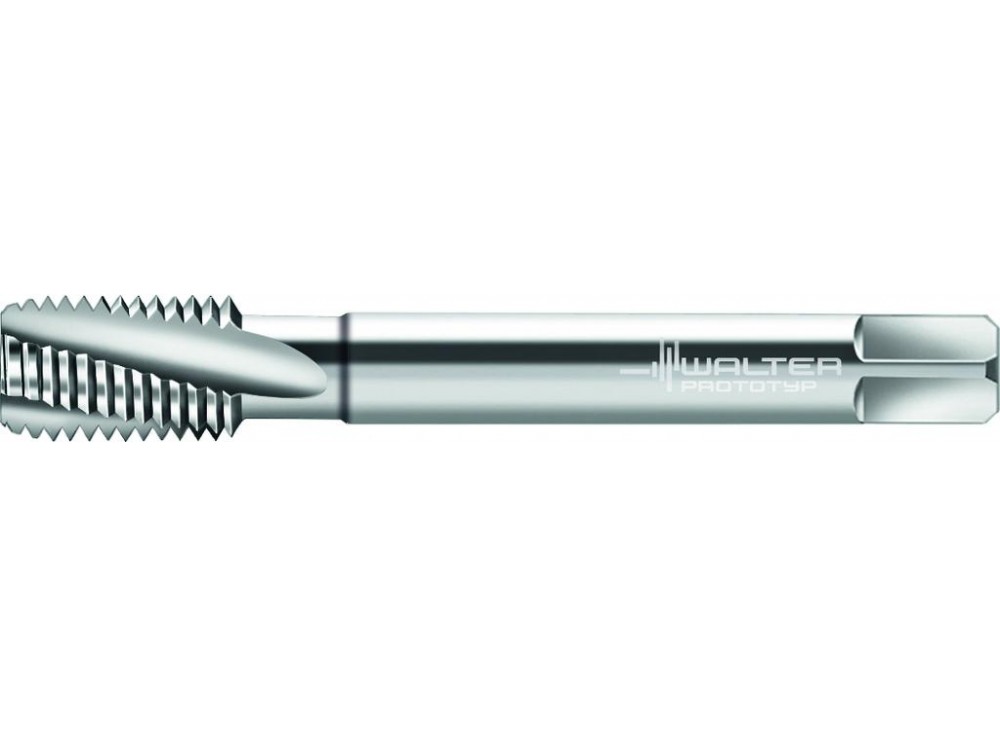

HSS-E PM machine taps
23466-UNF5/8
4042446031176
Walter AG
€102.60

€102.60 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Recommended with oil
  • For long-chipping materials

HSS-E PM machine taps • Paradur Ti • ≤2xD • UNF/2B • DIN 2184-1 • right hand flute 15° • Suitable for blind hole • UNF 5/8-18 • P=18

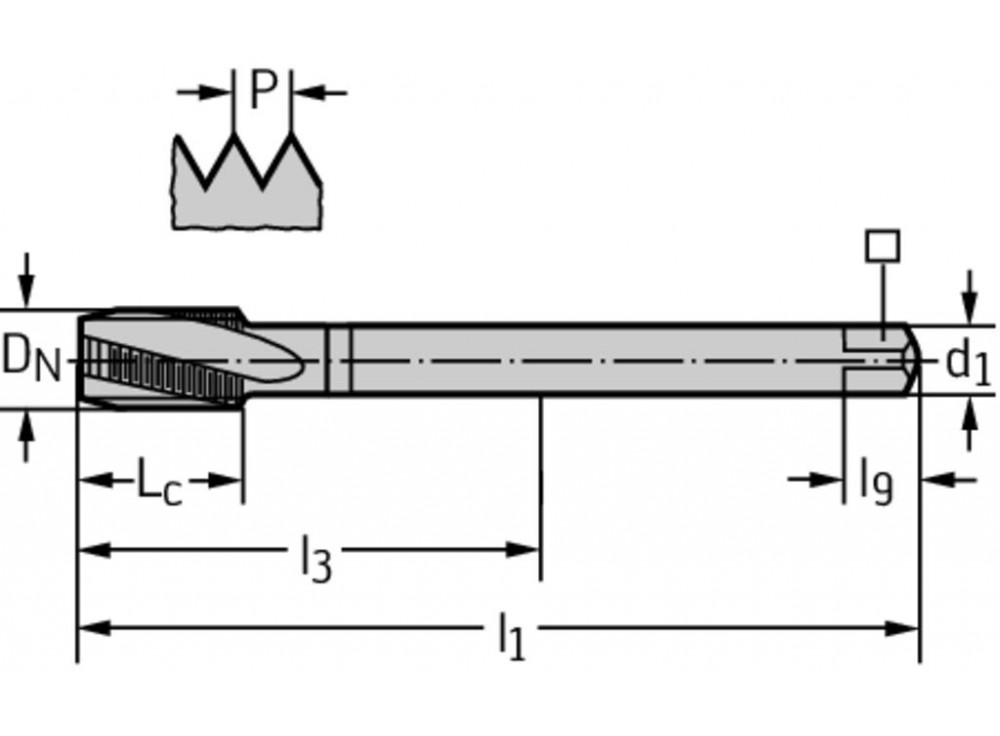

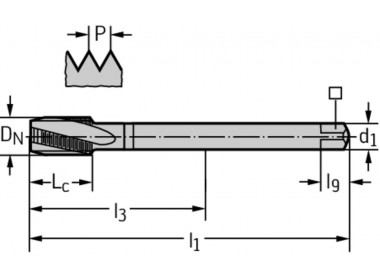

Product Details

Thread size [DNN-P]
UNF 5/8-18
Thread size [D N]
0,625 inch
Functional length [l 1]
3,937 inch
Cutting edge length [L c]
0,984 inch
Clamping width
0,354 inch
Useable length [l 3]
2,284 inch
Driving square length [l 9]
0,472 inch
Number of grooves [N]
4
Connection diameter [d 1]
0,472 inch
Weight
0.092 kg
