2041606-M2

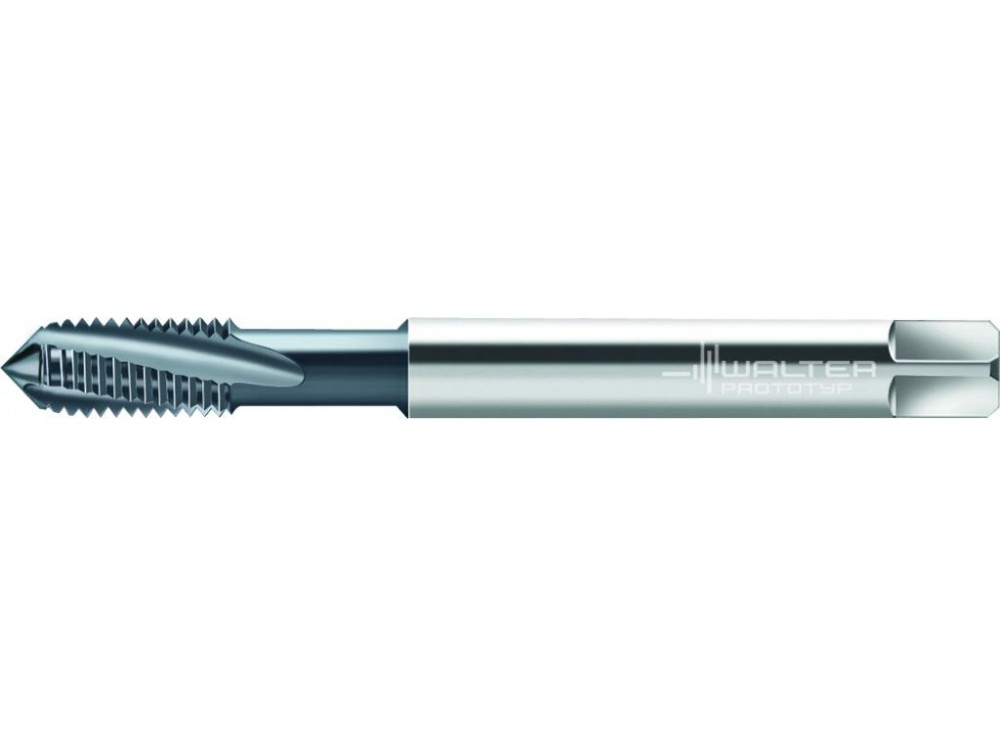

Image may not correspond to reality
  • 2041606-M2
  • 2041606-M2

2041606-M2

HSS-E PM machine taps
2041606-M2
4042446113193
Walter AG
€43.62

€43.62 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Recommended with oil
  • For long-chipping materials

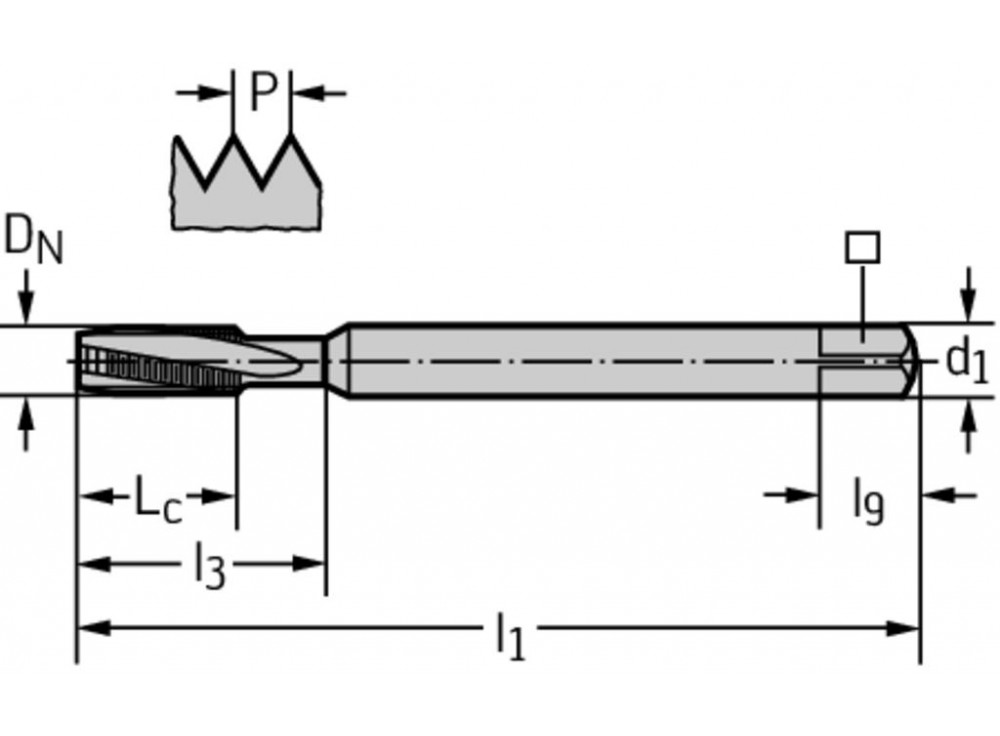

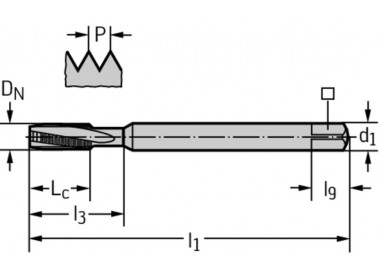

HSS-E PM machine taps • Paradur Ti • ≤2xD • M/6HX • ~DIN 371 • right hand flute 15° • Suitable for blind hole • TICN • M 2 • P=0,4mm

Product Details

Main application
ISO P
ISO S
Additional application
ISO N
Thread size [D N]
M 2
Thread pitch [P]
0,4 mm
Functional length [l 1]
45 mm
Cutting edge length [L c]
8 mm
Clamping width
2,1 mm
Useable length [l 3]
8 mm
Driving square length [l 9]
5 mm
Number of grooves [N]
3
Connection diameter [d 1]
2,8 mm
Weight
0.004 kg
