21466-M14X1.5
Image may not correspond to reality
  • 21466-M14X1.5
  • 21466-M14X1.5

21466-M14X1.5

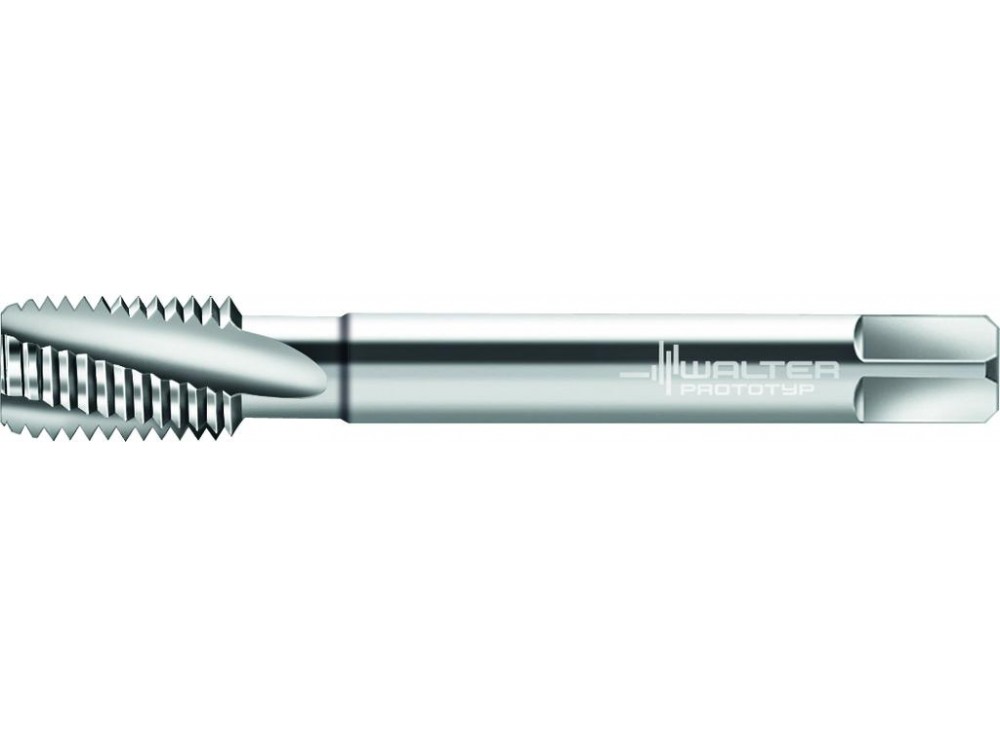

HSS-E PM machine taps
21466-M14X1.5
4042446021740
Walter AG
€95.76

€95.76 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Recommended with oil
  • For long-chipping materials

HSS-E PM machine taps • Paradur Ti • ≤2xD • MF/6HX • DIN 374 • right hand flute 15° • Suitable for blind hole • MF 14x1.5 • P=1,5mm

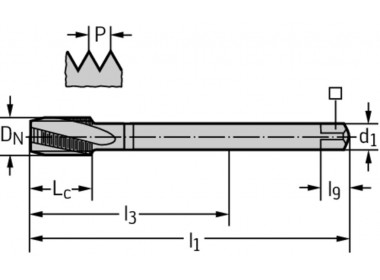

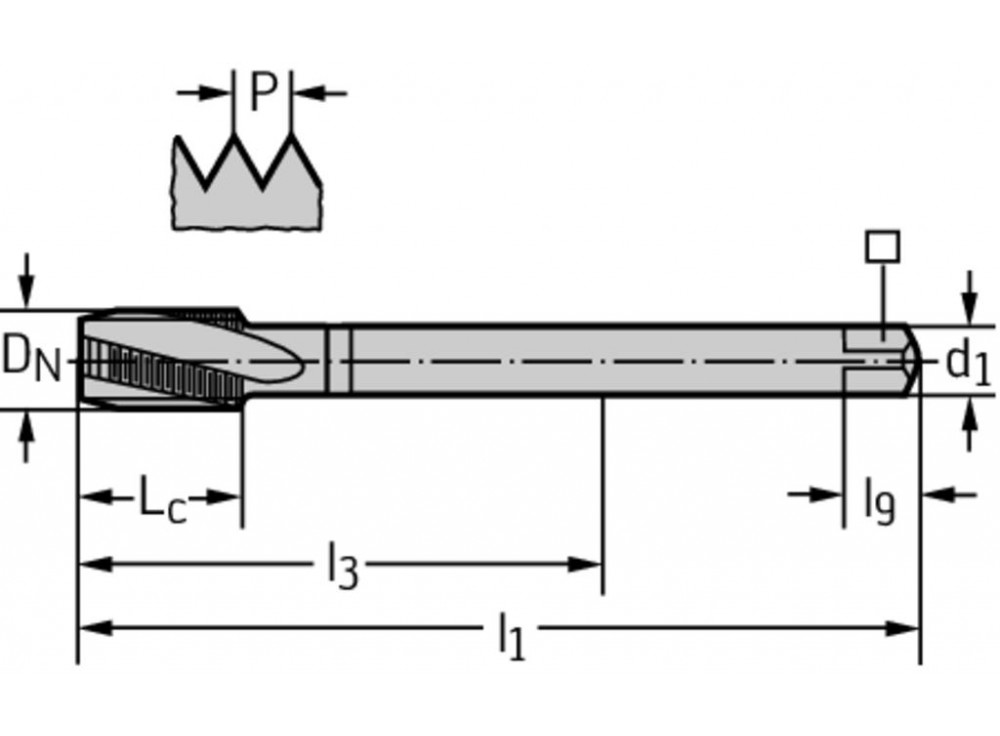

Product Details

Thread size [D N]
MF 14x1.5
Thread pitch [P]
1,5 mm
Functional length [l 1]
100 mm
Cutting edge length [L c]
21 mm
Clamping width
9 mm
Useable length [l 3]
71 mm
Driving square length [l 9]
12 mm
Number of grooves [N]
4
Connection diameter [d 1]
11 mm
Weight
0.075 kg
