224102-UNC5/16
Image may not correspond to reality
  • 224102-UNC5/16
  • 224102-UNC5/16

224102-UNC5/16

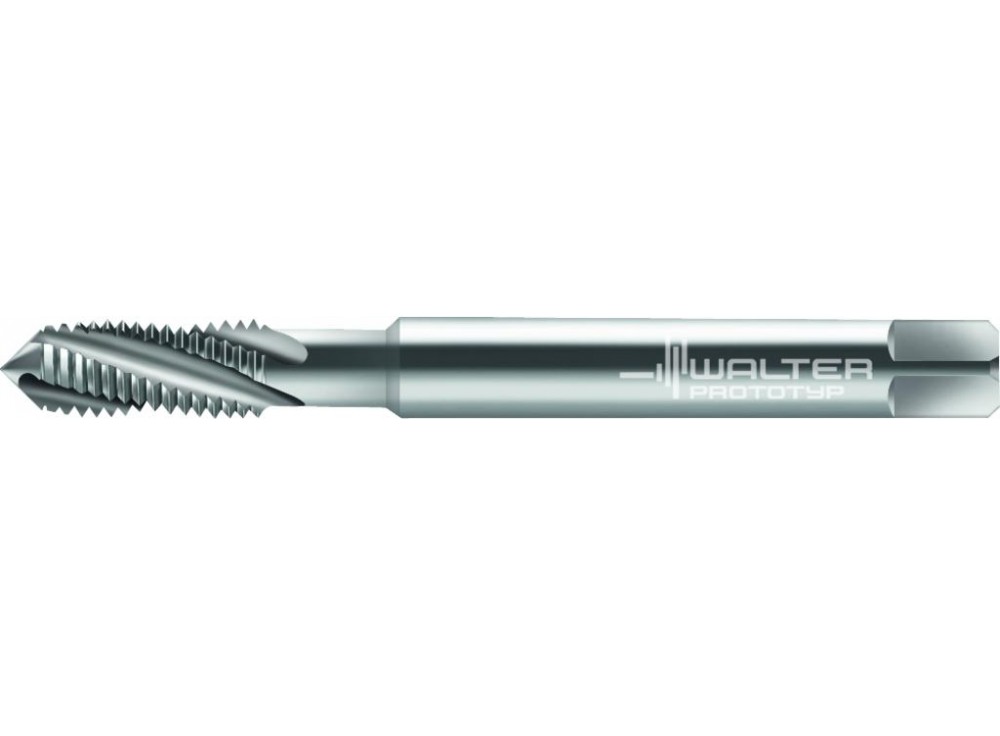

HSS-E PM machine taps
224102-UNC5/16
4042446026622
Walter AG
€47.88

€47.88 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E PM machine taps • Paradur Ni • ≤1,5xD • UNC/2B • ~DIN 2184-1 • right hand flute 25° • Suitable for blind hole • UNC 5/16-18 • P=18

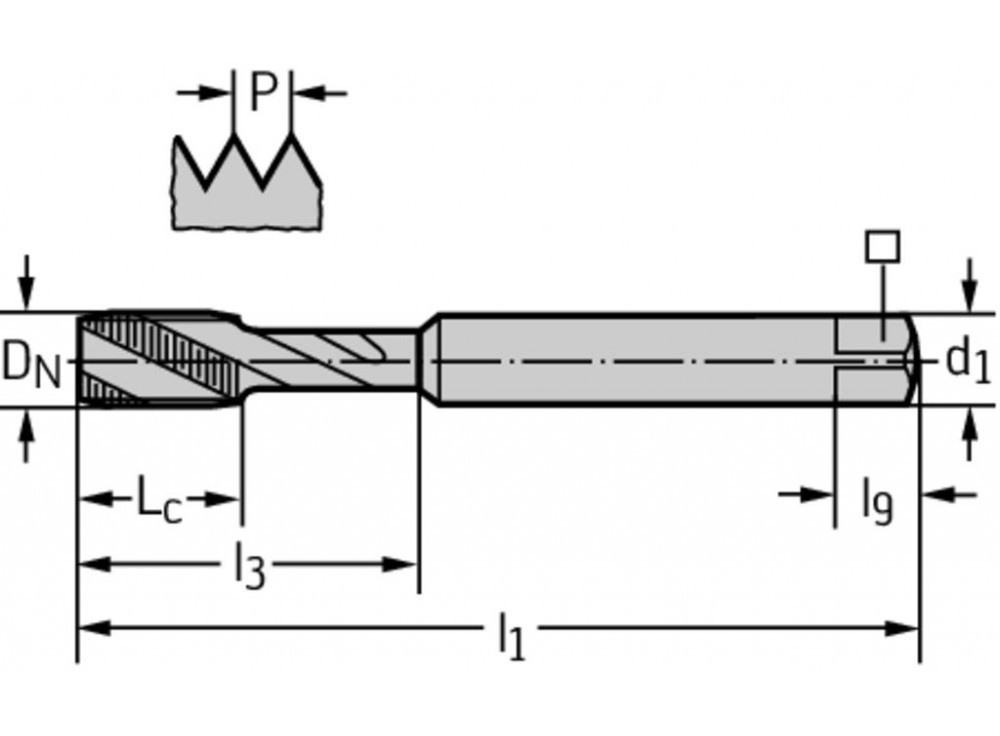

Product Details

Thread size [DNN-P]
UNC 5/16-18
Thread size [D N]
7,938 mm
Functional length [l 1]
90 mm
Cutting edge length [L c]
18 mm
Clamping width
6,2 mm
Useable length [l 3]
29,5 mm
Driving square length [l 9]
9 mm
Number of grooves [N]
3
Connection diameter [d 1]
8 mm
Weight
0.035 kg
