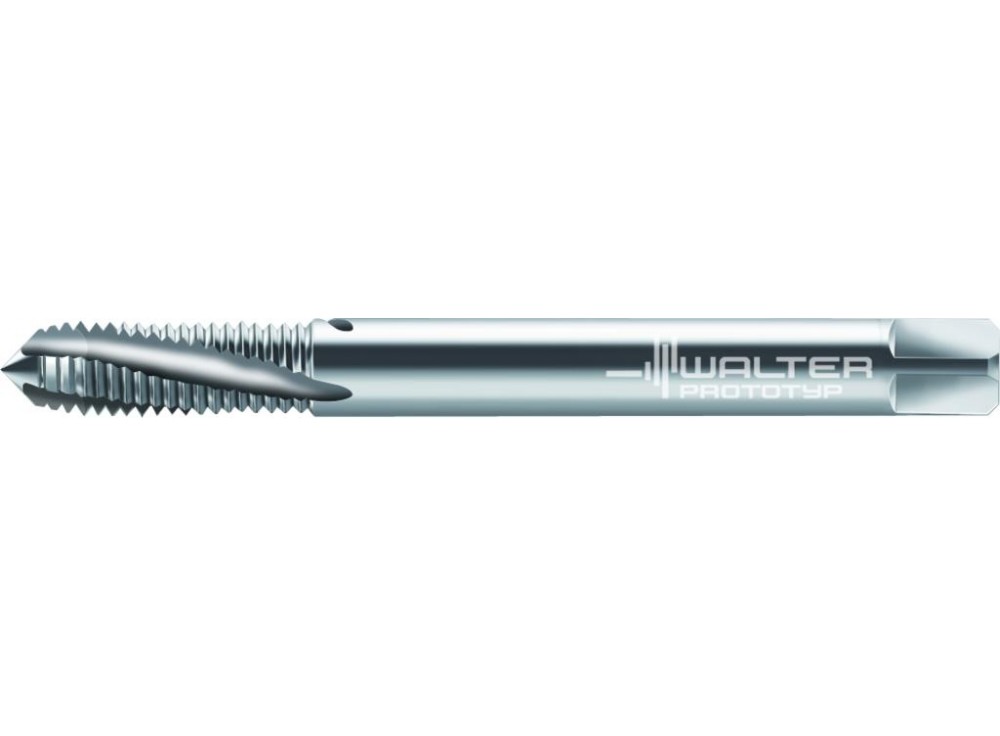

234101-UNJF5/16
Image may not correspond to reality
  • 234101-UNJF5/16
  • 234101-UNJF5/16

234101-UNJF5/16

HSS-E PM machine taps
234101-UNJF5/16
4042446030636
Walter AG
€95.00

€95.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • External diameter, rounded
  • For long- and short-chipping materials

HSS-E PM machine taps • Paradur Ni 10 • ≤1,5xD • UNJF/3B • ~DIN 2184-1 • right hand flute 10° • Suitable for blind hole • UNJF 5/16-24 • P=24

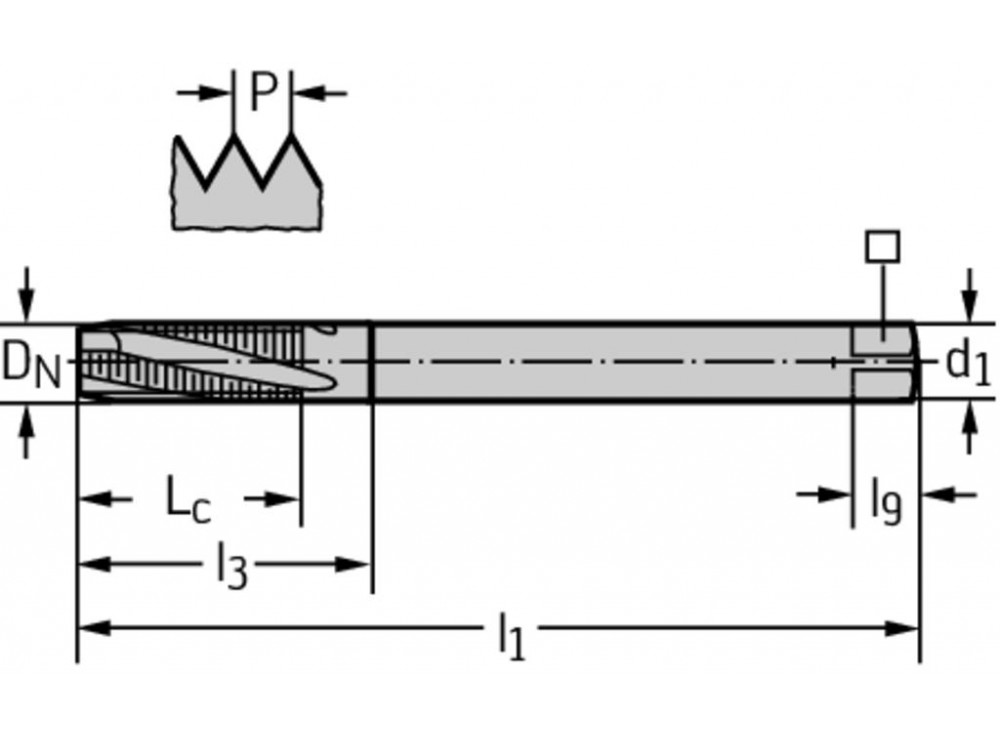

Product Details

Thread size [DNN-P]
UNJF 5/16-24
Thread size [D N]
7,938 mm
Functional length [l 1]
90 mm
Cutting edge length [L c]
20 mm
Clamping width
6,2 mm
Driving square length [l 9]
9 mm
Number of grooves [N]
3
Connection diameter [d 1]
8 mm
Weight
0.037 kg
