224101-UNJC8
Image may not correspond to reality
  • 224101-UNJC8
  • 224101-UNJC8

224101-UNJC8

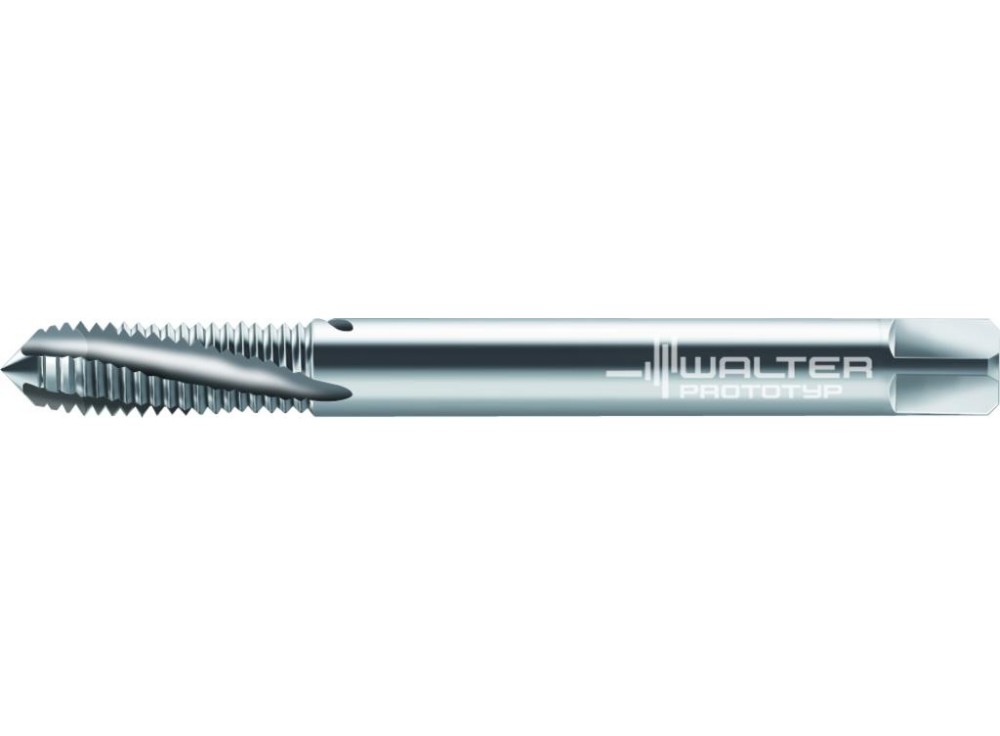

HSS-E PM machine taps
224101-UNJC8
4042446026547
Walter AG
€71.29

€71.29 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • External diameter, rounded
  • For long- and short-chipping materials

HSS-E PM machine taps • Paradur Ni 10 • ≤1,5xD • UNJC/3B • ~DIN 2184-1 • right hand flute 10° • Suitable for blind hole • UNJC #8-32 • P=32

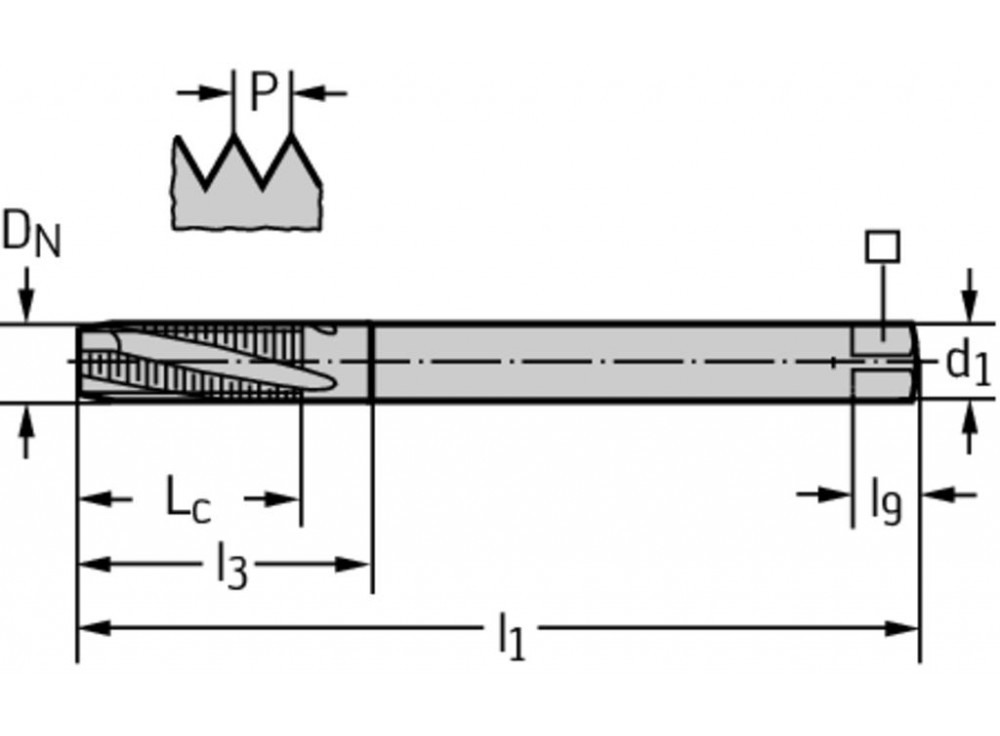

Product Details

Thread size [DNN-P]
UNJC #8-32
Thread size [D N]
4,166 mm
Functional length [l 1]
63 mm
Cutting edge length [L c]
11 mm
Clamping width
3,4 mm
Driving square length [l 9]
6 mm
Number of grooves [N]
3
Connection diameter [d 1]
4,5 mm
Weight
0.009 kg
