224101-UNJC6
Image may not correspond to reality
  • 224101-UNJC6
  • 224101-UNJC6

224101-UNJC6

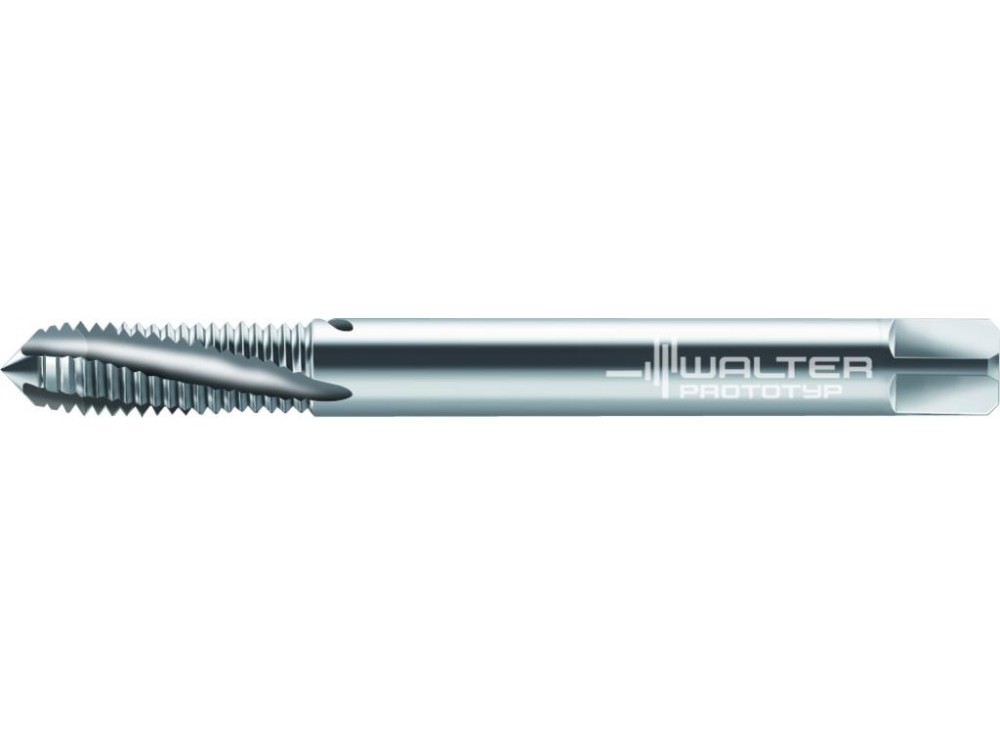

HSS-E PM machine taps
224101-UNJC6
4042446026530
Walter AG
€65.66

€65.66 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • External diameter, rounded
  • For long- and short-chipping materials

HSS-E PM machine taps • Paradur Ni 10 • ≤1,5xD • UNJC/3B • ~DIN 2184-1 • right hand flute 10° • Suitable for blind hole • UNJC #6-32 • P=32

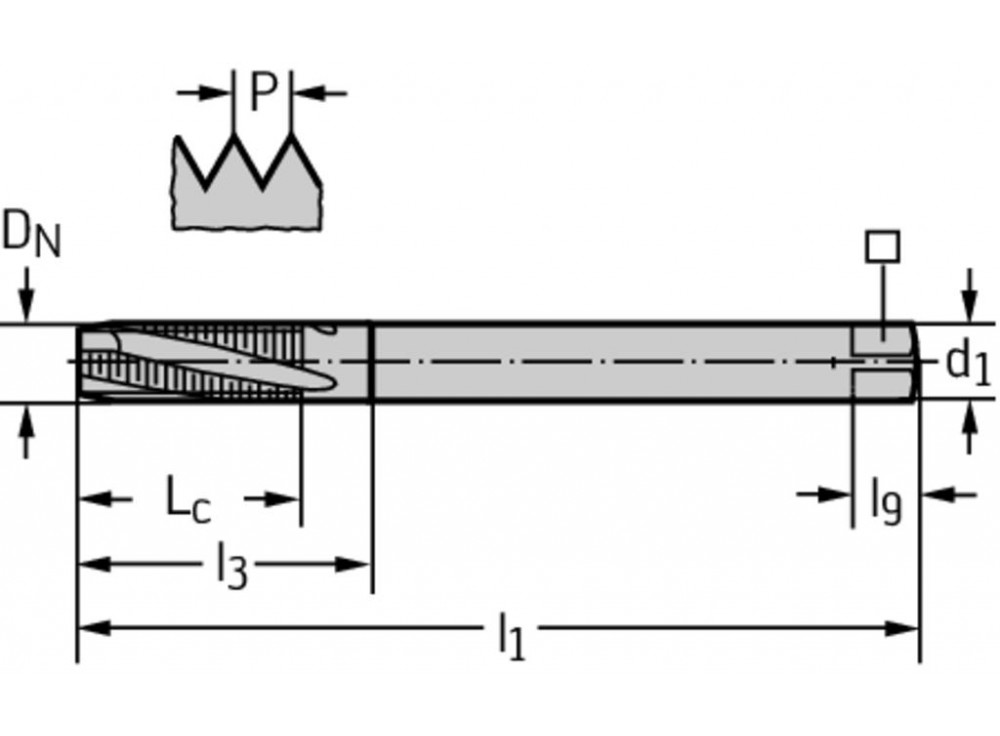

Product Details

Thread size [DNN-P]
UNJC #6-32
Thread size [D N]
3,505 mm
Functional length [l 1]
56 mm
Cutting edge length [L c]
10 mm
Clamping width
3 mm
Driving square length [l 9]
6 mm
Number of grooves [N]
3
Connection diameter [d 1]
4 mm
Weight
0.007 kg
