8041006-M5
Image may not correspond to reality
  • 8041006-M5
  • 8041006-M5

8041006-M5

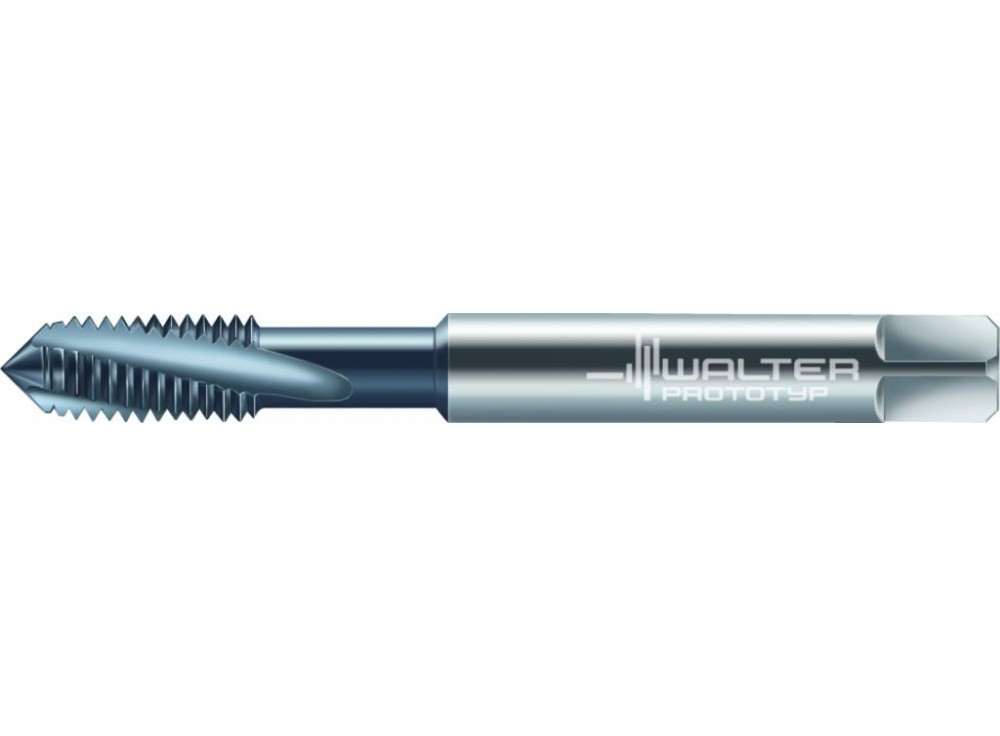

Solid carbide machine taps
8041006-M5
4042446043377
Walter AG
€177.84

€177.84 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long- and short-chipping materials

Solid carbide machine taps • Paradur N • ≤1,5xD • M/6H • ~DIN 371 • right hand flute 15° • Suitable for blind hole • TICN • M 5 • P=0,8mm

Product Details

Main application
ISO K
ISO N
Additional application
ISO O

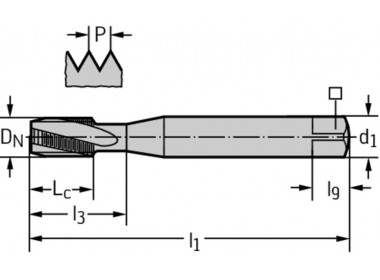

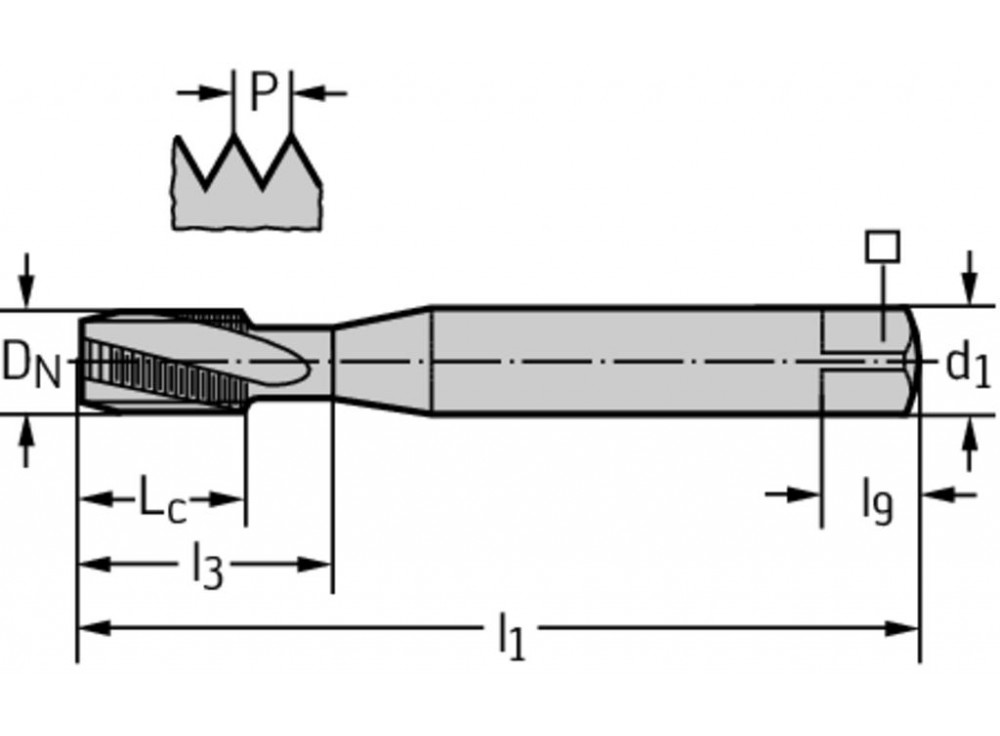

Thread size [D N]
M 5
Thread pitch [P]
0,8 mm
Functional length [l 1]
70 mm
Cutting edge length [L c]
16 mm
Clamping width
4,9 mm
Useable length [l 3]
16 mm
Driving square length [l 9]
8 mm
Number of grooves [N]
3
Connection diameter [d 1]
6 mm
Weight
0.028 kg
