804101-M8
Image may not correspond to reality
  • 804101-M8
  • 804101-M8

804101-M8

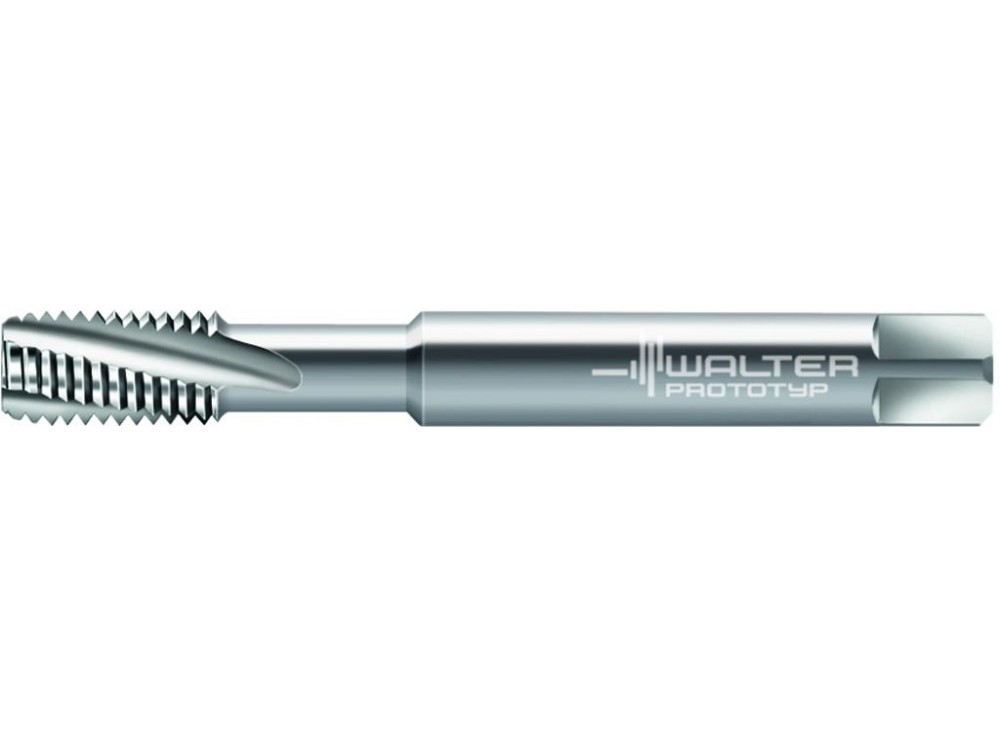

Solid carbide machine taps
804101-M8
4042446043490
Walter AG
€311.36

€311.36 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long- and short-chipping materials

Solid carbide machine taps • Paradur N • ≤3,5xD • M/6H • DIN 371 • right hand flute 15° • Suitable for blind hole • M 8 • P=1,25mm

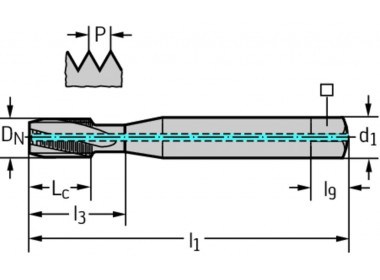

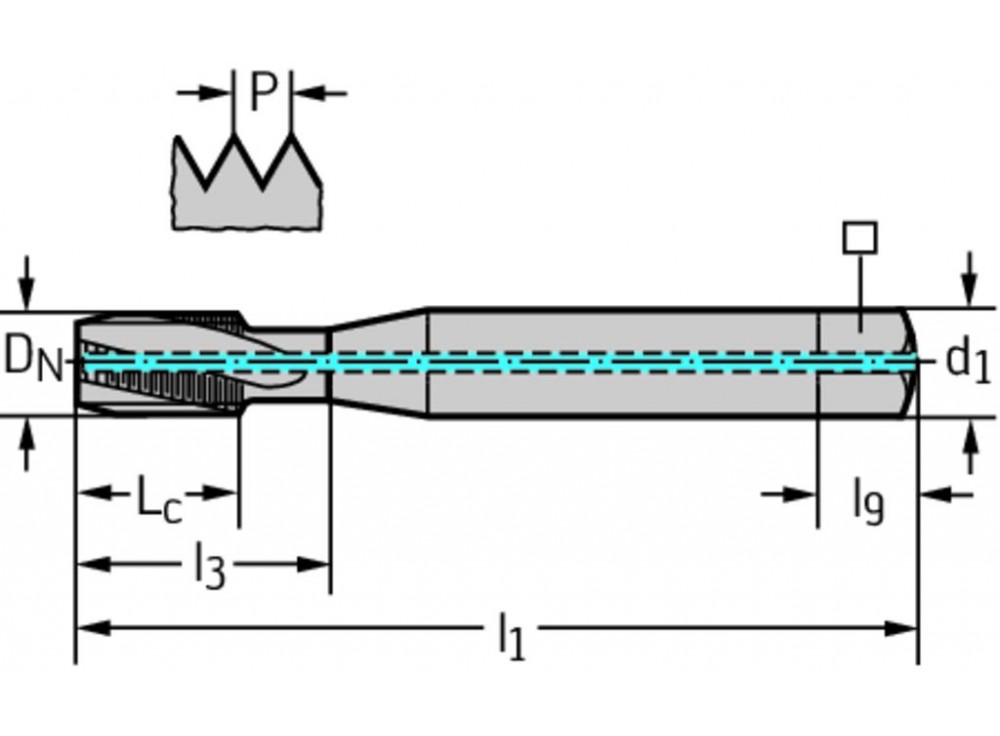

Product Details

Thread size [D N]
M 8
Thread pitch [P]
1,25 mm
Functional length [l 1]
90 mm
Cutting edge length [L c]
22 mm
Clamping width
6,2 mm
Useable length [l 3]
35 mm
Driving square length [l 9]
9 mm
Number of grooves [N]
3
Connection diameter [d 1]
8 mm
Weight
0.061 kg
