8041056-M10
Image may not correspond to reality
  • 8041056-M10
  • 8041056-M10

8041056-M10

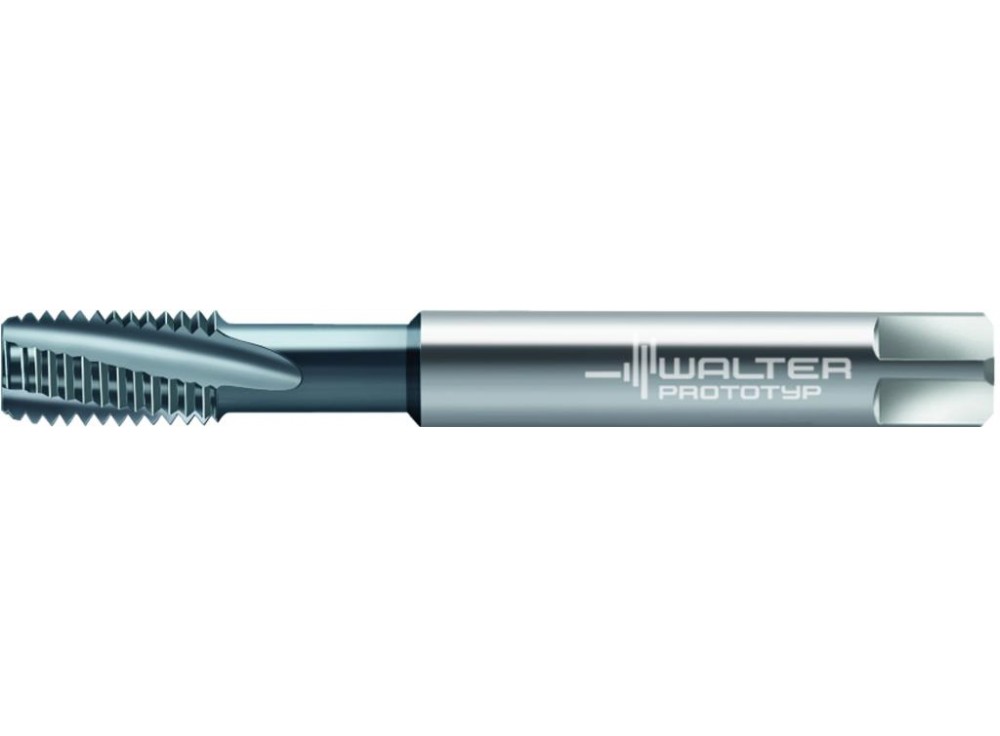

Solid carbide machine taps
8041056-M10
4042446194239
Walter AG
€381.42

€381.42 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long- and short-chipping materials

Solid carbide machine taps • Paradur HSC • ≤2xD • M/6HX • DIN 371 • right hand flute 15° • Suitable for blind hole • TICN • M 10 • P=1,5mm

Product Details

Main application
ISO H
ISO K
ISO P

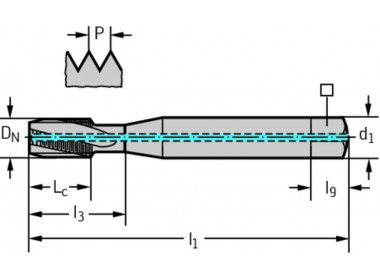

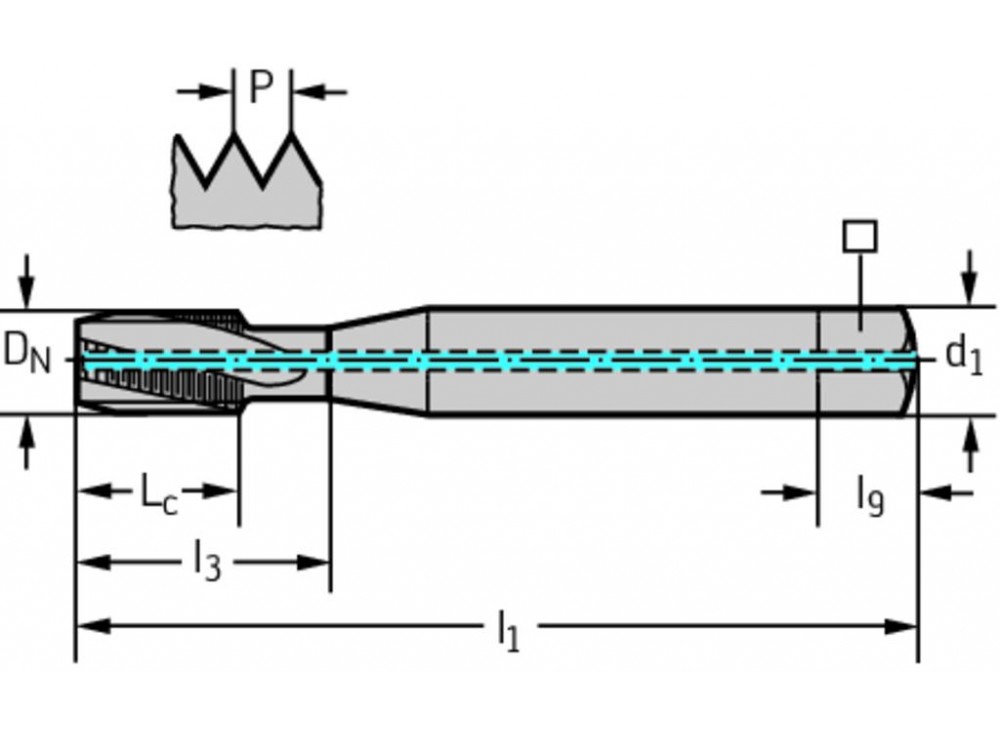

Thread size [D N]
M 10
Thread pitch [P]
1,5 mm
Functional length [l 1]
100 mm
Cutting edge length [L c]
25 mm
Clamping width
8 mm
Useable length [l 3]
39 mm
Driving square length [l 9]
11 mm
Number of grooves [N]
3
Connection diameter [d 1]
10 mm
Weight
0.092 kg
