24361-G3/8

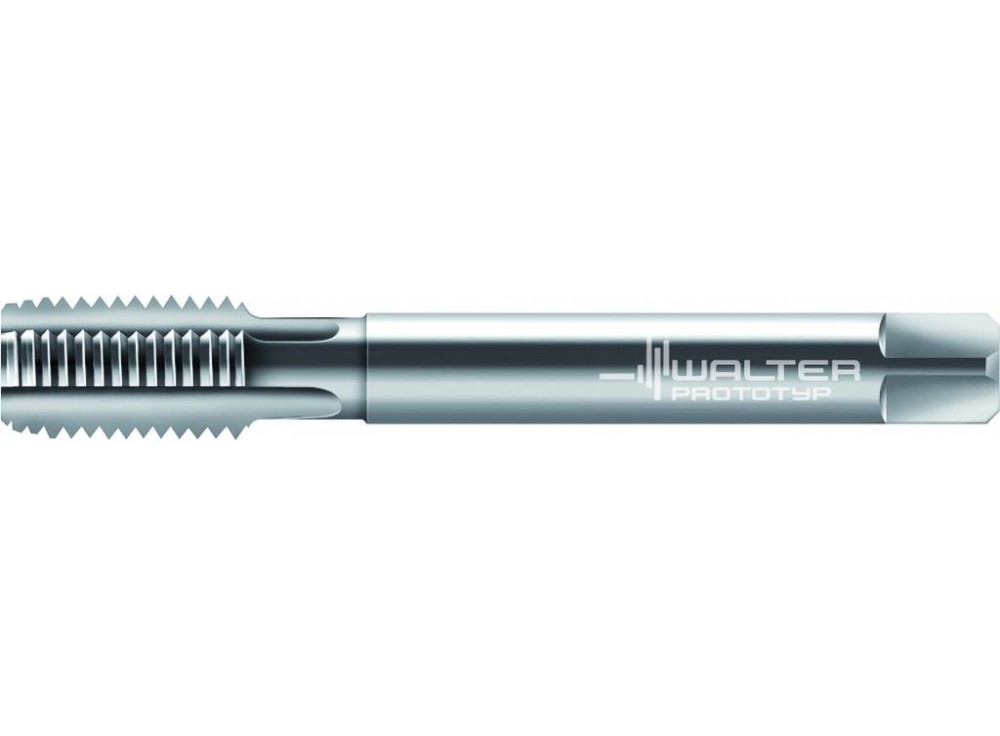

Image may not correspond to reality
  • 24361-G3/8
  • 24361-G3/8

24361-G3/8

HSS-E machine taps
24361-G3/8
4042446033224
Walter AG
€60.65

€60.65 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long- and short-chipping materials

HSS-E machine taps • Paradur H • ≤1,5xD • G/NORMAL • DIN 5156 • neutral (straight) flute 0° • Suitable for blind hole • Suitable for through hole • G 3/8-19 • P=19

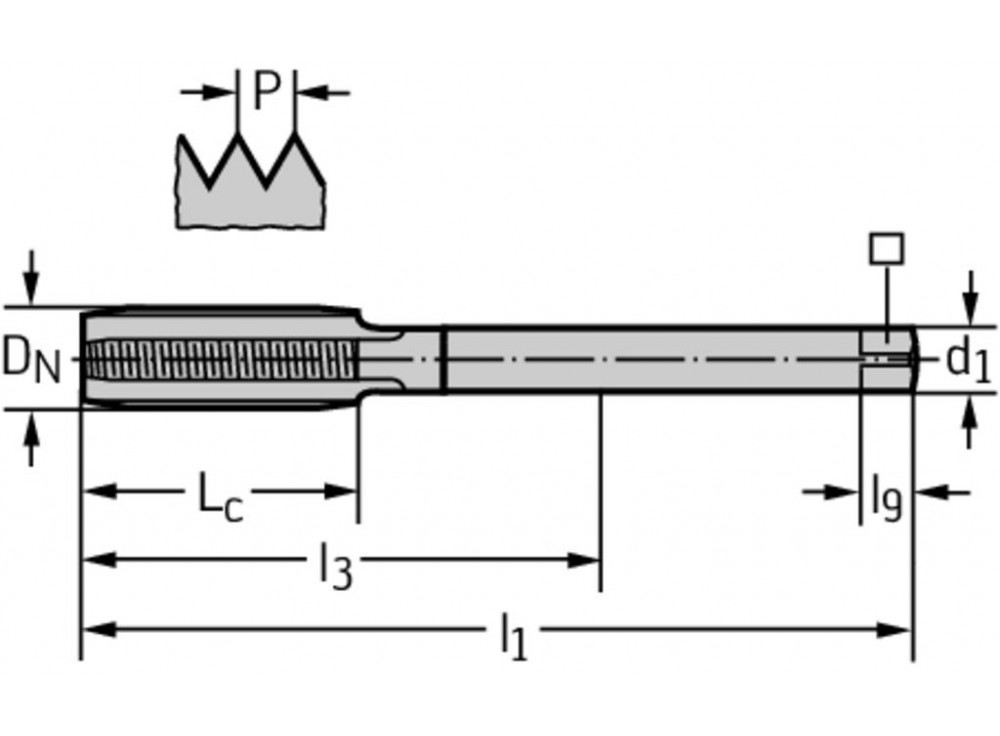

Product Details

Thread size [DNN-P]
G 3/8-19
Thread size [D N]
16,662 mm
Threads per inch
19
Functional length [l 1]
100 mm
Cutting edge length [L c]
21 mm
Clamping width
9 mm
Useable length [l 3]
58 mm
Driving square length [l 9]
12 mm
Number of grooves [N]
4
Connection diameter [d 1]
12 mm
Weight
0.092 kg
