8036310-M12

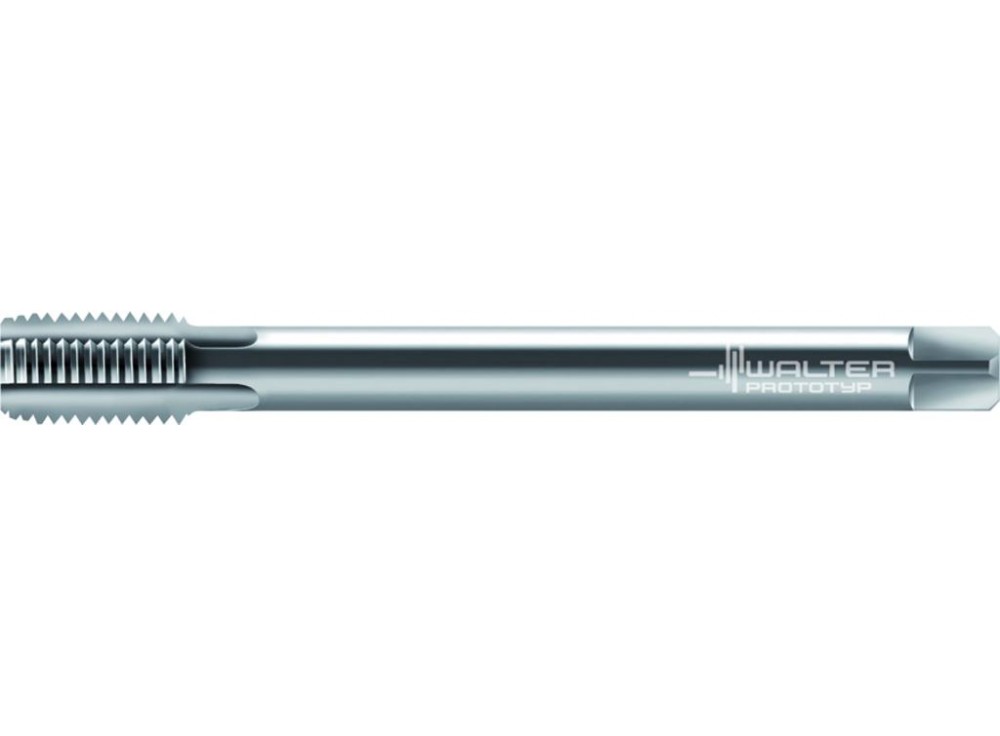

Solid carbide machine taps
8036310-M12
4042446168025
Walter AG
€351.00

€351.00 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • Suitable coating according to requirements
  • For short-chipping materials

Solid carbide machine taps • Paradur Engine • ≤3xD • M/6HX • ~DIN 376 L • neutral (straight) flute 0° • Suitable for blind hole • M 12 • P=1,75mm

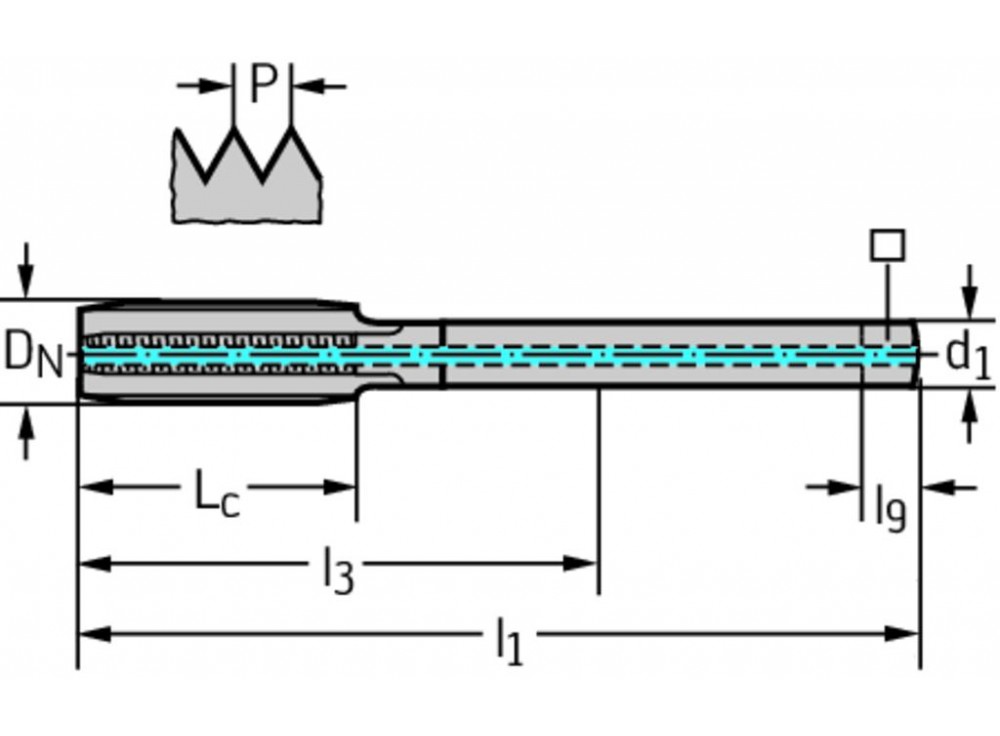

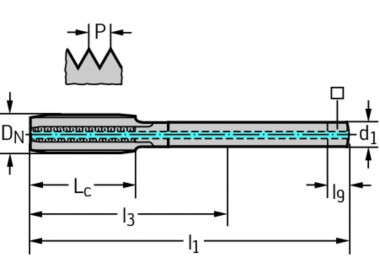

Product Details

Thread size [D N]
M 12
Thread pitch [P]
1,75 mm
Functional length [l 1]
140 mm
Cutting edge length [L c]
23 mm
Clamping width
7 mm
Useable length [l 3]
113 mm
Driving square length [l 9]
10 mm
Number of grooves [N]
4
Connection diameter [d 1]
9 mm
Weight
0.129 kg
