EP2351302-UNF4
Image may not correspond to reality
  • EP2351302-UNF4
  • EP2351302-UNF4

EP2351302-UNF4

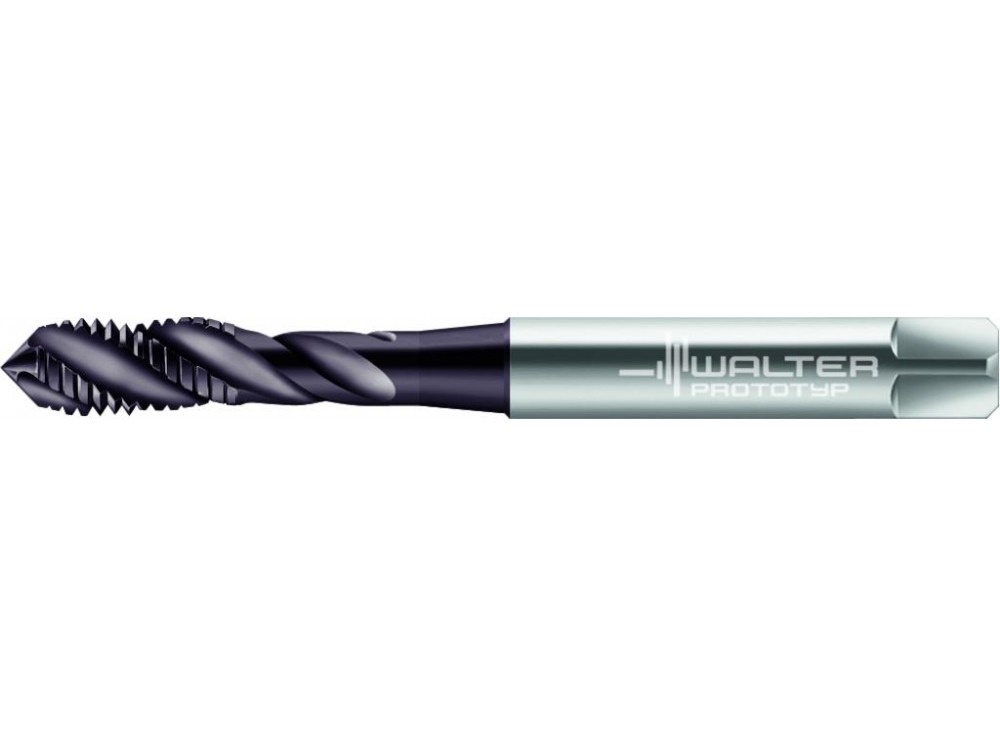

HSS-E PM machine taps
EP2351302-UNF4
4042446240981
Walter AG
€48.79

€48.79 tax incl.

within 1 week
Quantity
in stock at the supplier

Description

  • For long-chipping materials

HSS-E PM machine taps • Paradur Eco Plus • ≤3xD • UNF/2B • ~DIN 2184-1 • right hand flute 45° • Suitable for blind hole • THL • UNF #4-48 • P=48

Product Details

Main application
ISO K
ISO M
ISO N
ISO P

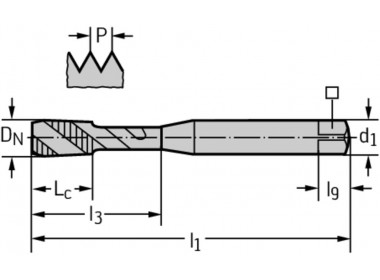

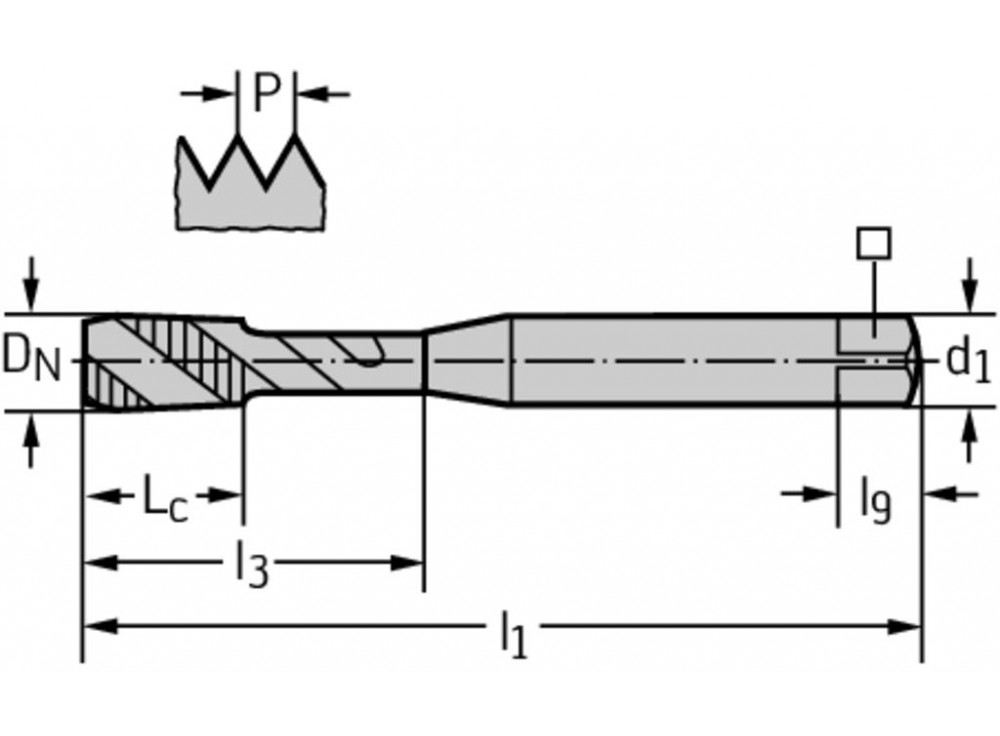

Thread size [DNN-P]
UNF #4-48
Thread size [D N]
2,845 mm
Functional length [l 1]
56 mm
Cutting edge length [L c]
6 mm
Clamping width
2,7 mm
Useable length [l 3]
11 mm
Driving square length [l 9]
6 mm
Number of grooves [N]
3
Connection diameter [d 1]
3,5 mm
Weight
0.006 kg
